Why Choose the Finder 80.61.0.240.0000T Timer Relay?

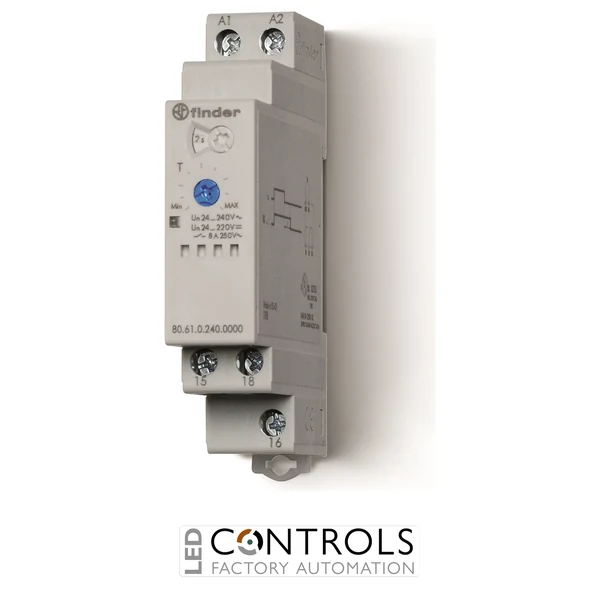

The Finder 80.61.0.240.0000T is a compact and reliable multivoltage off-delay timer relay designed for precise time-controlled switching in industrial automation, railway equipment and electrical control systems. As part of the Finder 80 Series modular timer relay range, this model provides a dedicated power-off delay function, allowing connected equipment to remain switched for a predetermined period after the supply voltage is removed.
This timer relay features a single changeover (SPDT) contact rated at 8 A, an adjustable timing range of 0.05–180 s and a wide 24–240 V AC/DC supply voltage range. Its power-off delay operation is particularly useful in applications requiring controlled shutdown sequences, delayed equipment deactivation and timed switching without a separate external control signal.
The Finder 80.61.0.240.0000T is a railway-oriented version of the 80.61 timer relay, designed for demanding electrical installations and applications involving vibration and environmental requirements. Its compact 17.5 mm-wide DIN rail mounting format, LED status indication and screw terminal connections make it suitable for installation in railway electrical cabinets, industrial control panels and automated machinery.
Key Advantages
- Compact off-delay timer relay designed for industrial automation and railway applications.
- 24–240 V AC/DC universal supply provides flexibility across different electrical control systems.
- Adjustable 0.05–180 s timing range for short-duration switching delays.
- True power-off delay functionality maintains the timed output after the supply voltage is removed.
- 8 A changeover relay contact suitable for a wide range of industrial control loads.
- Single-function operation simplifies configuration and commissioning.
- Railway-oriented design with compliance to EN 45545-2 and EN 61373 requirements.
- Integrated LED status indication assists with operational monitoring.
- Compact 17.5 mm module width helps maximise available control cabinet space.
- 35 mm DIN rail mounting supports straightforward installation.
- Screw terminal connections provide secure and reliable wiring.
- Wide -25 to +55 °C operating temperature range supports demanding installations.
Key Features
- Finder 80 Series modular timer relay.
- 80.61 single-function power-off delay configuration.
- 24–240 V AC supply voltage.
- 24–240 V DC supply voltage.
- 0.05–180 s adjustable timing range.
- One changeover contact (1 CO / SPDT).
- 8 A rated contact current.
- 250 V AC rated switching voltage.
- Power-off delay (BI) timing function.
- Adjustable timing control using a screwdriver-operated setting.
- LED operating status indication.
- Railway application variant with enhanced suitability for transport-related electrical systems.
- Compliance with EN 45545-2 railway fire protection requirements.
- Compliance with EN 61373 railway shock and vibration requirements.
- IP20 protection rating for installation inside suitable electrical enclosures.
- 17.5 mm-wide modular housing.
- 35 mm DIN rail mounting according to EN 60715.
- Screw terminal electrical connections.
Technical Specifications
- Manufacturer: Finder
- Series: 80 Series Modular Timer Relays
- Model: 80.61.0.240.0000T
- Product type: Electronic off-delay timer relay
- Timer configuration: Single-function
- Timing function: Power-off delay (BI)
- Number of timing functions: 1
- Adjustable timing range: 0.05–180 s
- Supply voltage AC: 24–240 V AC
- Supply voltage DC: 24–240 V DC
- Supply type: AC/DC
- Output configuration: 1 changeover contact (SPDT / 1 CO)
- Number of output contacts: 1
- Rated contact current: 8 A
- Rated switching voltage: 250 V AC
- Maximum peak switching current: 15 A
- Contact material: Silver nickel (AgNi)
- Timing adjustment: Screwdriver-operated adjustment
- Operating principle: Delayed output release following supply voltage removal
- Status indication: LED
- Operating temperature: -25 to +55 °C
- Protection rating: IP20
- Mounting type: DIN rail
- DIN rail standard: EN 60715
- Terminal type: Screw terminals
- Number of connection terminals: 5
- Module width: 17.5 mm
- Application category: Industrial automation and railway electrical systems
- Railway fire protection standard: EN 45545-2 + A1:2016
- Railway shock and vibration standard: EN 61373
- EAN: 8012823372969
Reliable Power-Off Delay Control for Industrial and Railway Systems
Timer relays such as the Finder 80.61.0.240.0000T provide controlled electrical switching based on a preset time interval. Unlike conventional instantaneous relays, a power-off delay timer maintains its output state for a defined period after the supply voltage is removed. Once the selected delay has elapsed, the relay returns to its normal contact position.
The Finder 80.61 Series uses an electronic timing circuit to provide adjustable off-delay operation. The timing interval can be set between 0.05 and 180 s, allowing engineers to configure the delay according to the requirements of the connected control circuit. Its single changeover contact provides normally open and normally closed switching paths for integration with suitable electrical loads.
The 80.61.0.240.0000T railway variant is particularly suited to applications requiring components designed with railway fire protection and mechanical resistance requirements in mind. Its compliance with EN 45545-2 and EN 61373 makes it relevant to railway rolling stock and associated electrical equipment, subject to the requirements of the complete installation.
The wide 24–240 V AC/DC operating supply simplifies integration into control systems using different supply voltages. Its compact housing, DIN rail mounting and LED indication also help reduce installation complexity and support convenient maintenance in industrial and railway electrical cabinets.
Typical Applications
- Railway rolling stock electrical control systems.
- Railway auxiliary equipment and timed switching circuits.
- Industrial machinery shutdown delay systems.
- Electrical control panels and automation cabinets.
- Delayed switching of industrial control equipment.
- Ventilation and extraction system run-on control.
- Industrial fans and motor control circuits using suitable external switching devices.
- Conveyor systems and material handling equipment.
- Building automation and HVAC control installations.
- Automated doors, gates and access control equipment.
- Lifts, hoists and industrial lifting control systems.
- Process automation requiring delayed deactivation.
- OEM electrical equipment and machinery manufacturing.
