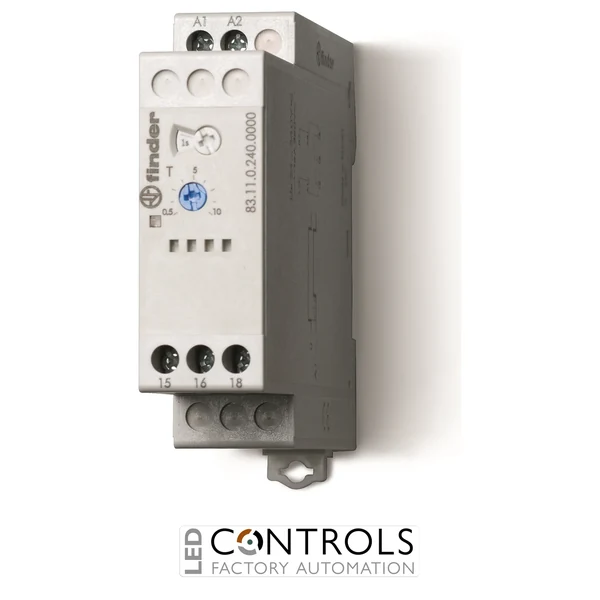

Why Choose the Finder 83.11.0.240.0000T ON-Delay Timer Relay?
The Finder 83.11.0.240.0000T is a railway-oriented, single-function ON-delay timer relay designed for delayed switching, electrical sequencing and industrial automation applications. Part of the Finder 83 Series, this modular timer features a universal 24–240 V AC/DC supply range, an adjustable timing range from 0.05 seconds to 10 days and a 16 A single changeover relay output.
Featuring the AI (ON-delay) timing function, the Finder 83.11.0.240.0000T provides controlled output activation after a preset time interval. When the supply voltage is applied, the timer begins counting down the selected delay. Once the preset period has elapsed, the changeover output operates, allowing connected control equipment to be activated in a controlled sequence.
The T suffix identifies the railway-oriented version of the Finder 83.11 timer, making it particularly relevant to electrical equipment used in railway applications. Its 22.5 mm-wide housing, screw terminal connections, DIN rail mounting and adjustable timing controls provide a practical solution for railway electrical cabinets, industrial machinery and automation control panels.
Key Advantages
- Dedicated AI ON-delay function provides straightforward delayed activation of electrical control circuits.
- Universal 24–240 V AC/DC supply supports a wide range of industrial and railway control voltages.
- Extended 0.05 s to 10 day timing range accommodates short delays and long-duration timing requirements.
- 16 A rated output contact provides switching capability for compatible electrical loads.
- Single changeover contact offers normally open and normally closed switching connections.
- Railway-oriented T variant supports equipment selection for railway electrical applications.
- Supply-triggered timing simplifies control circuit design.
- Adjustable time settings allow the required activation delay to be configured.
- Screw terminal connections support convenient electrical installation and maintenance.
- 22.5 mm modular housing enables compact control panel installation.
- DIN rail mounting simplifies integration into industrial electrical enclosures.
- IP20 protection rating for installation inside an appropriate control cabinet.
- Single-function design provides a clear and predictable timing sequence.
Key Features
- Finder 83 Series modular timer relay.
- Type 83.11 single-function timer.
- Special T variant for railway applications.
- 24–240 V AC/DC operating supply.
- 50/60 Hz AC supply compatibility.
- AI — ON-delay timing function.
- 0.05 s minimum timing setting.
- 10 day maximum timing setting.
- One changeover output (1 CO / SPDT).
- 16 A rated contact current.
- Supply-voltage-initiated timing.
- Reset by removing the supply voltage.
- Adjustable timing controls for selecting the required delay.
- Screw terminal electrical connections.
- 22.5 mm housing width.
- 78.8 mm housing height.
- 96 mm housing depth.
- DIN rail-mounted construction.
- IP20 protection rating.
- Silver nickel (AgNi) contact material.
Technical Specifications
- Manufacturer: Finder
- Series: 83 Series
- Type: 83.11
- Manufacturer part number: 83.11.0.240.0000T
- Product type: Single-function modular timer relay
- Variant: Railway-oriented T version
- Supply voltage: 24–240 V AC/DC
- AC supply frequency: 50/60 Hz
- Timing function: AI — ON delay
- Number of timing functions: 1
- Minimum timing setting: 0.05 s
- Maximum timing setting: 10 days (240 h)
- Timing initiation: Application of supply voltage
- Timing reset: Removal of supply voltage
- Number of output contacts: 1
- Output configuration: 1 changeover (1 CO)
- Output contact arrangement: SPDT / 1 Form C
- Rated contact current: 16 A
- Contact material: Silver nickel (AgNi)
- Terminal type: Screw terminals
- Mounting type: DIN rail
- Housing width: 22.5 mm
- Housing height: 78.8 mm
- Housing depth: 96 mm
- Protection rating: IP20
- Application category: Railway and industrial automation
- EAN: 8012823429939
Extended ON-Delay Timing for Railway and Industrial Automation
Electrical control systems often require a defined delay between the application of a control supply and the activation of connected equipment. The Finder 83.11.0.240.0000T provides this functionality through its dedicated AI ON-delay timing mode, allowing engineers to introduce a controlled waiting period before a switching operation takes place.
When the supply voltage is applied, the timer starts its preset timing interval while the output remains in its initial state. Once the selected delay expires, the 16 A changeover relay output operates. Removing the supply resets the timer, allowing the sequence to begin again when power is restored.
The adjustable timing range from 0.05 seconds to 10 days makes this relay particularly versatile for applications requiring either very short activation delays or extended waiting periods. Its 24–240 V AC/DC supply compatibility allows the same timer type to be considered across different industrial control voltage arrangements.
As a railway-oriented T variant, the device is also relevant to railway auxiliary control systems where project specifications require equipment selected for railway service. The suitability of the timer for a particular installation, including any applicable railway environmental or approval requirements, should be confirmed against Finder's current technical documentation.
For motor-control applications, the timer can be used to delay the energisation of suitably rated contactor coils or auxiliary relays. The switching capacity must be assessed against the actual load type, utilisation category and electrical characteristics rather than the nominal contact current alone.
Typical Applications
- Railway vehicle auxiliary electrical control systems.
- Railway electrical cabinets and control interfaces.
- Delayed activation of railway auxiliary equipment.
- Industrial automation timing and sequencing.
- Contactor and auxiliary relay energisation delays.
- Industrial machinery start-up sequencing.
- Motor-control circuits requiring delayed activation.
- Electrical distribution and control panels.
- Ventilation and auxiliary equipment timing.
- Automated doors, gates and access-control equipment.
- Material handling and conveying systems.
- Long-duration timing and delayed switching applications.
