Why Choose the Finder 84.02.0.024.0000 SMARTimer?

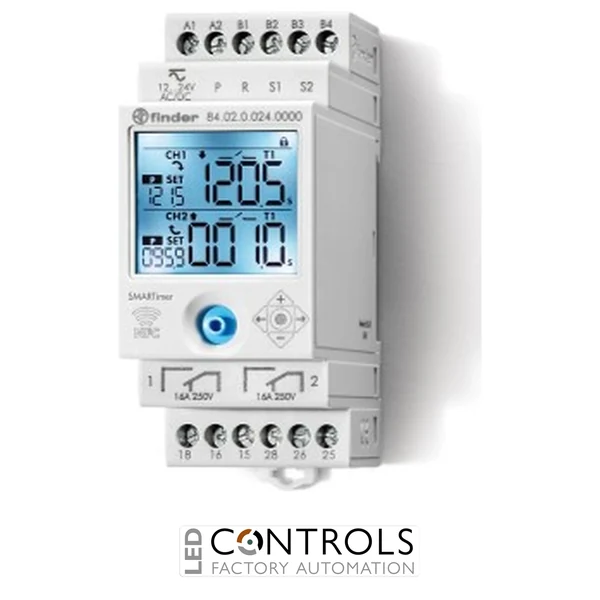

The Finder 84.02.0.024.0000 is an advanced multifunction digital timer relay designed for flexible timing and process control in industrial machinery, building services and automation systems. Part of the innovative Finder 84 Series SMARTimer range, it combines two independently programmable channels, two 16 A changeover outputs and a wide 12–24 V AC/DC supply range.
The SMARTimer provides 30 selectable timing functions for each channel, with adjustable timing from 0.1 seconds to 9,999 hours. Its two channels can be configured independently, allowing a single module to replace two conventional timer relays and perform complex timing sequences within a compact DIN rail enclosure.
Programming can be completed directly using the integrated joystick and backlit display or wirelessly from an NFC-enabled smartphone using the Finder Toolbox app. Separate Start inputs for both channels, common Pause and Reset inputs, PIN protection and direct compatibility with PNP and NPN proximity sensors provide extensive control flexibility.
Key Advantages
- Two independently programmable timer channels in one module.
- 30 timing functions per channel for flexible automation control.
- Wide timing range from 0.1 seconds to 9,999 hours.
- Two 16 A changeover outputs for substantial electrical loads.
- NFC programming through the Finder Toolbox smartphone app.
- Direct interface with both PNP and NPN proximity sensors.
Key Features
- Finder 84 Series SMARTimer digital timer relay.
- 12–24 V AC/DC non-polarised supply.
- Two independently programmable channels.
- Two changeover relay outputs rated at 16 A.
- Large backlit display with integrated programming joystick.
- NFC configuration using a compatible Android or iOS smartphone.
- Separate Start inputs with configurable Pause and Reset inputs.
- PIN-protected programming and selectable count-up or count-down display.
Flexible Digital Timing for Automation Systems
Digital timer relays control electrical outputs according to programmed time sequences and external input signals. The Finder SMARTimer supports functions including on-delay, off-delay, pulse generation, interval timing, symmetrical and asymmetrical flashing, watchdog monitoring and combined timing sequences.
Because its channels operate independently, the 84.02.0.024.0000 can control two processes from one compact module. Programmes can be created, saved and transferred by NFC, helping reduce commissioning time and maintain consistent settings across multiple machines or control panels.
Typical Applications
- Industrial machinery and process automation.
- Pump, motor and fan sequencing.
- Lighting and building control systems.
- Packaging, labelling and production machinery.
- Industrial ovens, heaters and process equipment.
- Automatic car washes, pools and fountain controls.
