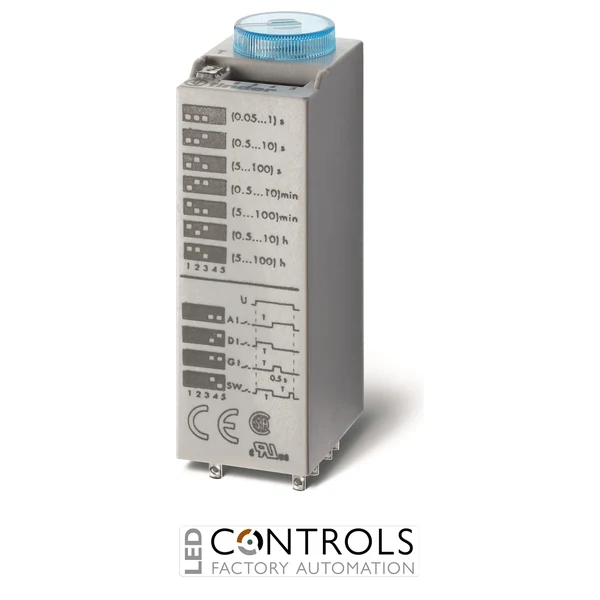

Why Choose the Finder 85.02.0.125.0000 Plug-In Timer Relay?
The Finder 85.02.0.125.0000 is a compact and dependable multifunction plug-in timer relay designed for timed switching and control functions in industrial automation, machinery and electrical control panels. As part of the Finder 85 Series miniature plug-in timer range, it combines four selectable timing functions with two changeover contacts in a practical socket-mounted format.
This timer relay provides seven selectable time scales covering a wide adjustment range from 0.05 seconds to 100 hours. Its supported functions include on-delay, interval, symmetrical flasher starting with the ON period and pulse-delayed operation, allowing one device to handle numerous sequencing, delay and cyclic control requirements.
With a nominal 125 V AC/DC non-polarised supply and two 10 A changeover contacts, the 85.02.0.125.0000 is suitable for controlling contactors, lighting circuits, alarms and other automation equipment. The plug-in design is compatible with Finder 94 Series sockets, enabling straightforward installation and replacement within control panels.
Key Advantages
- Compact multifunction timer relay for industrial control applications.
- Four timing functions accommodate delay, interval, pulse and cyclic switching requirements.
- Seven selectable time scales ranging from 0.05 seconds to 100 hours.
- Two 10 A changeover contacts provide flexible circuit control.
- 125 V AC/DC non-polarised supply supports both alternating and direct-current control systems.
- Plug-in construction simplifies installation, maintenance and replacement.
Key Features
- Finder 85 Series miniature plug-in timer.
- Multifunction operation with AI, DI, SW and GI timing modes.
- Seven selectable timing ranges.
- Adjustable timing period from 0.05 seconds to 100 hours.
- 2 CO (DPDT) output configuration.
- 10 A rated contact current.
- Durable silver-nickel (AgNi) contacts.
- Compatible with Finder 94 Series sockets for 35 mm rail installation.
Reliable Timed Control for Automation Systems
Timer relays such as the Finder 85.02.0.125.0000 automatically switch electrical circuits according to a selected function and preset time interval. This enables accurate sequencing, delayed starting, timed operation and repeated switching without requiring a separate programmable controller.
The Finder 85 Series is designed for convenient integration into industrial and commercial control systems. Its broad timing range, clear adjustment controls and replaceable plug-in construction make it particularly useful for control-panel builders, maintenance engineers and automation specialists.
Typical Applications
- Industrial machinery and process automation.
- Control-panel timing and sequencing circuits.
- Delayed starting of motors and contactors.
- Lighting and ventilation control systems.
- Pumps, fans and heating equipment.
- Alarm, signalling and cyclic switching circuits.
