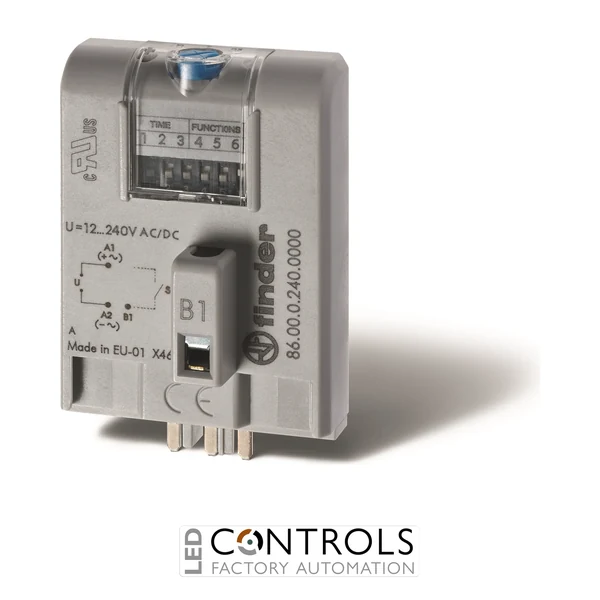

Finder 86.00.0.240.0000T Multifunction Railway Timer Module – 12–240 V AC/DC, 8 Timing Functions, 0.05 Seconds to 100 Hours
The Finder 86.00.0.240.0000T is a professional multifunction plug-in timer module for railway applications, designed to provide adjustable electronic timing control when combined with a compatible Finder relay and socket assembly. Part of the Finder 86 Series, this versatile timer module offers eight selectable timing functions, a wide 12–240 V AC/DC operating supply and an adjustable timing range extending from 0.05 seconds to 100 hours.
Unlike a complete DIN rail timer relay with its own switching contacts, the Finder 86.00.0.240.0000T is a plug-in timing module. It works with a compatible relay and socket combination to create a timed switching assembly. This modular design allows the relay configuration and switching capacity to be selected according to the application.
The T suffix identifies the railway-specific version, developed for rolling stock applications involving vibration, mechanical shock and demanding environmental conditions. With eight timing modes, LED indication and a compact 54 × 38 × 11.8 mm housing, the Finder 86.00.0.240.0000T is an effective solution for railway electrical systems, auxiliary control circuits and industrial automation equipment.
Key Advantages
- Eight selectable timing functions provide flexible control of delay, interval and cyclic switching operations.
- Universal 12–240 V AC/DC supply supports a wide variety of electrical control voltages.
- 0.05-second to 100-hour timing range accommodates short switching delays and extended operating sequences.
- Railway-specific T version is designed for demanding rolling stock applications.
- Plug-in modular construction allows use with a suitable relay and socket combination.
- Compatible with Finder 96 Series socket arrangements specified for the 86.00T railway module.
- LED indication provides convenient visual operating information.
- Compact 54 × 38 × 11.8 mm dimensions minimise additional installation space.
- EN 50155 railway environmental compliance supports integration into suitable rolling stock systems.
- EN 61373 shock and vibration compliance addresses railway mechanical operating conditions.
- EN 45545-2 fire protection compliance supports relevant railway equipment requirements.
- Flexible relay selection allows switching characteristics to be determined by the associated relay.
- Modular maintenance enables the timer module to be considered separately from the relay and socket.
- Suitable for railway automation, industrial process control and timed equipment operation.
Key Features
- Finder 86 Series multifunction electronic timer module.
- Type 86.00T railway-specific configuration.
- Eight timing functions: AI, DI, SW, BE, CE, DE, EE and FE.
- 12–240 V AC/DC operating voltage range.
- 50/60 Hz AC supply compatibility.
- Adjustable timing range: 0.05 s to 100 h.
- On-delay timing for delayed switching after energisation.
- Interval timing for predetermined operating periods.
- Symmetrical flasher operation for repeated ON/OFF cycles.
- Control-signal-operated timing modes for externally initiated sequences.
- LED operating indication.
- Plug-in connection through a compatible relay socket.
- Compatible railway assembly: Finder 56.34T relay with 96.04.7 socket, subject to exact variant verification.
- Compact module dimensions: 54 × 38 × 11.8 mm.
- IP20 protection rating.
- −20 to +50 °C operating temperature range, as listed by TME.
- Railway shock and vibration classification: EN 61373 Category 1 Class B.
- Railway temperature classification: EN 50155 Class T1.
- Railway fire protection: EN 45545-2.
Technical Specifications
- Manufacturer: Finder
- Product series: 86
- Manufacturer part number: 86.00.0.240.0000T
- Alternative part number: 860002400000T
- Product type: Multifunction electronic timer module
- Module type: 86.00T
- Application version: Railway-specific T variant
- Nominal supply range: 12–240 V AC/DC
- AC supply frequency: 50/60 Hz
- Number of timing functions: 8
- Available timing functions: AI, DI, SW, BE, CE, DE, EE, FE
- Minimum timing interval: 0.05 s
- Maximum timing interval: 100 h
- Maximum timing interval in seconds: 360,000 s
- Timing technology: Electronic
- Operating indication: Integrated LED
- Electrical connection: Plug-in module
- Mounting arrangement: Compatible relay and socket assembly
- Associated socket family: Finder 96 Series railway socket
- Example compatible socket: 96.04.7
- Example associated relay: Finder 56.34T
- Integrated output contacts: None; switching contacts are provided by the associated relay
- Output contact configuration: Determined by the selected compatible relay
- Output contact current rating: Determined by the selected compatible relay
- Body dimensions: 54 × 38 × 11.8 mm
- Operating temperature: −20 to +50 °C
- Protection rating: IP20
- Railway electronic equipment standard: EN 50155
- Railway temperature class: T1
- Railway shock and vibration standard: EN 61373
- Shock and vibration category: Category 1 Class B
- Railway fire protection standard: EN 45545-2 + A1:2016
- Country of origin: Italy
- Primary applications: Railway rolling stock, auxiliary control systems, industrial automation and electronic timing circuits
Eight Selectable Timing Functions
The Finder 86.00.0.240.0000T provides eight selectable timing modes, allowing the same timer module to perform several different control tasks. These functions include supply-triggered delays, fixed intervals, repetitive switching and externally controlled timing operations.
AI – On-Delay
The AI function delays operation of the associated relay after the timer supply is applied. Once the selected interval has elapsed, the output relay changes state according to the applicable timing diagram.
This function is useful for delayed equipment activation, sequential start-up arrangements and control circuits requiring a waiting period before operation.
DI – Interval
The DI function provides a timed operating interval following supply energisation. The associated relay operates for the selected duration before returning to its initial state.
Typical applications include timed equipment activation, temporary control outputs and defined-duration switching operations.
SW – Symmetrical Flasher, Starting ON
The SW function provides repetitive ON/OFF switching with equal operating and pause periods. The cycle begins with the output energised.
This function is suitable for periodic switching, repeating control sequences and compatible signalling applications.
BE – Off-Delay with Control Signal
The BE function provides delayed release of the associated relay after a control signal changes state. It is useful when equipment must remain active for a defined period after an external command has ended.
Potential applications include delayed ventilation shutdown and controlled equipment run-on sequences.
CE – On-Delay and Off-Delay with Control Signal
The CE function provides timing associated with both the application and removal of a control signal. This enables delayed activation and delayed deactivation within one timing mode.
It can be useful for filtering brief control commands and managing equipment start and stop sequences.
DE – Interval with Control Signal ON
The DE function initiates a timed interval in response to a control signal being applied. The resulting output sequence follows the selected interval and the manufacturer's timing diagram.
This mode is suitable for externally triggered timed operations.
EE – Interval with Control Signal OFF
The EE function initiates an interval associated with removal of the control signal. It is useful where a defined output period is required after a control command ends.
FE – Interval with Control Signal ON and OFF
The FE function provides interval timing associated with both application and removal of a control signal. It offers additional flexibility for externally initiated timing sequences.
Important: The exact output transitions, retriggering behaviour and reset conditions for all eight functions must be checked against Finder's official timing diagrams before commissioning.
How the Finder 86.00T Plug-In Timer Module Works
The Finder 86.00.0.240.0000T is an electronic timing module rather than a complete electromechanical relay. It is designed to be installed in a compatible relay and socket assembly, where it controls the timing of an associated relay's operation.
When the appropriate supply and control conditions are present, the timer module executes the selected timing function. At the required point in the sequence, it controls the associated relay, allowing the relay contacts to switch the connected electrical circuit.
This modular arrangement offers an important advantage: the timing module does not determine the number of switching contacts or their electrical current rating. Those characteristics depend on the compatible relay fitted to the assembly.
For railway applications, Finder documents the 86.00T module with a 56.34T relay and 96.04.7 socket. This arrangement provides a complete timed relay assembly when the specified compatible components are correctly installed.
The modular design also supports maintenance and component replacement. However, the correct timer, relay and socket combination must always be verified before installation or substitution.
Railway-Specific T Version for Rolling Stock Applications
The Finder 86.00.0.240.0000T is intended for railway applications and is associated with environmental requirements for electronic equipment installed on rolling stock.
Its railway design references the following standards:
- EN 50155: Electronic equipment used on railway rolling stock, including relevant environmental operating requirements. The module is associated with temperature class T1.
- EN 61373: Shock and vibration testing for railway equipment, with Category 1 Class B classification.
- EN 45545-2 + A1:2016: Railway vehicle fire protection requirements relating to the fire and smoke behaviour of materials and components.
These characteristics make the timer module suitable for consideration in rolling stock electrical control cabinets, auxiliary equipment systems and railway automation assemblies.
Compliance of the individual timer module does not automatically establish compliance of the complete electrical assembly. The associated relay, socket, wiring, enclosure and operating conditions must also meet the requirements of the railway project.
Installation and Compatible Relay Assemblies
The Finder 86.00.0.240.0000T is designed for plug-in installation with a suitable Finder relay and socket. It is not intended to be wired or mounted as a standalone DIN rail timer relay.
For the railway-specific 86.00T version, Finder identifies the following compatible arrangement:
- Timer module: Finder 86.00.0.240.0000T
- Associated relay: Finder 56.34T
- Associated socket: Finder 96.04.7
- Resulting assembly: Multifunction timed relay arrangement with output characteristics determined by the selected relay
The timer module's compact 54 × 38 × 11.8 mm dimensions allow it to be incorporated into the compatible socket arrangement without requiring a separate conventional timer housing.
Its 12–240 V AC/DC operating range allows the module to be used with several common railway and industrial control voltages, subject to the manufacturer's detailed supply requirements.
All installation work should be undertaken by competent personnel. The correct relay and socket combination, electrical supply, wiring arrangement and selected timing function must be verified against the manufacturer's current documentation.
Typical Applications
- Railway rolling stock auxiliary control systems.
- Train electrical equipment cabinets.
- Railway ventilation and environmental control systems.
- Timed control of auxiliary railway equipment.
- Railway electrical switching sequences.
- Industrial machinery control panels.
- Delayed equipment start-up circuits.
- Timed shutdown and run-on functions.
- Industrial process automation.
- Conveyor and material-handling systems.
- Packaging and processing machinery.
- Timed pump and ventilation control.
- Periodic signalling and cyclic switching applications.
- Control-signal-triggered timing circuits.
- Applications requiring a compact multifunction timer with a wide AC/DC supply range.
Finder 86.00T and 86.30T Timer Module Comparison
The Finder 86 Series includes multifunction and simpler timer module variants for different control requirements.
- Finder 86.00.0.240.0000T: Railway-specific multifunction timer module with eight timing functions, a 12–240 V AC/DC supply and a 0.05-second to 100-hour timing range.
- Finder 86.30T: Railway-specific two-function timer module offering AI on-delay and DI interval functions, with supply options dependent on the exact part number.
- Finder 86.00.0.240.0000: Standard non-T multifunction timer module with eight timing functions and a 12–240 V AC/DC supply, intended for compatible standard relay and socket assemblies.
The correct module should be selected according to the required timing functions, control supply and relay/socket arrangement. Railway and standard versions should not be substituted without checking the relevant environmental requirements and manufacturer compatibility information.
