Why Choose the Finder 86.30.0.024.0000T Timer Module?

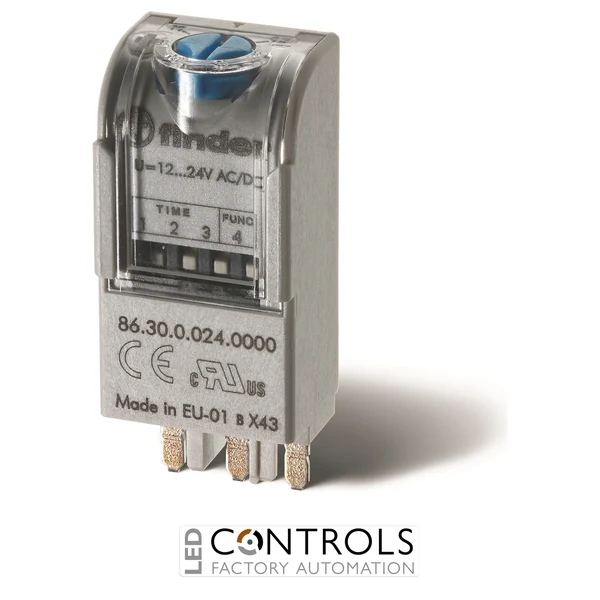

The Finder 86.30.0.024.0000T is a compact and reliable bi-function electronic timer module designed for precise time-controlled switching in industrial automation, railway electrical equipment and machinery control systems. As part of the Finder 86 Series timer module range, this plug-in device provides on-delay and interval timing functions when combined with a compatible relay and socket assembly.
The module features two selectable timing functions (AI and DI), a wide adjustable timing range from 0.05 s to 100 h and a 12–24 V AC/DC nominal supply. Its electronic timing circuit provides accurate and repeatable switching sequences, making it suitable for applications requiring delayed activation or a controlled output pulse.
The Finder 86.30.0.024.0000T is the railway-oriented version of the 86.30 timer module, developed for installations requiring resistance to vibration, mechanical shock and demanding environmental conditions. Designed for use with compatible Finder 94, 96 and 97 Series relay sockets, it provides a flexible timing solution without requiring a separate standalone timer relay. Its compact plug-in construction simplifies installation, replacement and maintenance in industrial and railway electrical control cabinets.
Key Advantages
- Compact bi-function electronic timer module for industrial automation and railway applications.
- Two selectable timing functions provide on-delay and interval switching control.
- 12–24 V AC/DC nominal supply supports compatible low-voltage control circuits.
- Adjustable timing range from 0.05 s to 100 h accommodates short and extended timing requirements.
- Seven selectable timing scales allow flexible adjustment for different control applications.
- ±1% timing repeatability supports consistent and dependable operation.
- ±5% full-scale setting accuracy provides controlled timing adjustment.
- Recovery time of 50 ms or less supports rapid repetition of timing cycles.
- Low 0.15 W rated power consumption supports efficient control circuit operation.
- Plug-in construction allows convenient installation and replacement.
- Compatible with selected Finder 94, 96 and 97 Series relay sockets.
- Railway-oriented construction designed for relevant fire protection, shock, vibration and environmental requirements.
- Integrated LED status indicator assists with commissioning and troubleshooting.
- IP20 protection rating for installation inside suitable electrical enclosures.
Key Features
- Finder 86 Series plug-in timer module.
- 86.30T railway-oriented bi-function configuration.
- AI on-delay timing function.
- DI interval timing function.
- 12–24 V AC nominal supply voltage.
- 12–24 V DC nominal supply voltage.
- 50/60 Hz AC supply frequency.
- 0.05 s to 100 h overall timing range.
- Seven selectable timing ranges for flexible configuration.
- ±1% timing repeatability.
- ±5% setting accuracy at full scale.
- ≤50 ms recovery time.
- 0.15 W rated power consumption.
- LED indication for operational monitoring.
- Plug-in mounting using a compatible Finder relay socket.
- Railway application variant designed in accordance with relevant EN 45545-2, EN 50155 and EN 61373 requirements.
- IP20 protection rating.
- Suitable for operation at ambient temperatures from -25 to +55 °C.
Technical Specifications
- Manufacturer: Finder
- Series: 86 Series Timer Modules
- Model: 86.30.0.024.0000T
- Product type: Electronic plug-in timer module
- Timer configuration: Bi-function
- Application variant: Railway
- Number of timing functions: 2
- Timing function AI: On-delay
- Timing function DI: Interval (on-pulse)
- Number of timing ranges: 7
- Minimum timing interval: 0.05 s
- Maximum timing interval: 100 h
- Overall timing range: 0.05 s to 100 h
- Selectable timing range 1: 0.05–1 s
- Selectable timing range 2: 0.5–10 s
- Selectable timing range 3: 5–100 s
- Selectable timing range 4: 0.5–10 min
- Selectable timing range 5: 5–100 min
- Selectable timing range 6: 0.5–10 h
- Selectable timing range 7: 5–100 h
- Nominal AC supply voltage: 12–24 V AC
- Nominal DC supply voltage: 12–24 V DC
- Supply type: AC/DC
- AC supply frequency: 50/60 Hz
- Operating voltage range AC: 9.6–33.6 V AC
- Operating voltage range DC: 9.6–33.6 V DC
- Rated power consumption: 0.15 W
- Timing repeatability: ±1%
- Setting accuracy at full scale: ±5%
- Recovery time: ≤50 ms
- Output switching: Via associated electromechanical relay
- Contact rating: Determined by the selected compatible relay
- Compatible socket families: Finder 94, 96 and 97 Series, subject to socket and relay compatibility
- Status indication: Integrated LED indicator
- Operating temperature: -25 to +55 °C
- Protection rating: IP20
- Mounting type: Plug-in relay socket mounting
- Railway fire protection standard: EN 45545-2:2020
- Railway shock and vibration standard: EN 61373, Category 1 Class B
- Railway environmental standard: EN 50155, OT4/ST1 class
- Environmental compliance: RoHS compliant
Reliable Bi-Function Timing Control for Industrial and Railway Systems
Electronic timer modules such as the Finder 86.30.0.024.0000T provide precise control over relay switching sequences by introducing a configurable time interval between an electrical event and the operation of an associated relay. When installed with a compatible Finder relay and socket, the module adds electronic timing functionality to a conventional electromechanical relay arrangement.
The Finder 86.30T provides two selectable timing functions. In AI on-delay mode, the timing interval begins when the supply voltage is applied, and the associated relay operates after the selected delay has elapsed. In DI interval mode, the associated relay operates when the supply is applied and returns to its normal state after the selected interval.
The module provides seven timing ranges covering 0.05 s to 100 h, allowing engineers to configure short control pulses, delayed equipment activation and extended timed operating sequences. Its ±1% repeatability and ±5% full-scale setting accuracy support consistent operation in industrial control applications.
Unlike a complete timer relay with integrated switching contacts, the Finder 86.30.0.024.0000T is a plug-in timing module that operates together with a compatible relay and socket assembly. The electrical switching capacity, contact arrangement and load suitability are determined by the associated relay. This modular approach allows engineers to select an appropriate relay configuration while adding the required timing functionality.
The 86.30.0.024.0000T railway variant is designed for applications requiring compliance with relevant railway standards. Its construction addresses EN 45545-2 fire protection requirements, EN 61373 shock and vibration conditions and EN 50155 environmental requirements, making it suitable for consideration in railway rolling stock and associated electrical equipment.
With a 12–24 V AC/DC nominal supply, low power consumption and compact plug-in construction, the Finder 86.30.0.024.0000T offers a practical timing solution for railway equipment manufacturers, industrial automation engineers and electrical panel builders requiring dependable delayed switching.
Typical Applications
- Railway rolling stock electrical control systems.
- Railway auxiliary equipment and timed switching circuits.
- Industrial machinery sequencing and automation control.
- Electrical control panels and industrial relay assemblies.
- Delayed activation of industrial control equipment.
- Timed output pulses in automation circuits.
- Industrial conveyor and material handling systems.
- Ventilation and extraction equipment control.
- Heating, ventilation and air conditioning (HVAC) systems.
- Automatic doors, gates and access control equipment.
- Industrial pumps and motor control circuits using suitable external switching devices.
- Packaging and production machinery.
- Process automation requiring on-delay or interval timing.
- OEM electrical equipment and machinery manufacturing.
