Why Choose the ABB CT-TGD.12 1SVR500160R0000 Pulse Timer?

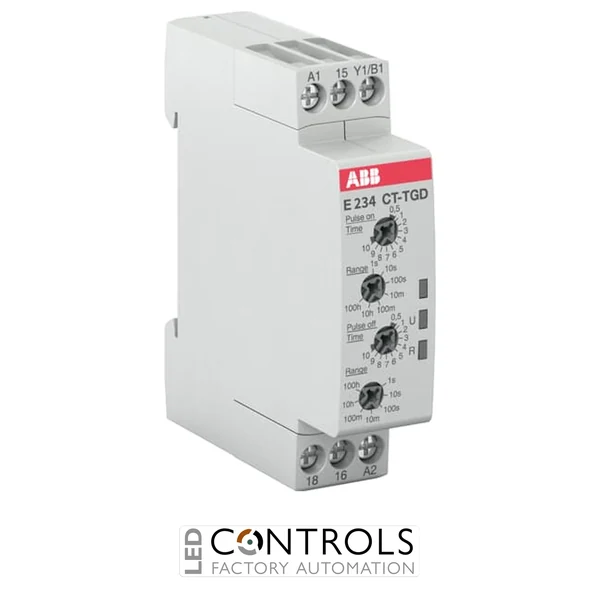

The ABB 1SVR500160R0000 CT-TGD.12 is a compact and reliable electronic pulse generator time relay designed for precise timing control in industrial automation, electrical distribution panels and control systems. As part of the ABB CT-D timer relay series, it provides an asymmetrical recycling pulse function for applications requiring repeated switching cycles.
This single-function timer relay combines flexible timing adjustment with a space-saving DIN rail mounting design. It provides 2 × 7 selectable time ranges from 0.05 s to 100 h, allowing accurate control of intermittent operating sequences in a wide variety of automation applications.
With a wide 24–240 V AC / 24–48 V DC control supply range, a 1 changeover (SPDT) output contact and compact 17.5 mm housing, the ABB CT-TGD.12 provides dependable timing control for industrial and building automation systems.
Key Advantages
- Compact electronic pulse generator timer relay for automation applications.
- 0.05 s to 100 h adjustable time range for flexible timing requirements.
- 24–240 V AC and 24–48 V DC supply range for worldwide installation compatibility.
- 1 changeover (SPDT) contact output for versatile switching control.
- Space-saving 17.5 mm DIN rail mounting design.
- LED status indication for easy monitoring of operating conditions.
Key Features
- ABB CT-D timer relay series.
- CT-TGD.12 pulse generator function.
- Asymmetrical recycling timing mode.
- 2 × 7 selectable time ranges.
- 0.05 s to 100 h time setting range.
- 1 CO (SPDT) output contact.
- 250 V / 6 A contact rating.
- DIN rail mounting according to IEC 60715.
Reliable Timing Control for Industrial Automation
Electronic timer relays such as the ABB CT-TGD.12 provide controlled switching sequences by generating repeatable timing cycles. This enables efficient control of intermittent loads, process sequences and automated equipment.
The CT-D series is designed for engineers, electricians and panel builders requiring compact and dependable timing solutions. Its narrow modular housing allows efficient installation in distribution boards and industrial control cabinets.
Typical Applications
- Industrial automation control panels.
- Flashing and intermittent switching applications.
- Pumps, fans and auxiliary equipment control.
- Lighting automation systems.
- Process control and machine sequencing.
- Building and electrical distribution installations.
