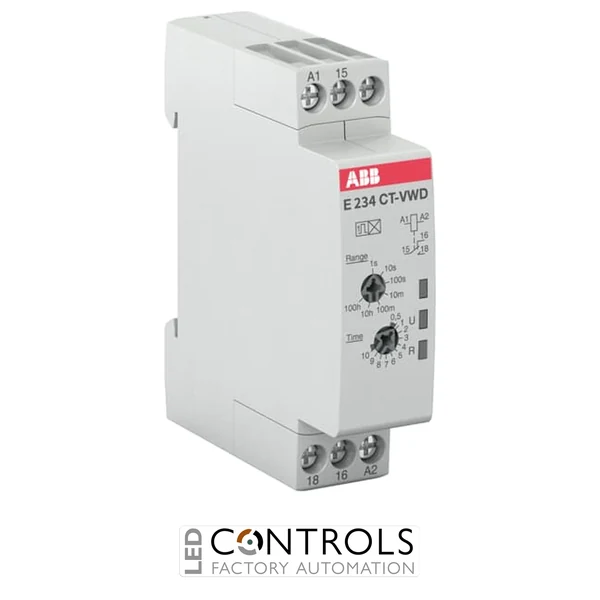

Why Choose the ABB 1SVR500130R0000 CT-VWD.12 Timer Relay?
The ABB 1SVR500130R0000 is a compact and reliable electronic time relay from the ABB CT-D timer relay range, designed for accurate timing control in industrial automation and electrical control systems. The CT-VWD.12 provides an impulse-ON (interval) timing function with flexible adjustment ranges, making it suitable for a wide variety of control and switching applications.
This timer relay combines simple adjustment, reliable switching performance and compact DIN rail mounting to provide an efficient solution for automation panels, machinery control circuits and electrical installations. With multiple selectable time ranges and LED status indication, the CT-VWD.12 enables precise control of timed operations.
Operating from a wide 24–240 V AC or 24–48 V DC supply, the ABB 1SVR500130R0000 provides a single changeover output contact rated for industrial control applications, making it ideal for timing sequences, delays and interval switching functions.
Key Advantages
- Compact electronic timer relay for industrial automation applications.
- Impulse-ON (interval) timing function for precise control sequences.
- Wide 24–240 V AC / 24–48 V DC supply range.
- Seven selectable time ranges from milliseconds to extended operating periods.
- DIN rail mounting for straightforward electrical panel installation.
- Reliable ABB quality for industrial control and switching systems.
Key Features
- ABB CT-D timer relay series.
- CT-VWD.12 single-function electronic timer.
- Impulse-ON (interval) timing operation.
- 1 c/o (SPDT) output contact.
- 24–240 V AC / 24–48 V DC control supply.
- 0.05 s to 100 h adjustable time range.
- LED indication for operating status.
- Compact DIN rail mounting design.
Reliable Timing Control for Industrial Automation
Timer relays such as the ABB CT-VWD.12 provide accurate control of switching sequences by introducing adjustable time delays into electrical circuits. This allows machinery, lighting systems, HVAC equipment and automation processes to operate according to defined timing requirements.
The ABB 1SVR500130R0000 is designed for engineers and panel builders requiring a compact, dependable timing solution with flexible voltage compatibility and straightforward DIN rail installation.
Typical Applications
- Industrial automation control circuits.
- Machine control and process timing systems.
- Motor control panels.
- Lighting control applications.
- HVAC timing systems.
- Electrical distribution and automation cabinets.
