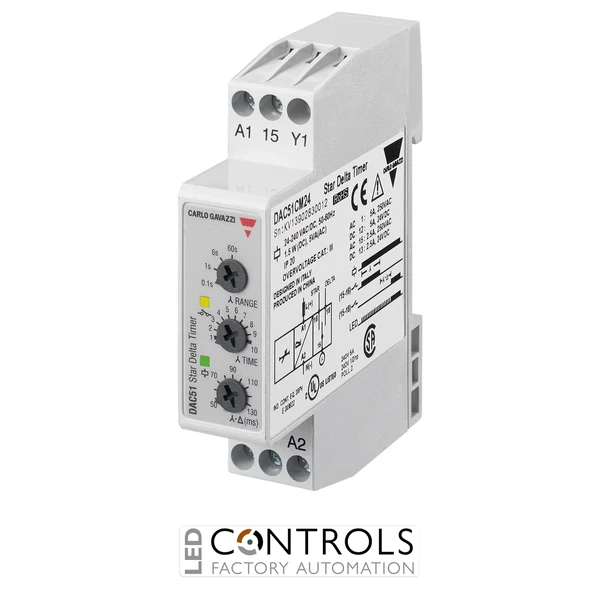

Carlo Gavazzi DAC51CM24 is a 17.5 mm DIN-rail star-delta timer relay with a 0.1–600 s star timing range, adjustable 50–130 ms transition delay, universal 24–240 V AC/DC supply and a 5 A SPDT output.
£77.21
The Carlo Gavazzi DAC51CM24 is a compact and dependable star-delta timer relay designed to control the starting sequence of three-phase induction motors. As part of the established Carlo Gavazzi DAC51 timer series, it provides adjustable star timing and controlled transfer between the star and delta stages of a motor starter.
This timer offers selectable star timing ranges from 0.1 s to 600 s, together with an independently adjustable 50–130 ms star-to-delta transition delay. Its SPDT relay incorporates a neutral centre position, helping ensure a break between the star and delta control states during transfer.
With a universal 24–240 V AC/DC supply, a 5 A SPDT relay output and a slim 17.5 mm DIN-rail housing, the DAC51CM24 is suitable for motor-control centres, pumps, fans, compressors and industrial machinery requiring reduced-current starting.
Star-delta starting reduces the current drawn by a three-phase induction motor during acceleration. When power is applied, the Carlo Gavazzi DAC51CM24 switches to its star position and begins the selected timing period before returning briefly to its neutral centre position.
After the adjustable 50–130 ms transition delay, the relay switches to the delta position and remains there until the supply is interrupted for at least 200 ms. Correct coordination with suitably rated contactors and electrical interlocking helps prevent the star and delta contactors from being energised simultaneously.
| Manufacturer | Carlo Gavazzi |
|---|---|
| Series | DAC51 |
| Model | DAC51CM24 |
| Product type | Star-delta timer relay |
| Timing function | Star-delta control |
| Star timing range | 0.1–600 s |
| Selectable star ranges | 0.1–1 s / 1–10 s / 6–60 s / 60–600 s |
| Star-to-delta transition delay | 50–130 ms adjustable |
| Timing start | Automatic on application of supply voltage |
| Supply voltage | 24–240 V AC/DC |
| AC supply frequency | 45–65 Hz |
| AC power consumption | 5 VA |
| DC power consumption | 1.5 W |
| Output type | SPDT electromechanical relay with neutral centre position |
| Contact configuration | 1 changeover contact |
| AC1 contact rating | 5 A at 250 V AC |
| AC15 contact rating | 2.5 A at 250 V AC |
| DC12 contact rating | 5 A at 24 V DC |
| DC13 contact rating | 2.5 A at 24 V DC |
| Time-setting accuracy | ≤5% |
| Repeatability | ≤0.2% |
| Reset time | Supply interruption of at least 200 ms |
| Protection rating | IP20 |
| Operating temperature range | −20 to +60 °C |
| Connection type | Screw terminals |
| Mounting type | Mini DIN-rail mounting |
| Dimensions (W × H × D) | 17.5 × 81 × 67.2 mm |
| Weight | approx. 85 g |
The DAC51CM24 controls the timed transition between the star and delta stages of a reduced-current three-phase motor starter.
The timer offers four selectable ranges covering star-stage delays from 0.1 s to 600 s.
Yes. The neutral transition period between the star and delta positions is adjustable from 50 to 130 ms.
The DAC51CM24 operates from a universal 24–240 V AC/DC supply.
The timer is mounted on a DIN rail inside a motor-control panel and connected to the starter control circuit using its screw terminals.
Carlo Gavazzi timer relays are used by panel builders, automation engineers and equipment manufacturers to provide dependable timing, sequencing and motor-control functions in industrial systems.
