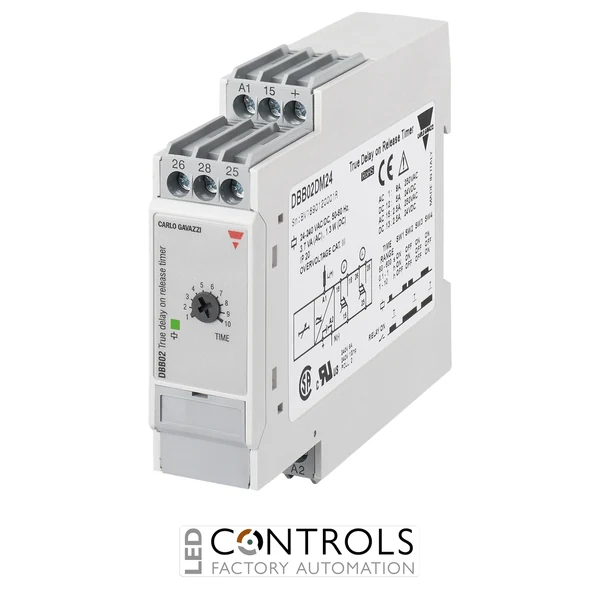

Carlo Gavazzi DBB02DM24 battery-powered true delay-on-release timer relay with a 60-second to 10-hour adjustable range, 24–240 V AC/DC supply and 8 A DPDT output.
£142.57
The Carlo Gavazzi DBB02DM24 is a battery-powered true delay-on-release timer relay designed to maintain two changeover outputs for an extended period after the power supply is removed. As part of the Carlo Gavazzi DBB02 timer series, it provides dependable long-duration timed switching for industrial machinery, automation equipment and electrical control systems.
When power is applied, the relay energises and the built-in rechargeable battery is charged. Removing the supply starts the selected timing period, during which both changeover outputs remain energised before releasing at the end of the delay. This battery-powered operation enables release delays of up to 10 h without requiring a continuous external supply.
With three selectable timing ranges covering 60 s to 10 h, a wide 24–240 V AC/DC supply and an 8 A DPDT relay output, the DBB02DM24 is ideal for extended shutdown and run-on applications requiring two changeover contacts. Its 22.5 mm DIN-rail housing enables straightforward installation inside industrial control panels.
A battery-powered true delay-on-release timer keeps its relay energised for a preset period after supply power is removed. Its internal rechargeable battery supports substantially longer delay periods than a conventional capacitor-powered timer, making it suitable for extended run-on and shutdown sequences.
The DBB02DM24 begins timing automatically following supply interruption and releases both changeover contacts when the selected period expires. If power returns before the relay releases, the timing cycle resets and the relay remains energised while the internal battery resumes charging.
| Manufacturer | Carlo Gavazzi |
|---|---|
| Series | DBB02 |
| Model | DBB02DM24 |
| Product type | True delay-on-release timer relay |
| Timing method | Battery powered |
| Timing range | 60 s to 10 h |
| Selectable ranges | 60–600 s, 0.1–1 h and 1–10 h |
| Range selection | DIP switches |
| Time adjustment | Front-mounted rotary knob |
| Repeatability | ≤ 0.2% |
| Supply voltage | 24–240 V AC/DC +10%/-15% |
| Supply frequency | 45–65 Hz |
| Rated power consumption | 3.7 VA AC or 1.3 W DC |
| Built-in battery | 4.8 V DC, 80 mAh NiCd |
| Minimum supply pulse | 200 ms |
| Output configuration | 1 DPDT relay with two changeover contacts |
| Resistive contact rating | 8 A at 250 V AC or 5 A at 24 V DC |
| Inductive contact rating | 2.5 A at 250 V AC or 2.5 A at 24 V DC |
| Protection rating | IP20 |
| Mounting type | DIN-rail mounting |
| Connection type | Screw terminals |
| Operating temperature | 0 to 60 °C |
| Dimensions (W × H × D) | 22.5 × 80 × 99.5 mm |
| Weight | approx. 130 g |
| Approvals | UL, CSA and CE marked |
This timer keeps two changeover contacts energised for an adjustable period after the power supply is removed, making it suitable for extended shutdown and run-on applications.
The timer uses its built-in rechargeable battery to maintain both relay outputs and complete the selected delay period after external supply power has been removed.
The timer provides three selectable ranges covering adjustable delays from 60 s to 10 h.
The DBB02DM24 operates from a wide 24–240 V AC/DC supply.
It has an 8 A DPDT relay output providing two changeover contacts for switching two circuits.
Carlo Gavazzi timer relays are widely used by control-panel builders, machine manufacturers and automation engineers for reliable timed switching in industrial equipment and building automation systems.
