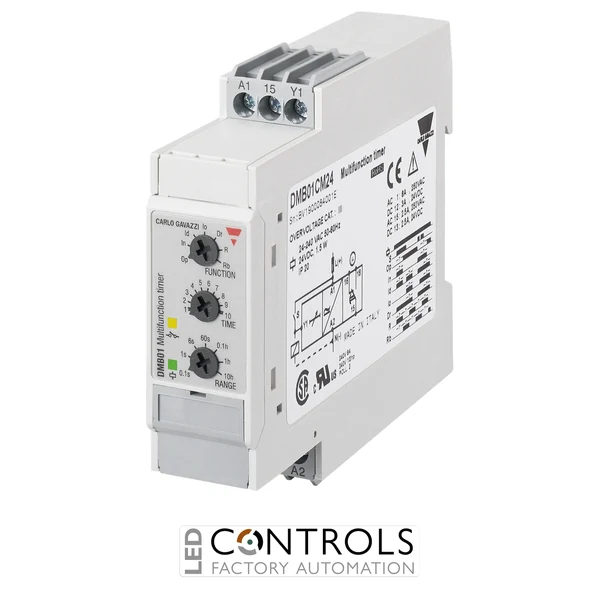

Why Choose the Carlo Gavazzi DMB01CM24 Multifunction Timer Relay?
The Carlo Gavazzi DMB01CM24 is a versatile multifunction timer relay designed for accurate time-based control in industrial automation, electrical control panels and machine systems. As part of the reliable Carlo Gavazzi DMB01 timer series, it combines multiple timing functions, adjustable time ranges and flexible AC/DC power supply compatibility in a compact DIN-rail mounted housing.
This timer relay provides seven selectable timing functions and seven adjustable time ranges, allowing engineers to configure delayed switching, interval timing and cyclic operation functions for a wide range of automation applications. Its knob-selectable settings and relay output simplify installation and commissioning.
With a 24–240 V AC and 24 V DC supply range, a timing range from 0.1 s to 100 h and an 8 A SPDT relay output, the DMB01CM24 is ideal for industrial control circuits, machinery automation and general-purpose timing applications.
Key Advantages
- Compact multifunction timer relay for industrial automation.
- Seven selectable timing functions for flexible control solutions.
- 0.1 s to 100 h adjustable time range for precise timing requirements.
- 24–240 V AC and 24 V DC supply capability for versatile installation.
- 8 A SPDT relay output for reliable switching control.
- Space-saving 22.5 mm DIN-rail mounting design.
Key Features
- Carlo Gavazzi DMB01 multifunction timer series.
- Multivoltage AC/DC power supply.
- Seven knob-selectable timing functions.
- Seven selectable time ranges from 0.1 s to 100 h.
- 1 × SPDT relay output.
- Automatic or manual trigger operation.
- LED indication for power supply and relay status.
- Screw terminal connection.
- Industrial DIN-rail mounting format.
Reliable Timing Control for Industrial Automation
Timer relays such as the Carlo Gavazzi DMB01CM24 provide accurate control of electrical sequences by introducing configurable time delays between switching operations. This enables automated control of motors, lighting systems, heating equipment and production machinery.
The DMB01 series is designed for control panel builders, automation engineers and maintenance professionals requiring a flexible timing solution in a compact DIN-rail format. Its multifunction design reduces the need for multiple dedicated timer devices.
Typical Applications
- Industrial automation control panels.
- Machine sequencing and process control.
- Motor and pump timing applications.
- Lighting and HVAC control systems.
- Production machinery timing circuits.
- OEM electrical control systems.
