Why Choose the Finder 12.B2.8.230.0000 Annual Astro Time Switch?

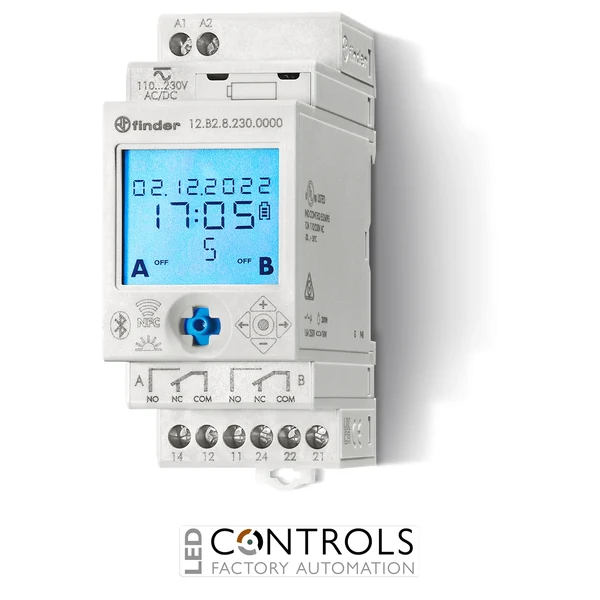

The Finder 12.B2.8.230.0000 is an advanced 2-channel digital astronomical time switch designed for automated electrical switching based on time schedules, calendar dates and astronomical sunrise and sunset calculations. Part of the Finder 12 Series, this programmable device combines annual scheduling, Bluetooth connectivity, NFC programming and two independent changeover outputs in a compact DIN rail-mounted unit.
Featuring 2 changeover contacts rated at 16 A and 250 V AC, the Finder 12.B2 provides flexible control of lighting, electrical equipment and automation circuits. Its 110–230 V AC/DC nominal supply supports a range of electrical installations, while the astronomical programming function enables switching events to follow changing sunrise and sunset times throughout the year.
The device supports configuration through its onboard joystick or the Finder TOOLBOX smartphone app using Bluetooth and NFC technology. Advanced functions include annual, weekly, holiday, random, cyclic and pulse programming. Optional Bluetooth expansion modules and GPS time synchronisation accessories further extend its capabilities, making the Finder 12.B2.8.230.0000 suitable for sophisticated commercial, industrial and building automation applications.
Key Advantages
- Annual astronomical programming enables automatic switching based on sunrise and sunset times.
- Two independent 16 A changeover outputs provide flexible control of separate electrical circuits.
- Bluetooth 5 and NFC connectivity support convenient smartphone configuration.
- Finder TOOLBOX app compatibility simplifies programming and schedule management.
- Supports annual, weekly and individual-day scheduling.
- 110–230 V AC/DC nominal supply provides installation flexibility.
- Advanced random, cyclic, pulse and astronomical pulse functions.
- Optional GPS antenna enables automatic time synchronisation.
- Expandable through compatible Finder Bluetooth input and output modules.
- 35 mm DIN rail mounting supports straightforward control cabinet installation.
- Compact 35 mm width occupies two standard DIN modules.
- Suitable for energy-efficient lighting control and automated equipment scheduling.
Key Features
- Finder 12 Series digital time switch.
- Model 12.B2.8.230.0000.
- Annual astronomical time switching functionality.
- 2 independent switching channels.
- 2 CO (DPDT) changeover contacts.
- 16 A contact rating at 250 V AC.
- Bluetooth 5 connectivity for wireless configuration and expansion.
- NFC technology for programming through the Finder TOOLBOX app.
- Onboard joystick for local configuration.
- LCD display for viewing settings and operating information.
- Annual, weekly and daily programming capabilities.
- Astronomical ON and OFF switching functions.
- Pulse and astronomical pulse programming.
- Random switching and cyclic operation.
- Automatic summer/winter time adjustment.
- Optional GPS time synchronisation using the Finder 012.BG.8.230 antenna.
- Expandable using compatible Finder 13.21 and 1Y.P2 Bluetooth modules.
- IP20 protection rating.
- Operating temperature range: −20 to +50 °C.
Advanced Astronomical Scheduling and Wireless Programming
The Finder 12.B2.8.230.0000 combines conventional digital time switching with astronomical control, allowing connected equipment to operate according to calculated sunrise and sunset times. This is particularly useful for external lighting, illuminated signage and other applications where switching schedules should follow seasonal daylight changes. Annual programming allows different operating periods or individual dates to be configured, while random, cyclic and pulse functions provide additional control flexibility.
Programming can be completed locally using the integrated joystick or through the Finder TOOLBOX app. NFC enables configuration even when the time switch is not powered, while Bluetooth supports wireless configuration and communication with compatible expansion modules. The optional Finder 012.BG.8.230 GPS antenna provides time synchronisation, and compatible input/output accessories allow the installation to be expanded beyond the two integrated changeover contacts. This makes the device suitable for both standalone time control and more advanced distributed automation arrangements.
Typical Applications
- Commercial and industrial external lighting control.
- Street lighting and public area illumination.
- Car park and security lighting automation.
- Building façade and architectural lighting.
- Illuminated signage and advertising displays.
- Seasonal and holiday lighting schedules.
- Industrial machinery operating schedules.
- Commercial building electrical automation.
- Scheduled switching of pumps and auxiliary equipment.
- Energy management and automated electrical load control.
- Electrical distribution boards and DIN rail control panels.
- Applications requiring annual, weekly or astronomical switching programmes.
