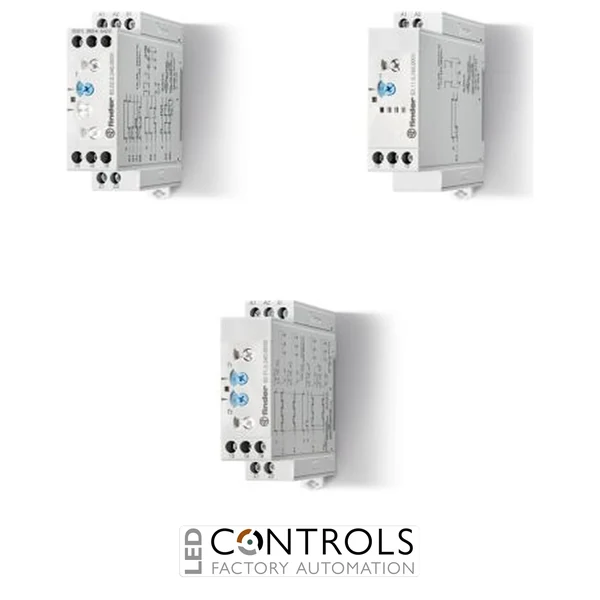

Why Choose the Finder 83.02.0.240.0000T Multifunction Timer Relay?
The Finder 83.02.0.240.0000T is a versatile multifunction modular timer relay designed for industrial automation, process control and electrical switching applications. Part of the Finder 83 Series, this timer combines eight selectable timing functions, a wide-range AC/DC supply and two changeover relay outputs in a compact DIN rail-mounted housing.
Featuring a 24–240 V AC/DC supply range, 2 changeover (DPDT) contacts rated at 12 A and adjustable timing from 0.05 seconds to 10 days, the Finder 83.02.0.240.0000T provides flexible timing control for industrial machinery and electrical control panels.
Its eight selectable operating functions include on-delay, interval, delayed pulse, symmetrical flashing, off-delay with control signal, combined on/off delay, interval with control signal and watchdog operation. The timer also offers a selectable output arrangement of two timed contacts or one timed and one instantaneous contact, making it particularly useful for applications requiring coordinated switching sequences.
Key Advantages
- Eight selectable timing functions provide flexibility for industrial automation and process control.
- 24–240 V AC/DC universal supply supports a wide range of electrical control systems.
- Two changeover (DPDT) contacts provide flexible switching arrangements.
- 12 A rated contact current supports appropriately rated electrical loads.
- 0.05 seconds to 10 days timing range accommodates short delays and extended operating cycles.
- Eight selectable time scales simplify timing adjustment.
- Two timed outputs or one timed and one instantaneous output provide additional control flexibility.
- Front-mounted rotary selectors allow straightforward configuration of timing functions and delay settings.
- LED status indication assists with commissioning and troubleshooting.
- 22.5 mm wide housing saves space inside electrical control cabinets.
- 35 mm DIN rail mounting supports convenient installation.
- Screw terminal connections provide secure electrical wiring.
- High input/output isolation supports reliable industrial control circuit integration.
Key Features
- Finder 83 Series multifunction modular timer.
- Eight selectable operating functions: AI, DI, GI, SW, BE, CE, DE and WD.
- Universal 24–240 V AC/DC supply.
- 50/60 Hz AC operating frequency.
- Two changeover contacts (DPDT).
- 12 A rated contact current at 250 V AC.
- 3,000 VA AC-1 switching capacity.
- 750 VA AC-15 switching capacity at 230 V AC.
- 0.05 seconds to 10 days adjustable timing.
- Eight selectable timing scales.
- Two timed contacts or one timed and one instantaneous contact.
- External control input for applicable timing functions.
- Remote potentiometer timing adjustment capability.
- Front-panel LED indicator.
- Power consumption below 2 VA AC / 2 W DC.
- 35 mm DIN rail mounting.
- Screw terminal connections.
- IP20 protection rating.
- −20 to +60 °C operating temperature range.
Technical Specifications
- Manufacturer: Finder
- Series: 83 Series
- Model: 83.02.0.240.0000T
- Product type: Multifunction modular timer relay
- Timing technology: Electronic multifunction timer with relay outputs
- Number of timing functions: 8
- Timing functions: AI, DI, GI, SW, BE, CE, DE, WD
- Minimum timing setting: 0.05 s
- Maximum timing setting: 10 days (240 h)
- Number of time scales: 8
- Nominal supply voltage: 24–240 V AC/DC
- Minimum operating supply voltage: 16.8 V AC/DC
- Maximum operating supply voltage: 265 V AC/DC
- AC supply frequency: 50/60 Hz
- Power consumption: <2 VA AC / <2 W DC
- Output contact configuration: 2 CO (DPDT)
- Number of output contacts: 2 changeover
- Selectable output arrangement: 2 timed contacts or 1 timed + 1 instantaneous contact
- Rated contact current: 12 A
- Rated contact voltage: 250 V AC
- AC-1 switching capacity: 3,000 VA
- AC-15 switching capacity at 230 V AC: 750 VA
- Single-phase motor load at 230 V AC: 0.5 kW
- DC-1 switching current at 24 V DC: 12 A
- DC-1 switching current at 110 V DC: 0.3 A
- DC-1 switching current at 220 V DC: 0.12 A
- Dielectric strength between input and output: 4,000 V AC
- Dielectric strength between open contacts: 1,000 V AC
- Impulse withstand voltage between input and output: 6 kV
- Operating temperature: −20 to +60 °C
- Protection rating: IP20
- Mounting type: 35 mm DIN rail
- DIN rail standard: EN 60715
- Terminal type: Screw terminals
- Status indication: LED
- Housing width: 22.5 mm
- Dimensions (W × H × D): 22.5 × 100.3 × 86.2 mm
- Control input: B1
- Supply terminals: A1 / A2
- Country of origin: Italy
Eight Selectable Timing Functions
The Finder 83.02.0.240.0000T provides eight timing modes for a wide variety of industrial switching applications:
- AI – On-delay: Energises the timed output after the selected delay following application of the supply voltage.
- DI – Interval: Energises the output immediately when supply voltage is applied and releases it after the selected interval.
- GI – Pulse delayed: Provides a delayed pulse output following the selected timing sequence.
- SW – Symmetrical flasher: Alternates the output between ON and OFF states, beginning with the ON interval.
- BE – Off-delay with control signal: Delays output release following removal of the external control signal.
- CE – On- and off-delay with control signal: Provides controlled switching delays when the external control signal is applied and removed.
- DE – Interval with control signal: Initiates a timed output interval through the external control input.
- WD – Watchdog: Provides a retriggerable interval function using the external control signal.
The required timing function and contact arrangement should be selected before energising the timer, following Finder's installation instructions.
Flexible Timing Control for Industrial Automation
Multifunction timer relays are widely used in electrical control systems where switching operations must occur after a defined delay or follow a repeatable sequence. They provide a practical alternative to more complex control equipment for straightforward timing tasks.
The Finder 83.02.0.240.0000T offers a wide 24–240 V AC/DC supply range, allowing the same timer family to be integrated into different industrial control voltage systems. Its two 12 A changeover contacts provide flexible switching options for suitable control and auxiliary loads.
The timer's eight selectable functions allow it to perform delayed starting, timed operation, flashing, pulse generation and watchdog monitoring. Front-panel selectors enable technicians to configure the required operating mode and time setting without complex programming.
A particularly useful feature is the ability to select between two timed contacts and one timed plus one instantaneous contact. This allows one output to respond immediately while the other follows the selected timing sequence, where supported by the chosen function.
Its 22.5 mm wide DIN rail housing, screw terminal connections and LED indication make the Finder 83.02.0.240.0000T suitable for compact industrial electrical cabinets and automation panels.
Typical Applications
- Industrial automation timing and switching circuits.
- Delayed motor starting and auxiliary control sequences.
- Conveyor start and stop timing.
- Machine control and sequential operation.
- Timed lighting and electrical load control.
- Ventilation and fan run-on control.
- Industrial process timing and cycle control.
- Pulse generation and intermittent switching.
- Flashing warning lights and signalling circuits.
- Watchdog and retriggerable control applications.
- Control panel commissioning and automation upgrades.
- OEM machinery and electrical control equipment.
