Why Choose the Finder 85.02.0.024.0000 Multifunction Timer Relay?

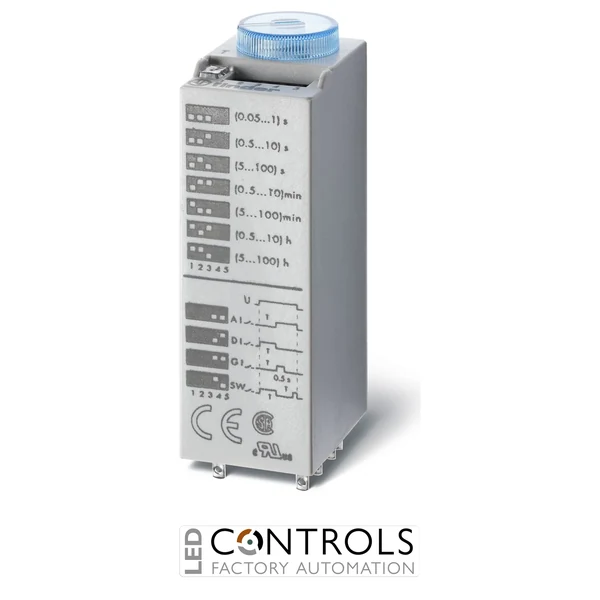

The Finder 85.02.0.024.0000 is a compact and reliable multifunction plug-in timer relay designed for precise time-controlled switching in industrial machinery, electrical panels and automation systems. As part of the established Finder Series 85 miniature timer range, it combines four timing functions with two changeover contacts in a space-saving plug-in format.
This timer provides seven selectable time scales covering delays from 0.05 s to 100 h. Rotary selectors allow the required function, timing scale and delay to be configured directly on the device, while an LED provides clear visual indication of the supply and output status.
With a 24 V AC/DC non-polarised supply and two 10 A changeover contacts, the 85.02.0.024.0000 is suitable for controlling contactors, signalling equipment, machinery sequences and other electrical loads. Its plug-in construction allows straightforward installation and replacement using a compatible Finder Series 94 socket.
Key Advantages
- Compact multifunction timer relay for industrial control applications.
- Four selectable timing functions for flexible sequence control.
- Seven time scales covering 0.05 s to 100 h.
- 24 V AC/DC non-polarised supply simplifies control-circuit wiring.
- Two 10 A changeover contacts for versatile load switching.
- LED indication provides clear supply and contact-status monitoring.
- Plug-in design enables convenient installation, testing and replacement.
- Compatible with Finder Series 94 sockets for panel or DIN-rail mounting.
Key Features
- Finder Series 85 miniature plug-in timer.
- Multifunction operation with AI, DI, GI and SW timing modes.
- Two changeover contacts rated at 10 A.
- 24 V AC/DC supply voltage.
- Seven selectable time scales.
- Adjustable timing range from 0.05 s to 100 h.
- On-delay, interval, delayed-pulse and symmetrical-flasher functions.
- LED supply and output-status indication.
- Eight-pin plug-in connection.
- Compatible with push-in and screw-terminal Series 94 sockets.
Reliable Timing Control for Industrial Automation
Multifunction timer relays provide automatic control of electrical loads according to a preset delay or repeating sequence. The Finder 85.02 supports on-delay, interval, delayed-pulse and symmetrical-flasher operation, allowing one device to fulfil several common timing requirements.
The plug-in construction is particularly useful in control panels where rapid servicing is important. The timer can be removed from its socket without disturbing the permanent field wiring, helping reduce maintenance time and simplifying equipment replacement.
Typical Applications
- Industrial machinery and control-panel sequencing.
- Electrical distribution and automation panels.
- Medical and dental equipment.
- Drying kilns and process-control equipment.
- Elevators and lifting systems.
- Lighting and signalling controls.
- Delayed contactor and actuator operation.
- Repetitive flashing and cyclic switching applications.
