Why Choose the IMO TDFR Forward Off Reverse Timer?

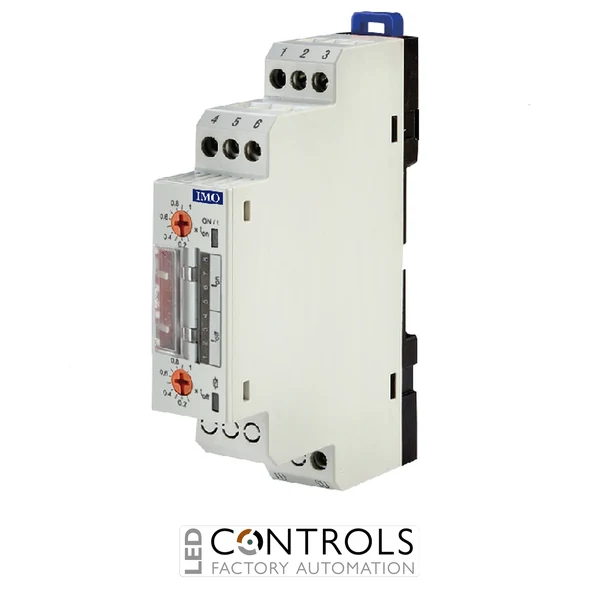

The IMO TDFR is a versatile electronic timer relay designed for forward, off and reverse timing control in industrial automation and motor control applications. As part of the IMO range of DIN rail mounted timers, it provides reliable sequencing control for applications requiring timed switching between two outputs.
This multifunction timer simplifies control of reversing operations by providing adjustable on and off delay periods within a compact DIN rail mounted enclosure. Its flexible timing functions make it suitable for machine automation, control panels and industrial switching applications.
With a wide 24–300 V AC/DC supply range, 10 A relay switching capability and adjustable timing from 0.1 s to 10 days, the IMO TDFR is designed for dependable operation in industrial control systems where accurate timing sequences are required.
Key Advantages
- Compact DIN rail mounted timer relay for industrial control applications.
- Forward, off and reverse timing function for automated switching sequences.
- 24–300 V AC/DC supply range suitable for flexible installation requirements.
- 10 A relay output capacity for reliable switching performance.
- Adjustable timing range from 0.1 s to 10 days.
- IP20 rated enclosure for installation inside electrical control panels.
Key Features
- IMO TDFR forward off reverse timer relay.
- DIN rail mounting design.
- 24–300 V AC/DC operating supply.
- 2 changeover relay contacts (2 C/O).
- 10 A maximum switching current.
- 0.1 s–10 days adjustable timing range.
- Forward, off and reverse cyclic timing operation.
- IP20 protection rating for control cabinet installation.
Reliable Timing Control for Industrial Automation
Electronic timer relays such as the IMO TDFR provide accurate switching sequences for automated machinery by controlling the timing relationship between connected outputs. This allows motors, actuators and other electrical loads to operate with repeatable forward and reverse cycles.
The TDFR is designed for engineers and control panel builders requiring a compact and reliable timing solution. Its adjustable parameters and wide supply voltage range allow integration into a variety of industrial control systems.
Typical Applications
- Motor forward and reverse control systems.
- Industrial automation machinery.
- Conveyors and material handling equipment.
- Control panels and electrical cabinets.
- Machine sequencing applications.
- OEM automation systems.
