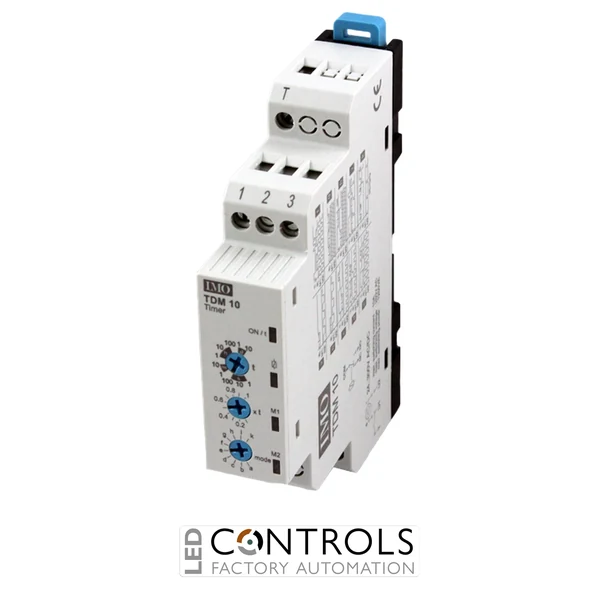

Why Choose the IMO TDM10-12 Multifunction Timer Relay?
The IMO TDM10-12 is a compact and reliable multifunction electronic timer relay designed for precise timing control in industrial automation, electrical panels and machinery applications. As part of the IMO TD timer relay series, it provides flexible timing functions and dependable switching performance for a wide range of control systems.
This timer relay combines multiple timing modes with a space-saving DIN rail mounted design, allowing engineers and panel builders to create accurate automated sequences without additional control equipment. Its adjustable timing functions make it suitable for applications requiring delayed switching, pulse control and timed relay operation.
With a 12 V AC/DC control supply, 180–265 V AC supply capability, 10 A SPCO relay output and an adjustable timing range from 0.1 s to 240 h, the IMO TDM10-12 provides a versatile solution for industrial control and automation systems.
Key Advantages
- Compact multifunction timer relay designed for industrial automation.
- 10 selectable timing functions for flexible control applications.
- 10 A SPCO relay contact for reliable load switching.
- DIN rail mounting design for simple control panel installation.
- 0.1 s to 240 h adjustable timing range for precise operation.
- Suitable for machine control, automation and electrical switching systems.
Key Features
- IMO TD multifunction timer relay series.
- Model TDM10-12.
- 10 timing functions.
- SPCO (single pole changeover) relay output.
- 10 A relay switching capacity.
- 12 V AC/DC supply input.
- 180–265 V AC supply range.
- 0.1 s–240 h timing adjustment range.
- DIN rail mounted modular enclosure.
Reliable Timing Control for Industrial Automation
Electronic timer relays such as the IMO TDM10-12 provide accurate control of switching sequences by introducing adjustable time delays into electrical circuits. This allows machinery and automated systems to operate with improved consistency and process control.
The TDM10-12 is designed for control engineers and machine builders requiring a compact multifunction timer that integrates easily into industrial control panels. Its wide operating voltage range and multiple timing modes make it suitable for many automation applications.
Typical Applications
- Industrial automation control panels.
- Machine sequencing systems.
- Motor and actuator timing control.
- Lighting and electrical switching applications.
- Pumps, fans and process equipment.
- OEM machinery and production systems.
