Why Choose the IMO TDSD1 Star Delta Timer Relay?

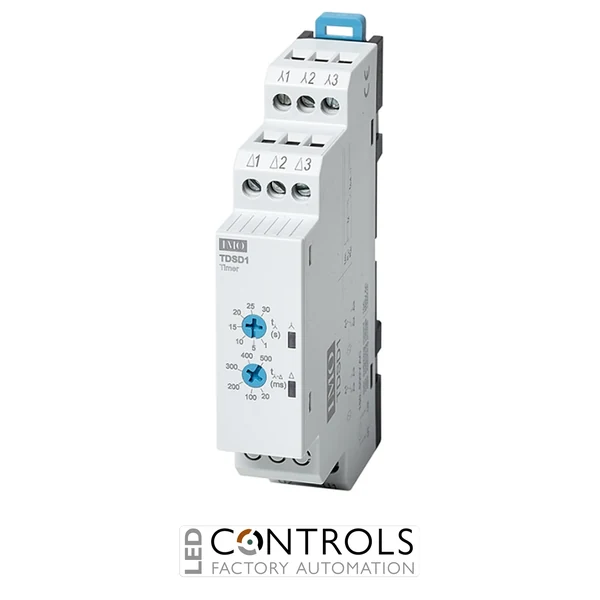

The IMO TDSD1 is a compact and reliable star delta starter timer relay designed for automatic motor starting control in industrial automation and electrical control systems. As part of the IMO TD timer relay series, it provides accurate timing control for star-delta motor starting sequences to reduce starting current and improve motor protection.
This DIN rail mounted timer provides dedicated star-delta switching control with two independent changeover relay contacts. Its compact modular design allows easy installation inside electrical control panels while providing dependable operation for three-phase motor applications.
With a 150–500 V AC supply range, 10 A relay switching capability, two changeover contacts and adjustable timing ranges for star operation and transition delay, the IMO TDSD1 is suitable for industrial motor starters, machinery and automation systems.
Key Advantages
- Compact star-delta timer relay for industrial motor starting.
- Automatic star to delta changeover control for reduced motor starting current.
- 150–500 V AC operating supply suitable for industrial applications.
- Two independent changeover relay contacts for flexible control wiring.
- 10 A contact rating for reliable switching performance.
- DIN rail mounted design for straightforward control panel installation.
Key Features
- IMO TD star delta timer relay series.
- Model TDSD1.
- Star-delta motor starting function.
- 150–500 V AC supply voltage.
- 2 × changeover (C/O) relay contacts.
- 10 A relay contact rating.
- Star timing range: 1–30 s.
- Transition switching delay: 20–500 ms.
- DIN rail mounted modular enclosure.
Reliable Motor Starting Control for Industrial Applications
Star-delta timer relays such as the IMO TDSD1 control the sequence of a motor starter by initially connecting the motor windings in star configuration and then transferring operation to delta after the programmed time delay. This reduces the initial starting current of larger three-phase motors.
The TDSD1 is designed for control engineers, panel builders and machine manufacturers requiring a compact and reliable solution for automated motor starting systems. Its dedicated star-delta function simplifies integration into industrial control circuits.
Typical Applications
- Three-phase motor star-delta starters.
- Industrial machinery and production equipment.
- Pumps and compressor systems.
- Fans and ventilation equipment.
- Motor control panels.
- OEM automation systems.
