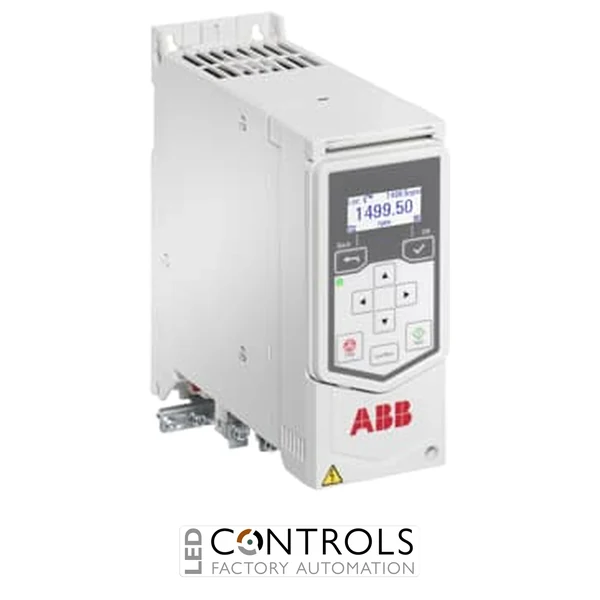

ABB ACS480-04-09A8-2 general purpose drive module, a compact 2.2 kW variable-torque (VT) / 1.5 kW constant-torque (CT) AC variable frequency drive with 9.8 A output current and three-phase 200–240 V AC input for industrial motor control applications.
£683.20
The ABB ACS480-04-09A8-2 is a compact and capable AC variable frequency drive (VFD) designed for efficient motor speed control in general industrial and light-duty automation applications. As part of the reliable ABB ACS480 general purpose drive series, it provides dependable performance, straightforward commissioning and flexible integration for everyday motor control tasks.
This drive module is suitable for a wide range of applications including compressors, fans, conveyors, pumps and simple machinery. Its compact IP20 open-type design makes it ideal for installation inside electrical control cabinets, while built-in control features help simplify setup and improve operational efficiency.
With a rated output power of 2.2 kW (VT / normal duty) or 1.5 kW (CT / heavy duty), a nominal output current of 9.8 A and a three-phase 200–240 V AC supply, the ACS480-04-09A8-2 is a practical choice for 230 V industrial motor control systems requiring reliable speed regulation and energy savings.
Variable frequency drives such as the ABB ACS480 regulate motor speed by adjusting output voltage and frequency. This allows equipment to run only as fast as required, helping improve process control, reduce energy consumption and minimise mechanical stress on motors and driven components.
The ACS480 series is designed as a ready-made general purpose drive platform for light industrial applications. Its compact construction, flexible control functionality and automation connectivity make it suitable for both new installations and retrofit projects.
| Power | 2.2 kW |
|---|---|
| Current | 9.8 A |
| Voltage | 240 V |
| Phase | Three Phase |
| IP Rating | IP20 |
| Series | ACS480 General Purpose Drives |
| Product ID | 3AXD50000217359 |
| EAN | 6438177513117 |
| Product type | LV AC general purpose drive module |
| Rated output power (VT / normal duty) | 2.2 kW |
| Rated output power (CT / heavy duty) | 1.5 kW |
| Nominal output current (IN) | 9.8 A |
| Output current, VT / normal duty (ILd) | 9.3 A |
| Output current, CT / heavy duty (IHd) | 7.8 A |
| Input voltage | 200–240 V AC |
| Input phases | 3-phase |
| Rated voltage class | 230 V AC |
| Output frequency | up to 500 Hz |
| Frequency | 50 / 60 Hz |
| Protection rating | IP20 |
| Enclosure type | Open type |
| Mounting type | Cabinet / panel mounting |
| Typical applications | Compressors, fans, conveyors and pumps |
| Frame size | R1 |
| Country of Manufacture | China |
| EMC Filter | None |
This drive is used to control the speed of AC motors in general industrial applications such as compressors, fans, conveyors, pumps and light machinery.
The ACS480-04-09A8-2 supports motors with a rated output power of 2.2 kW on variable-torque (normal duty) loads, or 1.5 kW on constant-torque (heavy duty) loads.
The drive operates from a three-phase 200–240 V AC supply.
The ACS480-04-09A8-2 has a nominal output current of 9.8 A.
The drive is typically installed inside electrical control cabinets or protected machine panels where IP20 open-type protection is suitable.
ABB ACS480 general purpose drives are widely used by engineers, panel builders and maintenance teams who need compact, reliable and efficient motor control for everyday industrial applications.
