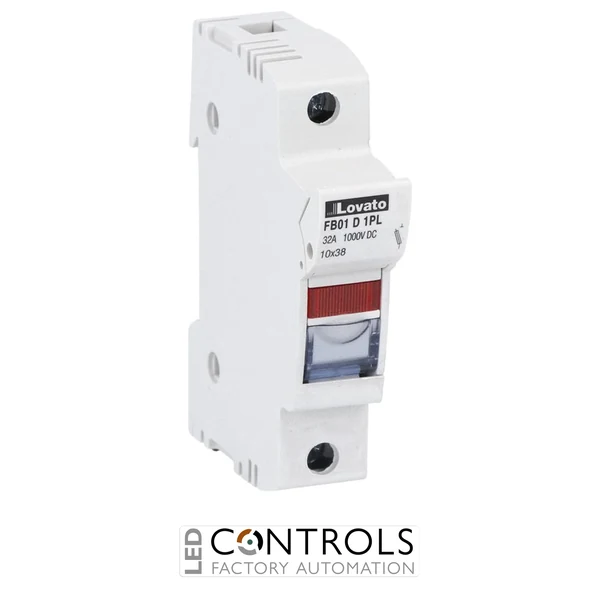

FB01D1PL - FUSE HOLDER 1P 10X38 1000V DC C/W IND.

FB01D1PL – FUSE HOLDER 1P 10X38 1000V DC C/W IND.

Lovato FB01D1PL DIN rail mounted photovoltaic fuse holder for 10 × 38 mm fuse links, 32 A, 1000 V DC, 1P configuration with integrated status indicator.

SKU: FB01D1PLMPN: FB01D1PL
Price
List Price £17.35 ex VAT
Your Price (ex VAT)
£17.35
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £17.35
Trade pricing is personalised to your account

Manufacturer Lead Time

£17.35

Why Choose the Lovato FB01D1PL Fuse Holder?

The Lovato FB01D1PL is a compact DIN rail mounted fuse holder designed for 10 × 38 mm cylindrical photovoltaic fuse links. Engineered specifically for DC solar applications, it provides safe, dependable circuit protection for photovoltaic strings, combiner boxes and renewable energy installations operating at up to 1000 V DC.

Rated at 32 A, the FB01D1PL features a single-pole (1P) configuration with an integrated status indicator that provides rapid visual identification of a blown fuse, helping reduce maintenance time and improve system availability. It is fully certified to IEC and UL standards for photovoltaic applications.

Its compact 1 DIN module design allows efficient use of panel space, while standard 35 mm DIN rail mounting enables straightforward installation into photovoltaic combiner boxes, inverter panels and industrial DC distribution systems.

Key Advantages

  • Genuine Lovato Electric photovoltaic fuse holder.
  • Designed for 10 × 38 mm cylindrical fuse links.
  • 32 A rated current at 1000 V DC.
  • Integrated status indicator for quick fault identification.
  • IEC and UL certified for photovoltaic installations.
  • Compact 1-module DIN rail design.

Key Features

  • Lovato FB01D1PL fuse holder.
  • Suitable for 10 × 38 mm photovoltaic fuse links.
  • Single-pole (1P) configuration.
  • 32 A IEC maximum rated current.
  • 1000 V DC IEC maximum rated voltage.
  • Integrated light status indicator.
  • Designed for photovoltaic applications.
  • Occupies just 1 DIN module.

Reliable Protection for Photovoltaic Installations

Photovoltaic fuse holders provide secure mounting and electrical connection for DC fuse links, protecting solar strings and associated equipment against overloads and fault currents. Correctly specified DC fuse holders are essential for maintaining safe operation in renewable energy installations.

The Lovato FB01D1PL combines compact dimensions, high-voltage DC capability and an integrated blown fuse indicator, making it an excellent choice for photovoltaic combiner boxes, inverter protection and industrial DC power systems.

Typical Applications

  • Photovoltaic combiner boxes.
  • Solar PV string protection.
  • DC distribution panels.
  • Renewable energy installations.
  • Industrial DC control systems.
  • Solar inverter protection.

Technical Specifications

Voltage 000 V
Phase Single Phase
Manufacturer Lovato Electric
Series FB
Model FB01D1PL
Product type Fuse holder
Fuse size 10 × 38 mm
Number of poles 1P
Operating voltage type DC
IEC maximum rated voltage 1000 V DC
IEC maximum rated current 32 A
Utilisation category DCPV0 1000 VDC
Status indicator Yes
Photovoltaic application Yes
Compliance IEC / UL certified
DIN modules 1
Mounting type 35 mm DIN rail
Protection rating IP20 (front)
Maximum conductor size 16 mm²
Operating temperature -20°C to +70°C
Weight approx. 65 g
EAN 8013975186671
HS Code 85389099
Poles 1-pole
Device Type Fuse base / holder
Fuse Type Cylindrical
Fuse Size 10x38 mm
Current 32 A

Frequently Asked Questions

What fuse size does the Lovato FB01D1PL accept?

The FB01D1PL is designed for 10 × 38 mm cylindrical photovoltaic fuse links.

What is the current rating of the FB01D1PL?

The fuse holder has a maximum rated current of 32 A.

What voltage is the FB01D1PL rated for?

The Lovato FB01D1PL is rated for applications up to 1000 V DC.

Does this fuse holder include a status indicator?

Yes. The FB01D1PL incorporates a built-in light status indicator to provide rapid visual indication of a blown fuse.

Is the FB01D1PL suitable for photovoltaic systems?

Yes. It is specifically designed and certified for photovoltaic DC applications and complies with recognised IEC and UL standards.

Trusted by Solar Installers Worldwide

Lovato Electric photovoltaic fuse holders are widely specified by solar installers, panel builders and electrical engineers for dependable DC protection, straightforward maintenance and reliable long-term performance.
