FB01D2PL - FUSE HOLDER 2P 10X38 1000V DC C/W IND.

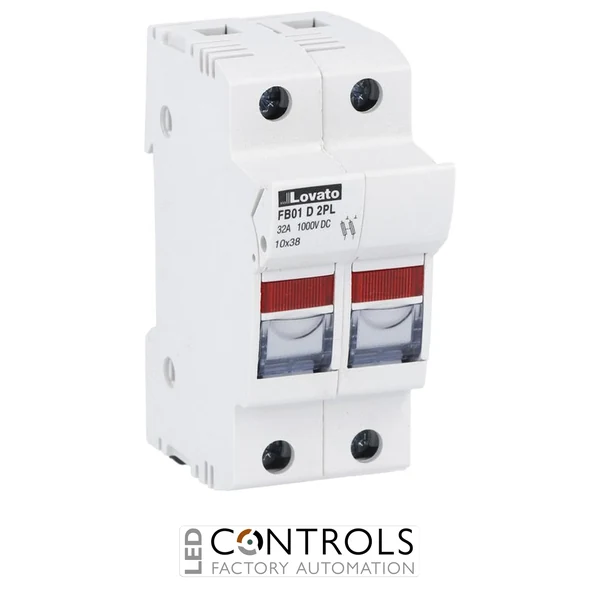

FB01D2PL – FUSE HOLDER 2P 10X38 1000V DC C/W IND.

Lovato FB01D2PL DIN rail mounted photovoltaic fuse holder for 10 × 38 mm fuse links, 32 A, 1000 V DC, 2P configuration with integrated status indicator.

SKU: FB01D2PLMPN: FB01D2PL
Price
List Price £33.68 ex VAT
Your Price (ex VAT)
£33.68
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £33.68
Trade pricing is personalised to your account

Manufacturer Lead Time

£33.68

Why Choose the Lovato FB01D2PL Fuse Holder?

The Lovato FB01D2PL is a compact DIN rail mounted fuse holder designed for 10 × 38 mm cylindrical photovoltaic fuse links. Engineered specifically for DC solar applications, it provides dependable protection for photovoltaic strings, combiner boxes and renewable energy systems operating at up to 1000 V DC.

Rated at 32 A, the FB01D2PL features a two-pole (2P) configuration and an integrated light status indicator, allowing rapid identification of a blown fuse to minimise maintenance time. Certified to both IEC and UL standards, it is suitable for demanding photovoltaic installations requiring recognised international compliance.

Its compact 2 DIN module design and standard 35 mm DIN rail mounting make installation straightforward in photovoltaic combiner boxes, inverter cabinets and industrial DC distribution systems while providing reliable long-term performance.

Key Advantages

  • Genuine Lovato Electric photovoltaic fuse holder.
  • Suitable for 10 × 38 mm cylindrical fuse links.
  • 32 A rated current at 1000 V DC.
  • Integrated light status indicator for quick fault detection.
  • IEC and UL certified for photovoltaic installations.
  • Compact 2-module DIN rail design for efficient panel layouts.

Key Features

  • Lovato FB01D2PL fuse holder.
  • Designed for 10 × 38 mm photovoltaic fuse links.
  • Two-pole (2P) configuration.
  • 32 A IEC maximum rated current.
  • 1000 V DC IEC maximum rated voltage.
  • Integrated blown fuse indicator.
  • Designed specifically for photovoltaic applications.
  • Occupies only 2 DIN modules.

Reliable Protection for Photovoltaic Installations

Photovoltaic fuse holders provide secure installation and electrical connection for DC fuse links, protecting solar arrays and associated equipment against overloads and fault currents. Selecting a fuse holder designed specifically for photovoltaic duty helps ensure safe operation under high-voltage DC conditions.

The Lovato FB01D2PL combines compact dimensions, reliable 1000 V DC performance and an integrated blown fuse indicator, making it an excellent choice for photovoltaic combiner boxes, inverter protection and industrial renewable energy installations.

Typical Applications

  • Photovoltaic combiner boxes.
  • Solar PV string protection.
  • DC distribution panels.
  • Renewable energy installations.
  • Industrial DC power systems.
  • Solar inverter protection.

Technical Specifications

Voltage 000 V
Manufacturer Lovato Electric
Series FB
Model FB01D2PL
Product type Fuse holder
Compatible fuse size 10 × 38 mm
Number of poles 2P
Operating voltage type DC
IEC maximum rated voltage 1000 V DC
IEC maximum rated current 32 A
Utilisation category DC20B 1000 V DC
Status indicator Yes
Photovoltaic application Yes
DIN modules 2
Mounting type 35 mm DIN rail
Protection rating IP20 (front)
Maximum conductor size 16 mm²
Operating temperature -20°C to +70°C
Weight approx. 130 g
Quantity per package 6
Package dimensions 227 × 85 × 65 mm
Volume 209.029 cm³
EAN 8013975188170
Conformity IEC/EN 60269-1, IEC/EN 60269-2, IEC/EN 60947-1, IEC/EN 60947-3, UL 4248-1, UL 4248-18, CSA C22.2 No. 4248.1, CSA C22.2 No. 4248.18
HS Code 85389099
Poles 2-pole
Device Type Fuse base / holder
Fuse Type Cylindrical
Fuse Size 10x38 mm
Current 32 A

Frequently Asked Questions

What fuse size does the Lovato FB01D2PL accept?

The FB01D2PL is designed for 10 × 38 mm cylindrical photovoltaic fuse links.

What is the current rating of the FB01D2PL?

The fuse holder has a maximum rated current of 32 A.

What voltage is the FB01D2PL rated for?

The Lovato FB01D2PL is rated for applications up to 1000 V DC.

Does this fuse holder include a status indicator?

Yes. The FB01D2PL features an integrated light status indicator for quick identification of a blown fuse.

Is the FB01D2PL suitable for photovoltaic applications?

Yes. It is specifically designed and certified for photovoltaic DC installations and complies with recognised IEC and UL standards.

Trusted by Solar Installers Worldwide

Lovato Electric photovoltaic fuse holders are trusted by solar installers, panel builders and electrical engineers for dependable DC circuit protection, straightforward maintenance and reliable long-term performance.
