FAQs
What is ABB 1SDA070472R1?

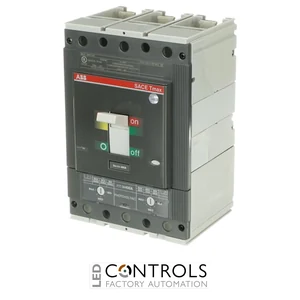

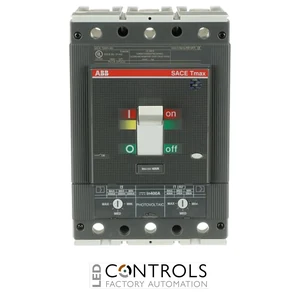

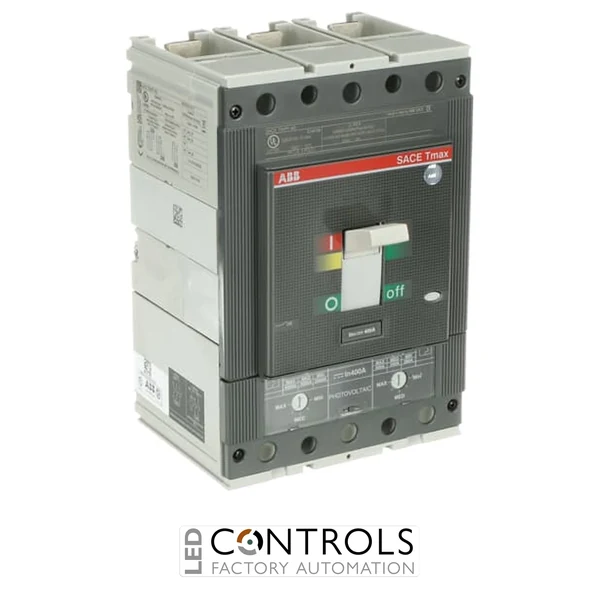

ABB 1SDA070472R1 is a T5N/PV 400 moulded case circuit breaker with a 400 A TMA thermomagnetic trip unit and three-pole configuration for high-voltage DC applications.
What is the rated current of ABB 1SDA070472R1?
The ABB 1SDA070472R1 has a rated current of 400 A and a 400 A frame rating.
What voltage is ABB 1SDA070472R1 designed for?
The 1SDA070472R1 is rated for operation at up to 1000 V DC, making it suitable for high-voltage photovoltaic and DC distribution applications.
What type of trip unit does ABB 1SDA070472R1 use?
The 1SDA070472R1 uses a TMA thermomagnetic trip unit with an adjustable magnetic release range of 2000–4000 A.
How many poles does ABB 1SDA070472R1 have?
ABB 1SDA070472R1 is a three-pole fixed circuit breaker with front terminals, designed for high-voltage DC photovoltaic and distribution circuits.
Trusted by
ABB is a globally established manufacturer of electrical distribution and automation technology, with the SACE Tmax range providing circuit protection solutions for industrial, commercial and renewable-energy applications.
{
"@context": "https://schema.org",
"@type": "Product",
"name": "ABB 1SDA070472R1 T5N/PV 400 UL TMA 400-4000 3P",
"sku": "1SDA070472R1",
"mpn": "1SDA070472R1",
"brand": {
"@type": "Brand",
"name": "ABB"
},
"description": "ABB 1SDA070472R1 T5N/PV 400 three-pole moulded case circuit breaker with a 400 A TMA thermomagnetic trip unit for 1000 V DC photovoltaic and high-voltage DC applications.",
"category": "Moulded Case Circuit Breaker",
"additionalProperty": [
{
"@type": "PropertyValue",
"name": "Rated Current",
"value": "400 A"
},
{
"@type": "PropertyValue",
"name": "Frame Rating",
"value": "400 A"
},
{
"@type": "PropertyValue",
"name": "Rated Operating Voltage",
"value": "1000 V DC"
},
{
"@type": "PropertyValue",
"name": "Poles",
"value": "3"
},
{
"@type": "PropertyValue",
"name": "Trip Unit",
"value": "TMA"
},
{
"@type": "PropertyValue",
"name": "Magnetic Release",
"value": "2000-4000 A"
},
{
"@type": "PropertyValue",
"name": "Short-Circuit Interrupting Rating",
"value": "5 kA at 1000 V DC"
}
]
}
{
