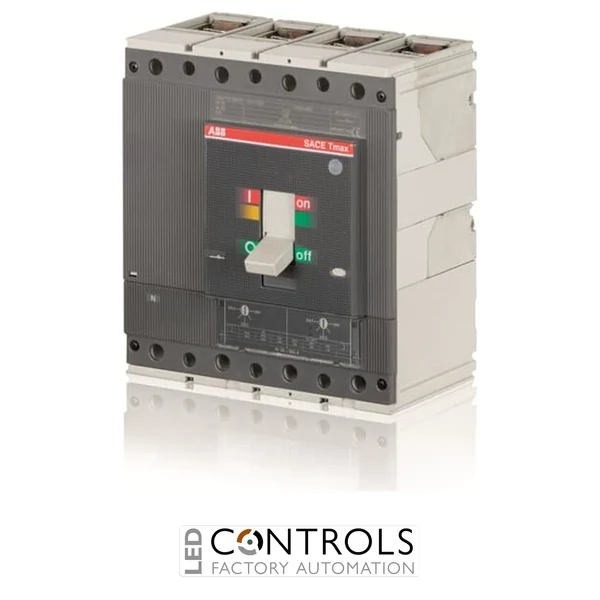

ABB T5V 400 TMA 320-3200 4P Fixed Front Terminals MCCB - 320 A - 1150 V AC/DC - Photovoltaic/DC

ABB T5V 400 TMA 320-3200 4P Fixed Front Terminals MCCB – 320 A – 1150 V AC/DC – Photovoltaic/DC

ABB T5V 400 TMA 320-3200 4P Fixed Front Terminals MCCB – 320 A – 1150 V AC/DC – Photovoltaic/DC (ABB order code 1SDA054531R1).

SKU: 1SDA054531R1MPN: 1SDA054531R1
Price
List Price £4,754.20 ex VAT
Your Price (ex VAT)
£4,754.20
Manufacturer Lead Time Estimated Delivery 5 weeks
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £4,754.20
Trade pricing is personalised to your account

Manufacturer Lead Time

£4,754.20

Why Choose the ABB 1SDA054531R1 T5V 400 MCCB?

The ABB 1SDA054531R1 is a fixed four-pole moulded case circuit breaker (MCCB) from the ABB SACE Tmax T series, designed for high-voltage AC and DC power distribution and circuit protection applications. This T5V 400 circuit breaker features an adjustable TMA thermal-magnetic trip unit, front terminals for copper cables and a fully rated neutral, providing reliable protection for demanding industrial electrical installations.

Designed for specialised high-voltage applications, the breaker has a rated operational voltage of up to 1,150 V AC and 1,000 V DC. Its four-pole configuration provides a neutral rated equally to the phases, while the fixed construction enables straightforward installation in suitable switchboards and electrical distribution assemblies.

With a rated current of 320 A and an adjustable magnetic trip range of 1,600–3,200 A, the 1SDA054531R1 is suited to transformer, generator, installation protection and industrial power distribution applications where dependable circuit interruption and switching are required.

Key Advantages

  • Fixed four-pole MCCB designed for high-voltage applications.
  • 320 A rated current for industrial power distribution.
  • Suitable for applications up to 1,150 V AC and 1,000 V DC.
  • Integrated TMA adjustable thermal-magnetic trip unit.
  • Fully rated neutral configuration for four-pole protection.
  • Front terminals designed for copper cable connections.

Key Features

  • ABB SACE Tmax T series.
  • T5V 400 frame size.
  • 320 A rated current.
  • Four-pole configuration with neutral rated equally to the phases.
  • TMA thermal-magnetic adjustable trip unit.
  • Adjustable magnetic release range of 1,600–3,200 A.
  • 1,150 V AC rated operational voltage.
  • 1,000 V DC rated operational voltage.
  • Fixed mounting construction with front terminals for copper cables.
  • 8 kV rated impulse withstand voltage.

High-Voltage Power Protection for Industrial Distribution

Moulded case circuit breakers provide controlled interruption and protection against excessive current and electrical faults in power distribution systems. The ABB Tmax T range is designed for industrial and specialised electrical applications requiring robust switching and circuit protection equipment.

The 1SDA054531R1 combines the T5V 400 breaker platform with an adjustable TMA thermal-magnetic trip unit. Its four-pole configuration provides protection of all phases together with a fully rated neutral, while the high-voltage design supports specialised AC and DC distribution systems.

Typical Applications

  • High-voltage industrial power distribution.
  • Transformer protection applications.
  • Generator protection applications.
  • Electrical installation protection.
  • Industrial switchboards and distribution assemblies.
  • High-voltage AC distribution systems.
  • High-voltage DC applications up to 1,000 V DC.

Technical Specifications

Mounting Type Fixed
Application Power distribution
Trip Unit Thermal-magnetic
Manufacturer ABB
Series SACE Tmax T
Model 1SDA054531R1
Product type Moulded case circuit breaker (MCCB)
Breaker type T5V 400
Rated current 320 A
Rated insulation voltage 1,150 V
Rated operational voltage 1,150 V AC / 1,000 V DC
Number of poles 4P
Trip unit TMA thermal-magnetic
Magnetic release range 1,600–3,200 A
Neutral 100% rated
Mounting type Fixed
Terminal arrangement Front terminals for copper cable
Rated impulse withstand voltage 8 kV
Rated short-time withstand current 5 kA for 1 s
Rated ultimate short-circuit breaking capacity 20 kA at 1,000 V AC; 12 kA at 1,150 V AC; 40 kA at 1,000 V DC
Rated service short-circuit breaking capacity 10 kA at 1,000 V AC; 6 kA at 1,150 V AC; 10 kA at 1,000 V DC
Power loss 13.6 W per pole at rated operating conditions
Electrical durability 7,000 cycles
Mechanical durability 20,000 cycles
Dimensions (H × W × D) 205 × 184 × 103.5 mm
Weight 5.8 kg
Reference standard IEC
EAN 8015644556327
Manufacturer part number 1SDA054531R1
Version Fixed (F), front terminals (F)
Device Type MCCB
Poles 4-pole
Current 320 A

Frequently Asked Questions

What is the ABB 1SDA054531R1 used for?

The ABB 1SDA054531R1 is a four-pole moulded case circuit breaker used for circuit protection and switching in industrial, transformer, generator and high-voltage power distribution applications.

What is the rated current of the ABB 1SDA054531R1?

The breaker has a 320 A rated current.

What voltage can the 1SDA054531R1 operate at?

The breaker has a rated operational voltage of 1,150 V AC and 1,000 V DC.

What type of trip unit does this circuit breaker have?

The 1SDA054531R1 uses an adjustable TMA thermal-magnetic trip unit with a magnetic release range of 1,600–3,200 A.

How many poles does the ABB 1SDA054531R1 have?

The circuit breaker has a four-pole configuration with a fully rated neutral.

Trusted by Industrial Electrical Engineers Worldwide

ABB SACE Tmax T circuit breakers are used in industrial power distribution and electrical protection systems where dependable circuit interruption, adjustable protection and robust high-voltage performance are required.
