Why Choose the IMO FireRaptor FRS-ESW1 Emergency Rapid Shutdown Switch?

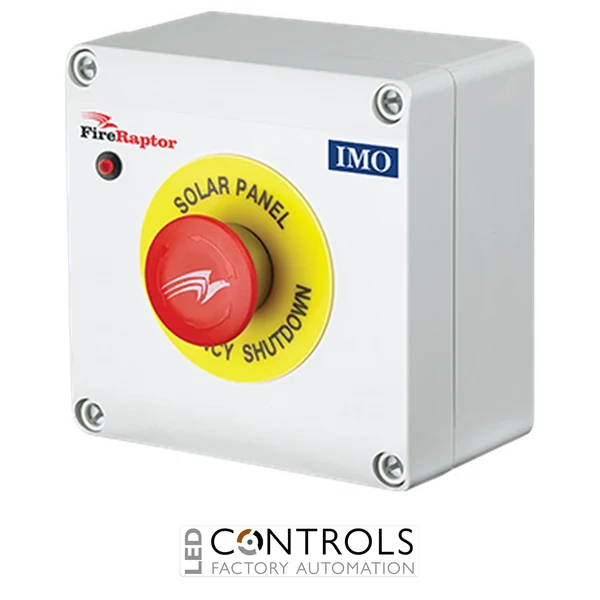

The IMO FRS-ESW1 FireRaptor Emergency Rapid Shutdown Switch is a dedicated emergency stop station designed for use with the IMO FireRaptor Rapid Shutdown System. Installed at an easily accessible location, the switch provides a simple and highly visible method of manually initiating rapid shutdown of photovoltaic (PV) strings, helping reduce hazardous DC voltages during emergencies or maintenance. It incorporates an internal 24 V DC power supply to interface directly with compatible FireRaptor rapid shutdown units.
Operation is straightforward—pressing the large emergency push button initiates rapid shutdown in less than one second, while resetting is achieved by twisting the button anti-clockwise. The enclosure is rated IP65, making it suitable for indoor or outdoor installation in commercial, industrial and residential photovoltaic systems.
Designed to integrate seamlessly with FireRaptor FRS-01 and compatible rapid shutdown devices, the FRS-ESW1 provides installers and emergency responders with a reliable manual shutdown solution that enhances PV system safety and supports modern solar installation practices.
Key Advantages
- Manual emergency shutdown of photovoltaic systems.
- Large red emergency push button for rapid activation.
- Integrated 24 V DC power supply.
- Compatible with IMO FireRaptor rapid shutdown units.
- Suitable for up to 40 solar panels (depending on system configuration).
- Weather-resistant IP65 enclosure.
- Simple installation with highly visible emergency access.
Key Features
- IMO FireRaptor Emergency Shutdown Switch.
- Model: FRS-ESW1.
- Large mushroom emergency stop push button.
- Twist-to-release reset mechanism.
- Internal 24 V DC power supply.
- LED power status indicator.
- AC mains powered.
- IP65 enclosure.
- Wall-mounted installation.
- Compatible with FireRaptor FRS-01 and supported FireRaptor systems.
Reliable Manual Emergency Shutdown
The FRS-ESW1 provides a clearly identifiable emergency shutdown point that can be installed at ground level or other accessible locations around a building. When activated, it immediately removes the 24 V DC control supply, causing connected FireRaptor rapid shutdown units to isolate the associated photovoltaic strings and reduce dangerous DC voltages.
Its integrated power supply and rugged enclosure simplify installation while providing dependable long-term operation for commercial and residential solar installations.
Typical Applications
- Residential photovoltaic installations.
- Commercial rooftop solar systems.
- Industrial PV installations.
- Ground-mounted solar arrays.
- Solar rapid shutdown safety systems.
- Fire service emergency access points.
