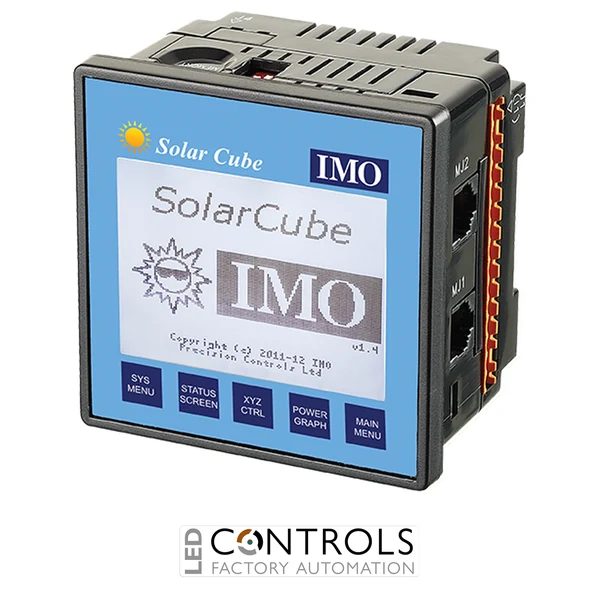

Why Choose the IMO SOLARCUBE-1AX Solar Tracker Controller?
The IMO SOLARCUBE-1AX is an intelligent configurable solar tracker controller designed to maximise photovoltaic energy production by accurately following the sun's movement throughout the day. Suitable for both single-axis and dual-axis solar tracking systems, the SolarCube provides an easy-to-configure, off-the-shelf solution for commercial, industrial and utility-scale solar installations. It features a built-in sun positioning algorithm, intuitive touchscreen interface and comprehensive data logging capabilities for efficient solar array management.
Designed for reliable outdoor operation, the SOLARCUBE-1AX incorporates a high-visibility monochrome touchscreen, MicroSD data storage, real-time clock and multiple communications interfaces including CAN, RS-232 and RS-485. Optional GPS positioning, digital compass integration and remote communications allow the controller to adapt easily to almost any solar tracking application.
Whether controlling a single array or larger tracking systems, the SolarCube continuously calculates the optimum panel position to improve energy yield while providing extensive monitoring, diagnostics and configurable safety functions for dependable long-term operation.
Key Advantages
- Configurable for single-axis or dual-axis solar tracking.
- Built-in solar positioning algorithm for maximum energy production.
- Outdoor-readable 3.5-inch monochrome touchscreen.
- MicroSD data logging for production and performance records.
- Supports GPS and 3D digital compass integration.
- Remote communications via CAN, RS-232 and RS-485.
- Compact IP65 (NEMA 4X) enclosure for demanding environments.
Key Features
- IMO SolarCube controller.
- Supports single-axis and dual-axis solar tracking.
- Built-in astronomical sun positioning algorithm.
- 3.5" outdoor-readable monochrome touchscreen.
- Resistive touch interface.
- MicroSD card support (up to 32 GB).
- Real-time clock.
- CAN communications port.
- Dual RS-232 / RS-485 serial communications.
- USB programming and data access.
- Password protected configuration.
- Integrated data logging.
- IP65 (NEMA 4X) front protection.
- 10–30 V DC power supply.
Intelligent Solar Tracking for Maximum Energy Yield
The SOLARCUBE-1AX automatically calculates the sun's position using astronomical algorithms together with GPS or manually entered location data to continuously optimise solar panel orientation. By accurately positioning each array throughout the day, the controller helps maximise energy generation and improve overall photovoltaic system efficiency.
Integrated monitoring functions record daily and lifetime energy production, power output trends and historical yield values. Optional remote communications, environmental sensors and safety functions make the controller suitable for both standalone and networked solar installations.
Typical Applications
- Single-axis solar tracking systems.
- Dual-axis solar tracking installations.
- Commercial photovoltaic arrays.
- Utility-scale solar farms.
- Industrial renewable energy projects.
- Research and demonstration solar systems.
- OEM solar tracker equipment.
