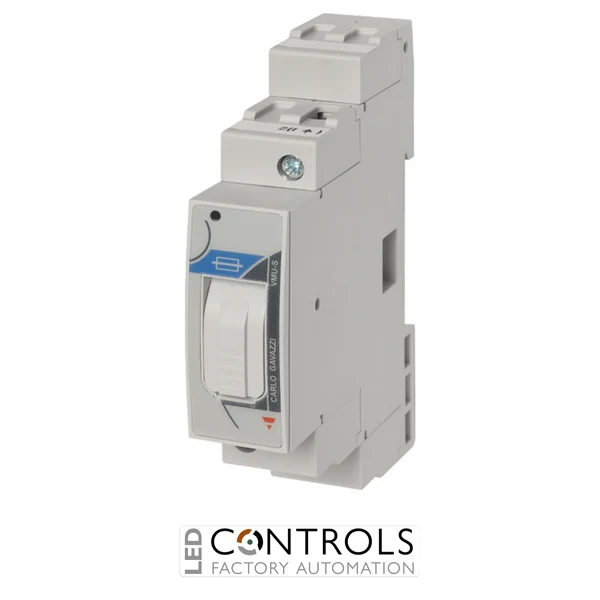

Why Choose the Carlo Gavazzi VMUSAV10XSFX String Measuring Unit?
The Carlo Gavazzi VMUSAV10XSFX is a compact PV string measuring unit designed for Carlo Gavazzi EOS-Array photovoltaic monitoring systems. It provides accurate string-level measurement for solar PV installations, helping operators monitor voltage, current, power and energy performance across renewable energy systems.
As part of the Carlo Gavazzi VMU-S Series, the VMUSAV10XSFX is designed for standard photovoltaic monitoring applications where reliable DC string measurement is required. It supports monitoring of key electrical variables including kWh, A, V and W, allowing system owners and engineers to identify underperforming strings and improve maintenance planning.
With a measurement range of 1000 V DC and 16 A, compact 17.5 × 90 × 67 mm DIN rail housing and UL approval, the VMUSAV10XSFX is ideal for PV combiner boxes, solar monitoring panels and industrial renewable energy installations.
Key Advantages
- Compact PV string measuring unit for EOS-Array systems.
- Measures key photovoltaic variables including kWh, A, V and W.
- 1000 V DC and 16 A range for standard PV string monitoring.
- DIN rail mounting for straightforward panel installation.
- No separate display, communication port or power supply required.
- UL approved for recognised installation compliance.
Key Features
- Carlo Gavazzi VMU-S Series.
- String measuring unit for EOS-Array.
- Designed for photovoltaic plant monitoring.
- 1000 V DC voltage range.
- 16 A current range.
- Measures energy, current, voltage and power.
- Compact 17.5 × 90 × 67 mm housing.
- DIN rail mounted modular construction.
Reliable String Measurement for Solar PV Systems
The VMUSAV10XSFX helps photovoltaic monitoring systems collect detailed electrical data from individual PV strings. By measuring voltage, current, power and energy, it enables more effective supervision of solar array performance and supports faster identification of faults or underperforming strings.
Its compact DIN rail format makes it suitable for integration into PV combiner boxes and monitoring enclosures, providing a practical measuring unit for commercial, industrial and utility-scale renewable energy systems.
Typical Applications
- EOS-Array photovoltaic monitoring systems.
- Solar PV string measurement.
- PV combiner box monitoring.
- Commercial photovoltaic installations.
- Industrial renewable energy monitoring panels.
- Solar performance analysis and maintenance planning.
