Why Choose the ABB OVR PV T1-T2 5-1000 P QS Surge Protection Device?

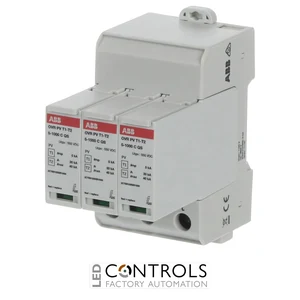

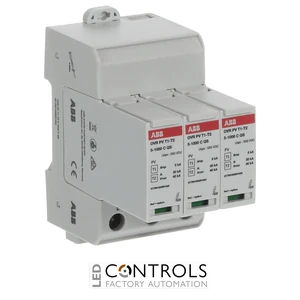

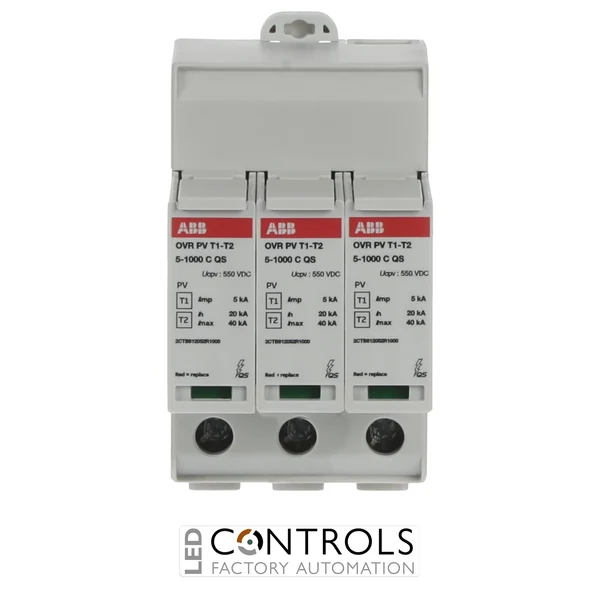

The ABB OVR PV T1-T2 5-1000 P QS, order code 2CTB812050R1000, is a pluggable Type 1+2 photovoltaic surge protection device (SPD) designed to protect DC photovoltaic installations against lightning currents and transient overvoltages. As part of the ABB OVR PV surge protection range, it provides coordinated protection for solar PV systems operating at nominal voltages up to 1000 V DC.
Designed specifically for photovoltaic applications, the OVR PV T1-T2 5-1000 P QS uses a 1+1 DC protection configuration and protects both L+ and L− lines. It provides an impulse current (Iimp) of 5 kA with a 10/350 µs waveform, a maximum discharge current (Imax) of 40 kA and a nominal discharge current (In) of 20 kA, providing effective protection against both lightning-current impulses and induced surge events.
With a 1000 V DC nominal system voltage, 1100 V DC maximum continuous operating voltage (Ucpv) and a 3.8 kV voltage protection level (Up), this SPD is engineered for modern photovoltaic arrays and DC distribution systems. Its pluggable three-module design, integrated thermal disconnector and visual status indication support straightforward installation, inspection and maintenance.
Key Advantages
- Combined Type 1+2 surge and lightning-current protection specifically designed for photovoltaic installations.
- 5 kA impulse current (Iimp) with a 10/350 µs waveform.
- 40 kA maximum discharge current (Imax) with an 8/20 µs waveform.
- 20 kA nominal discharge current (In) for dependable surge protection performance.
- 1100 V DC maximum continuous operating voltage for high-voltage PV strings.
- 3.8 kV voltage protection level (Up) helps limit transient voltage reaching downstream PV equipment.
- 11 kA photovoltaic short-circuit current rating (Iscpv).
- Pluggable QuickSafe construction enables straightforward cartridge replacement and maintenance.
Key Features
- ABB OVR PV surge protection range.
- Type 1+2 / Class I+II photovoltaic surge protection device.
- 1+1 DC protection configuration.
- Protection for L+ and L− photovoltaic lines.
- 5 kA impulse current (10/350 µs).
- 40 kA maximum discharge current (8/20 µs).
- 20 kA nominal discharge current (8/20 µs).
- 1100 V DC maximum continuous operating voltage.
- 3.8 kV voltage protection level.
- Integrated thermal disconnector.
- Integrated visual status indication.
- Pluggable protection cartridges for convenient maintenance.
- DIN rail mounting with three-module construction.
- IP20 protection rating for indoor installations.
- Designed specifically for photovoltaic DC networks.
Reliable Lightning and Surge Protection for Photovoltaic Systems
Photovoltaic installations can be exposed to transient overvoltages generated by lightning activity and switching events, particularly where long DC cables connect exposed solar arrays to inverters and other electrical equipment. Type 1+2 photovoltaic SPDs combine lightning-current handling with surge protection to help limit damaging transient voltages within the DC side of a solar installation.
The ABB OVR PV T1-T2 5-1000 P QS is designed specifically for high-voltage PV networks. Its 1100 V DC continuous operating capability, 5 kA 10/350 µs impulse-current rating and 40 kA maximum discharge current provide coordinated protection for photovoltaic arrays, combiner boxes and inverter DC inputs, while its pluggable cartridges simplify ongoing system maintenance.
Typical Applications
- Photovoltaic solar power installations.
- 1000 V DC PV arrays and strings.
- Solar PV combiner boxes.
- DC distribution and protection panels.
- PV inverter DC input protection.
- Commercial rooftop photovoltaic installations.
- Industrial and utility-scale solar PV systems.
- Protection against lightning currents and induced transient overvoltages.
