Why Choose the ABB OVR PV T1-T2 5-1500 P TS QS Surge Protective Device?

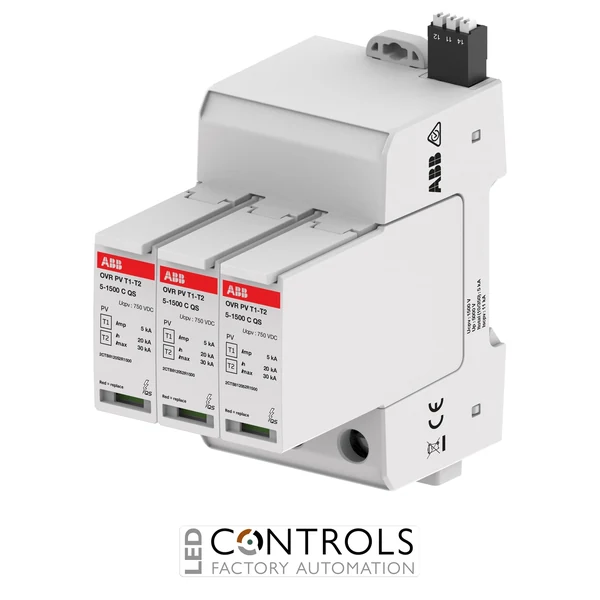

The ABB OVR PV T1-T2 5-1500 P TS QS is a high-performance combined Type 1 and Type 2 photovoltaic surge protective device (SPD) designed to protect DC solar installations against transient overvoltages and lightning surge currents. Engineered specifically for photovoltaic applications, it supports DC systems up to 1500 V and provides coordinated surge protection for PV arrays, combiner boxes, inverters and associated DC distribution equipment.
The OVR PV T1-T2 5-1500 P TS QS provides an impulse current Iimp of 5 kA using the 10/350 µs waveform, a nominal discharge current In of 20 kA and a maximum discharge current Imax of 30 kA using the 8/20 µs waveform. Its 5 kV voltage protection level helps limit transient voltages reaching downstream photovoltaic equipment.
Designed with ABB's QuickSafe technology, the device features pluggable protection cartridges, visual status indication and TS auxiliary signalling for remote monitoring. Its 1500 V DC rating, two protected lines and compact DIN-rail construction make it particularly suitable for modern utility-scale, commercial and industrial photovoltaic installations.
Key Advantages
- Combined Type 1 + Type 2 protection for photovoltaic DC installations.
- Designed for PV systems operating up to 1500 V DC.
- 5 kA impulse current Iimp using a 10/350 µs lightning-current waveform.
- 20 kA nominal discharge current using an 8/20 µs waveform.
- 30 kA maximum discharge current for effective transient surge protection.
- TS auxiliary contact enables remote monitoring of SPD status.
- Pluggable cartridges simplify servicing and replacement.
- Visual status indication provides convenient local condition monitoring.
- QuickSafe technology supports safe and dependable end-of-life disconnection.
Key Features
- ABB OVR PV QuickSafe series.
- Combined Type 1 + Type 2 / Class I + II SPD.
- Purpose-designed for photovoltaic DC systems.
- Two protected lines: L+ and L-.
- 1500 V DC rated voltage.
- 1500 V DC maximum continuous operating voltage Ucpv.
- 5 kA impulse current Iimp using a 10/350 µs waveform.
- 20 kA nominal discharge current In.
- 30 kA maximum discharge current Imax.
- 5 kV voltage protection level Up.
- 11 kA photovoltaic short-circuit current capability.
- Pluggable protection cartridges with visual status indication.
- Remote auxiliary signalling contact.
- IP20 protection for indoor installation.
Combined Type 1 and Type 2 Protection for 1500 V DC Photovoltaic Systems
Photovoltaic arrays can be exposed to substantial transient overvoltages generated by lightning activity and switching events. The ABB OVR PV T1-T2 5-1500 P TS QS combines Type 1 lightning-current protection with Type 2 surge protection, allowing it to handle 10/350 µs impulse currents while also limiting the 8/20 µs surge currents commonly encountered within electrical distribution systems.
The device is specifically engineered for photovoltaic networks and supports operating voltages up to 1500 V DC. Its pluggable QuickSafe construction simplifies maintenance, while visual and remote status indication make it easier to monitor protection condition in installations where continuity and efficient maintenance are important.
Typical Applications
- 1500 V DC photovoltaic installations.
- Utility-scale solar power plants.
- Commercial and industrial rooftop PV systems.
- Photovoltaic array combiner boxes.
- DC distribution and protection panels.
- Protection of photovoltaic inverter DC inputs.
- Solar installations requiring combined Type 1 and Type 2 surge protection.
- PV systems requiring remote SPD condition monitoring.
