Why Choose the ABB OVR PV T1-T2 5-1500 C QS Surge Protection Cartridge?

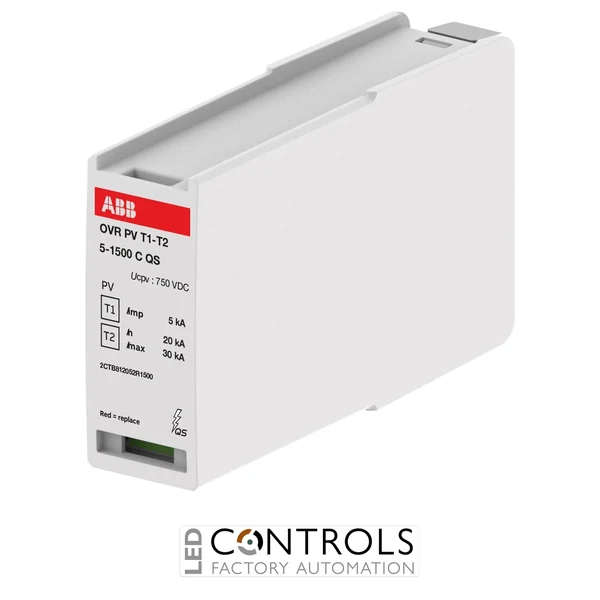

The ABB OVR PV T1-T2 5-1500 C QS, order code 2CTB812052R1500, is a replaceable Type 1+2 photovoltaic surge protection cartridge designed for ABB OVR PV surge protection assemblies operating at up to 1500 V DC. It provides combined lightning-current and transient overvoltage protection for the DC side of photovoltaic installations.
Designed for 1500 V DC photovoltaic systems, the OVR PV T1-T2 5-1500 C QS provides a total discharge current (Itotal) of 5 kA with a 10/350 µs waveform, a maximum discharge current (Imax) of 30 kA and a nominal discharge current (In) of 20 kA. Its 5 kV voltage protection level (Up) helps limit transient overvoltages reaching sensitive photovoltaic equipment.
The cartridge incorporates varistor technology, an integrated thermal disconnector and visual status indication. Its replaceable design allows a worn protection element to be exchanged without replacing the complete compatible SPD assembly, supporting straightforward maintenance of photovoltaic combiner boxes, DC distribution panels and inverter protection systems.
Key Advantages
- Combined Type 1+2 lightning-current and surge protection for photovoltaic DC systems.
- Designed specifically for 1500 V DC photovoltaic installations.
- 5 kA total discharge current (Itotal) with a 10/350 µs waveform.
- 30 kA maximum discharge current (Imax) with an 8/20 µs waveform.
- 20 kA nominal discharge current (In) with an 8/20 µs waveform.
- 5 kV voltage protection level (Up) for high-voltage PV applications.
- Integrated thermal disconnector and visual status indication support safe, convenient maintenance.
- Replaceable cartridge construction avoids the need to replace the complete compatible SPD assembly.
Key Features
- ABB OVR PV T1-T2 surge protection range.
- Type 1+2 / Class I+II photovoltaic surge protection cartridge.
- Designed for L+ and L− protection in photovoltaic DC systems.
- 1500 V DC nominal system voltage.
- 1500 V DC maximum continuous operating voltage.
- 5 kA total discharge current (10/350 µs).
- 30 kA maximum discharge current (8/20 µs).
- 20 kA nominal discharge current (8/20 µs).
- 5 kV voltage protection level.
- 11 kA photovoltaic short-circuit current rating.
- High-speed response of less than 25 ns.
- Integrated visual status indication.
- Integrated thermal disconnection.
- IP20 protection rating.
- Compact replaceable cartridge format for compatible ABB OVR PV assemblies.
Replaceable Type 1+2 Protection for 1500 V Photovoltaic Systems
High-voltage photovoltaic installations can be exposed to transient overvoltages generated by lightning activity and electrical switching events. Type 1+2 photovoltaic surge protection combines lightning-current handling with protection against induced transient surges, helping reduce potentially damaging overvoltages on the DC side of a solar installation.
The ABB OVR PV T1-T2 5-1500 C QS is the replaceable protection cartridge specified for the ABB OVR PV T1-T2 5-1500 P QS assembly. Its 1500 V DC rating, 5 kA total 10/350 µs discharge current and 30 kA maximum 8/20 µs discharge current make it suitable for maintaining coordinated surge protection in high-voltage photovoltaic arrays, combiner boxes and inverter installations.
Typical Applications
- 1500 V DC photovoltaic installations.
- Replacement cartridge for ABB OVR PV T1-T2 5-1500 P QS assemblies.
- Solar PV combiner boxes.
- Photovoltaic DC distribution panels.
- PV inverter DC input surge protection.
- Commercial rooftop solar installations.
- Industrial and utility-scale photovoltaic systems.
- Protection against lightning currents and induced transient overvoltages.
