Why Choose the ABB 1SCA123957R1001 OTDC100U11 DC Switch Disconnector?

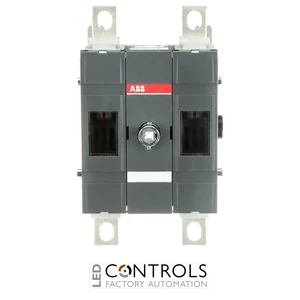

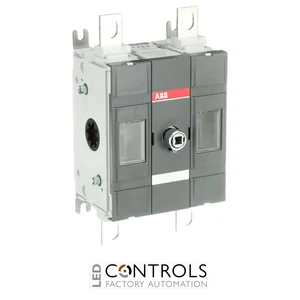

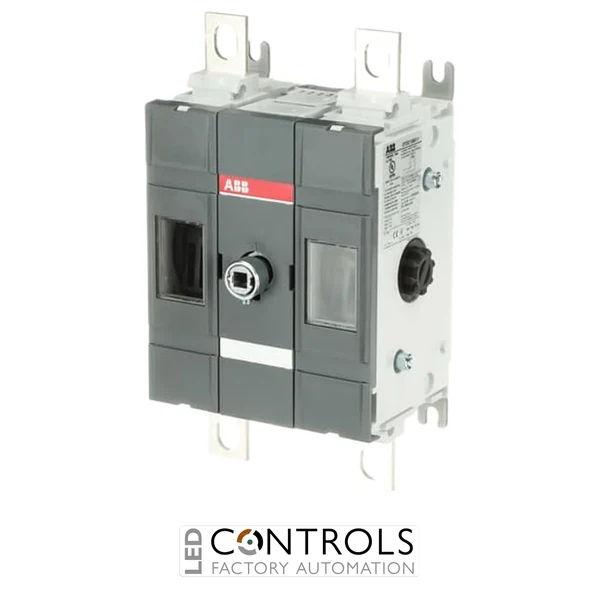

The ABB 1SCA123957R1001, also known as the OTDC100U11, is a heavy-duty DC switch disconnector engineered for the safe isolation of photovoltaic systems, battery energy storage installations and other high-current direct current applications. Rated at 100 A, it provides dependable switching performance and reliable isolation for demanding renewable energy systems.
Part of ABB's proven OTDC DC switch disconnector range, the OTDC100U11 is designed for panel mounting and complies with internationally recognised IEC standards for low-voltage switchgear. Its robust construction, low contact resistance and high electrical endurance make it ideal for commercial and industrial DC power installations.
The switch is supplied as a base-mounted unit with terminal hardware included, while compatible operating handles and shafts can be selected separately to suit the control panel design. This flexible configuration allows simple integration into photovoltaic combiner boxes, battery storage systems and industrial DC distribution equipment.
Key Advantages
- Designed for photovoltaic and DC power applications.
- 100 A rated operational current.
- Suitable for demanding renewable energy installations.
- Compact base-mounted construction.
- Reliable DC load switching and isolation.
- Compatible with ABB operating handles and shafts.
- High-quality industrial construction for long service life.
- Designed to IEC switch-disconnector standards.
Key Features
- ABB OTDC DC switch disconnector series.
- 100 A rated operational current.
- Single-circuit configuration.
- Base mounting design.
- Terminal bolt kit supplied.
- Handles and shafts available separately.
- Low power loss construction.
- Suitable for photovoltaic isolation.
- Industrial-grade switching mechanism.
- Designed for renewable energy applications.
Reliable DC Isolation for Renewable Energy Installations
DC switch disconnectors provide a safe method of isolating photovoltaic arrays, battery storage systems and other direct current equipment before maintenance or servicing. Reliable isolation helps protect personnel while ensuring equipment can be safely inspected and maintained.
The ABB OTDC100U11 combines robust mechanical construction with dependable electrical performance, making it a preferred choice for engineers, panel builders and renewable energy installers requiring long-term reliability.
Typical Applications
- Photovoltaic solar systems.
- Battery energy storage systems.
- Solar combiner boxes.
- Industrial DC distribution panels.
- Renewable energy infrastructure.
- Commercial electrical installations.
