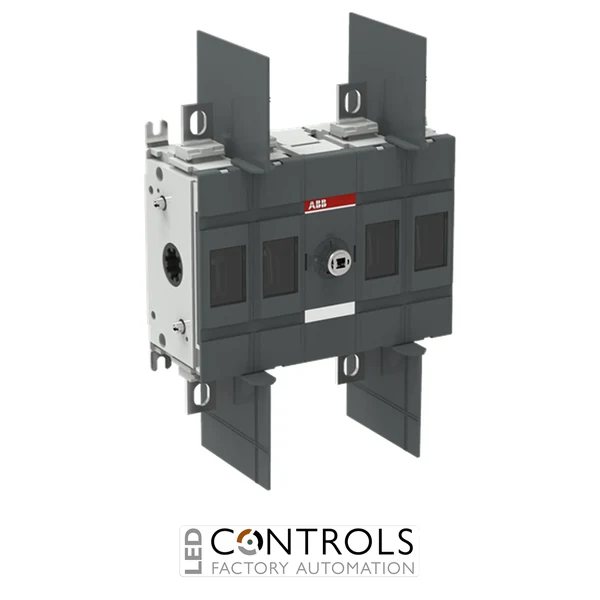

Why Choose the ABB 1SCA125824R1001 OTDC100E22 Switch Disconnector?
The ABB 1SCA125824R1001 is a high-performance OTDC100E22 DC switch disconnector designed for safe isolation and switching of high-current direct current circuits in photovoltaic, renewable energy and industrial applications. As part of the advanced ABB OTDC switch disconnector series, it provides reliable DC switching performance for demanding energy systems and electrical installations.
Designed for professional DC power applications, the OTDC100E22 features a robust four-pole double-circuit configuration with base mounting capability. The device includes the terminal bolt kit, while the handle and shaft are ordered separately, allowing flexible integration into custom switchgear assemblies and electrical enclosures.
With a 100 A rated operational current, 1000 V DC rated voltage and 4-pole configuration, the ABB 1SCA125824R1001 is ideal for photovoltaic installations, battery energy storage systems and industrial DC distribution applications requiring dependable circuit isolation.
Key Advantages
- High-performance DC switch disconnector for photovoltaic and industrial applications.
- 100 A rated current for demanding DC switching systems.
- 1000 V DC operating voltage capability.
- Four-pole double-circuit design for flexible isolation solutions.
- Base mounting design for switchgear integration.
- Reliable ABB construction for safe and long-term operation.
Key Features
- ABB OTDC switch disconnector series.
- OTDC100E22 model.
- Four-pole (4P) configuration.
- Double-circuit switching arrangement.
- 100 A rated current at 1000 V DC.
- Base mounting installation.
- Terminal bolt kit included.
- Handle and shaft ordered separately.
- Front-operated switching mechanism.
- Lug terminal connections.
- IP20 front protection rating.
- Suitable for photovoltaic utilisation applications.
Reliable DC Isolation for Renewable Energy and Industrial Systems
DC switch disconnectors such as the ABB OTDC100E22 provide safe and reliable isolation of high-current DC circuits during maintenance, installation and emergency shutdown procedures. They are essential components in systems where dependable switching performance and operator safety are required.
The ABB OTDC range is designed for photovoltaic systems, energy storage applications and industrial DC environments. With high voltage capability, robust construction and reliable switching performance, the 1SCA125824R1001 provides an effective solution for modern DC power infrastructure.
Typical Applications
- Large-scale solar photovoltaic installations.
- Battery energy storage systems.
- Industrial DC distribution panels.
- Renewable energy switchgear.
- Electrical control cabinets.
- OEM power equipment.
