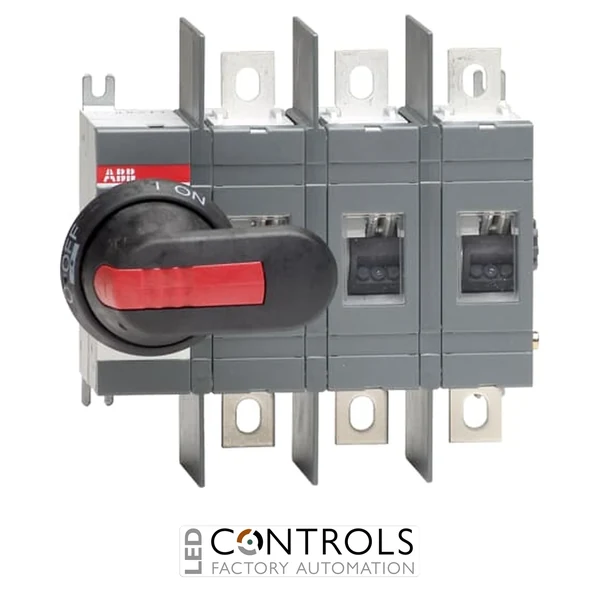

1SCA162959R1001 ABB OTHV200E03WP 3 Pole 800VAC to 1000VAC 200A Switch Disconnector

1SCA162959R1001 ABB OTHV200E03WP 3 Pole 800VAC to 1000VAC 200A Switch Disconnector

ABB OTHV200E03WP 3 pole front-operated base-mounted switch disconnector supplied with handle and shaft, rated at 200 A for 800 to 1000 V AC industrial isolation applications.

SKU: 1SCA162959R1001Alt SKU: OTHV200E03WPMPN: 1SCA162959R1001
Price on application Contact us for pricing and availability.
Call 01708 343600

Why Choose the ABB OTHV200E03WP Switch Disconnector?

The ABB OTHV200E03WP (1SCA162959R1001) is a premium 3-pole switch disconnector engineered to provide safe, reliable isolation for industrial and commercial electrical installations operating at 800 V AC to 1000 V AC. As part of the trusted ABB OTHV switch disconnector range, this complete package includes an adjustable operating shaft and IP65 pistol-grip handle, delivering straightforward installation and dependable long-term performance.

Designed as a front-operated, base-mounted switch disconnector, the OTHV200E03WP offers a 200 A AC-21A / AC-22A operational current rating and a 135 A AC-23A rating. The supplied black ON/OFF operating handle is IP65 protected, padlockable in the OFF position and incorporates a door interlock to improve operator safety during maintenance.

Manufactured to IEC 60947-3, the OTHV200E03WP is ideally suited to industrial switchboards, OEM machinery, renewable energy systems and power distribution applications where safe, dependable isolation is essential.

Key Advantages

  • Complete 3-pole switch disconnector supplied with handle and shaft.
  • 200 A operational current for demanding industrial applications.
  • Suitable for 800 V AC to 1000 V AC systems.
  • IP65 pistol-grip operating handle with padlock facility.
  • Front-operated, base-mounted construction.
  • Excellent mechanical durability for long service life.
  • Trusted ABB quality for dependable industrial isolation.

Key Features

  • ABB OTHV switch disconnector series.
  • Manufacturer Part Number: 1SCA162959R1001.
  • Model: OTHV200E03WP.
  • 3-pole switch disconnector.
  • Rated operational current: 200 A (AC-21A / AC-22A).
  • Rated operational current AC-23A: 135 A.
  • Rated operational voltage: 800–1000 V AC.
  • Supplied complete with adjustable shaft and IP65 operating handle.
  • Bolt / lug terminal connections.
  • Designed in accordance with IEC 60947-3.

Reliable Isolation for High Voltage Applications

The ABB OTHV200E03WP provides safe manual isolation of high-voltage AC electrical circuits, allowing maintenance and servicing to be carried out safely while minimising downtime. Its rugged construction and proven ABB switching technology ensure dependable operation in demanding industrial environments.

Supplied as a complete assembly with an adjustable shaft and IP65 operating handle, this switch disconnector offers fast installation, excellent operator safety and long-term reliability for industrial switchgear and power distribution systems.

Typical Applications

  • Industrial switchboards.
  • Power distribution systems.
  • Motor control centres.
  • OEM machinery.
  • Renewable energy installations.
  • High-voltage AC isolation.

Technical Specifications

Tick the specs you need, then view products that match.

Mounting Type Door / front mounting
Device Type Switch Disconnector
Supply Type AC
Current 200 A
Voltage 800 V
Phase Three Phase
IP Rating IP00
Manufacturer ABB
Series OTHV Switch Disconnectors
Model OTHV200E03WP
Manufacturer Part Number 1SCA162959R1001
Product type Switch disconnector
Number of poles 3
Rated operational current 200 A (AC-21A / AC-22A)
Rated operational current AC-23A 135 A
Conventional thermal current (Ith) 200 A
Rated operational voltage 800–1000 V AC
Rated insulation voltage (Ui) 1000 V
Rated impulse withstand voltage (Uimp) 12 kV
Mechanical durability 20,000 operations
Connection type Bolt / lug terminals
Protection Front IP00, handle IP65
Mounting Front operated, base mounted
Dimensions (H × W × D) 170 × 169.5 × 82.5 mm
HS Code 85365080
Country of Manufacture Finland
Poles 3-pole

Frequently Asked Questions

What is the ABB OTHV200E03WP used for?

It is a 3-pole switch disconnector designed for safely isolating high-voltage AC electrical circuits in industrial and commercial installations.

Is the operating handle included?

Yes. The OTHV200E03WP is supplied complete with an adjustable shaft and an IP65 black operating handle.

What is the rated operational current?

The switch is rated at 200 A for AC-21A and AC-22A applications, with a 135 A AC-23A rating.

What voltage systems is it suitable for?

The switch is suitable for installations operating between 800 V AC and 1000 V AC.

Where is this switch commonly installed?

Typical applications include industrial switchboards, OEM machinery, motor control centres, renewable energy systems and power distribution equipment.
