ABB T6D/PV 800 4P Fixed Front Terminals DC Switch-Disconnector - 800 A - 1100 V DC - Photovoltaic

ABB T6D/PV 800 4P Fixed Front Terminals DC Switch-Disconnector – 800 A – 1100 V DC – Photovoltaic

ABB T6D/PV 800 4P Fixed Front Terminals DC Switch-Disconnector – 800 A – 1100 V DC – Photovoltaic (ABB order code 1SDA069825R1).

SKU: 1SDA069825R1MPN: 1SDA069825R1
Price
List Price £5,483.90 ex VAT
Your Price (ex VAT)
£5,483.90
Manufacturer Lead Time Estimated Delivery 5 weeks
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £5,483.90
Trade pricing is personalised to your account

Manufacturer Lead Time

£5,483.90

ABB 1SDA069825R1 T6D/PV 800 4-Pole 1100 V DC Switch-Disconnector

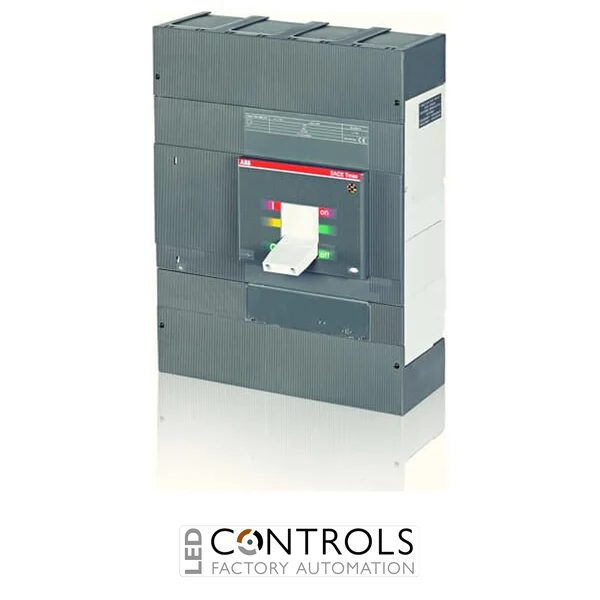

The ABB 1SDA069825R1 is a Tmax T6D/PV 800 switch-disconnector designed for photovoltaic and high-voltage DC electrical installations. This fixed four-pole device is rated for a continuous current of 800 A and an operating voltage of 1100 V DC.

Featuring front terminals and a robust moulded-case construction, the T6D/PV 800 provides reliable switching and isolation for demanding DC power distribution systems. It has a rated short-time withstand current of 9.6 kA for 1 s and is manufactured to IEC standards.

ABB 1SDA069825R1 is particularly suitable for photovoltaic power distribution, solar combiner equipment, DC switchboards and industrial renewable-energy installations requiring high-current four-pole switching and isolation at 1100 V DC.

Key Advantages

  • Designed specifically for photovoltaic and high-voltage DC applications up to 1100 V DC
  • 800 A rated uninterrupted current for high-capacity DC distribution
  • Four-pole configuration for comprehensive circuit isolation
  • Fixed construction with front terminals for practical switchgear installation
  • 9.6 kA rated short-time withstand current for 1 s
  • Robust Tmax moulded-case construction for industrial installations
  • Manufactured in accordance with IEC requirements
  • Compatible with dedicated Tmax PV jumper accessories for high-voltage DC configurations

Key Features

  • Manufacturer: ABB
  • Part number: 1SDA069825R1
  • Product family: Tmax T
  • Type: T6D/PV 800
  • Device function: switch-disconnector
  • Four-pole configuration
  • Fixed mounting
  • Front terminal connections
  • Rated for photovoltaic DC applications
  • 1100 V DC operating capability

Photovoltaic and High-Voltage DC Switching

The ABB T6D/PV 800 is engineered for switching and isolation within high-voltage photovoltaic DC systems. Its 1100 V DC rating and 800 A current capacity make it suitable for high-power DC distribution where dependable isolation is required.

The fixed four-pole arrangement with front terminals allows the device to be incorporated into suitable photovoltaic switchboards, combiner equipment and industrial DC assemblies. ABB also specifies dedicated jumper kits for T6D/PV 800 configurations, including the 1SDA070491R1 and 1SDA070492R1 accessories.

Typical Applications

  • Large-scale photovoltaic power distribution
  • Solar PV combiner and distribution equipment
  • High-voltage DC switchboards
  • DC isolation and switching systems
  • Solar inverter and DC-side electrical assemblies
  • Industrial DC power distribution
  • Renewable-energy electrical installations

Technical Specifications

Tick the specs you need, then view products that match.

Supply Type DC
Device Type Accessory
Rated uninterrupted current (Iu) 800 A
Rated operational voltage (Ue) 1100 V DC
Rated short-time withstand current (Icw) 9.6 kA for 1 s
Number of poles 4
Construction fixed
Terminal configuration front
Product size T6D/PV
Product range Tmax T
Product class moulded case circuit breaker
Standard IEC
Country of origin Italy
Package gross weight 14 kg
Manufacturer ABB
Series Tmax
Model T6D/PV 800
Manufacturer part number 1SDA069825R1
Rated current 800 A
Rated operational voltage 1100 V DC
Product type Moulded case switch-disconnector for PV/DC
Poles 4-pole

FAQs

What is ABB 1SDA069825R1?

ABB 1SDA069825R1 is a Tmax T6D/PV 800 four-pole fixed switch-disconnector designed for photovoltaic and high-voltage DC applications.

What is the rated current of ABB 1SDA069825R1?

The ABB 1SDA069825R1 has a rated uninterrupted current of 800 A.

What voltage is the ABB T6D/PV 800 rated for?

The ABB T6D/PV 800 1SDA069825R1 is rated for operation at up to 1100 V DC.

How many poles does ABB 1SDA069825R1 have?

ABB 1SDA069825R1 is a four-pole switch-disconnector with fixed construction and front terminals.

Where is ABB 1SDA069825R1 typically used?

The device is typically used in photovoltaic power distribution, solar combiner systems, high-voltage DC switchboards, DC isolation systems and industrial renewable-energy installations.

Trusted by Electrical Professionals

ABB 1SDA069825R1 combines the Tmax platform with an 800 A four-pole switch-disconnector design for dependable switching and isolation in 1100 V DC photovoltaic and industrial applications.
{ "@context": "https://schema.org", "@type": "Product", "name": "ABB 1SDA069825R1 T6D/PV 800 4-Pole 1100 V DC Switch-Disconnector", "sku": "1SDA069825R1", "mpn": "1SDA069825R1", "brand": { "@type": "Brand", "name": "ABB" }, "model": "T6D/PV 800", "description": "ABB 1SDA069825R1 T6D/PV 800 four-pole fixed switch-disconnector rated at 800 A and 1100 V DC for photovoltaic and high-voltage DC applications." } { "@context": "https://schema.org", "@type": "FAQPage", "mainEntity": [ { "@type": "Question", "name": "What is ABB 1SDA069825R1?", "acceptedAnswer": { "@type": "Answer", "text": "ABB 1SDA069825R1 is a Tmax T6D/PV 800 four-pole fixed switch-disconnector designed for photovoltaic and high-voltage DC applications." } }, { "@type": "Question", "name": "What is the rated current of ABB 1SDA069825R1?", "acceptedAnswer": { "@type": "Answer", "text": "The ABB 1SDA069825R1 has a rated uninterrupted current of 800 A." } }, { "@type": "Question", "name": "What voltage is the ABB T6D/PV 800 rated for?", "acceptedAnswer": { "@type": "Answer", "text": "The ABB T6D/PV 800 1SDA069825R1 is rated for operation at up to 1100 V DC." } }, { "@type": "Question", "name": "How many poles does ABB 1SDA069825R1 have?", "acceptedAnswer": { "@type": "Answer", "text": "ABB 1SDA069825R1 is a four-pole switch-disconnector with fixed construction and front terminals." } }, { "@type": "Question", "name": "Where is ABB 1SDA069825R1 typically used?", "acceptedAnswer": { "@type": "Answer", "text": "The device is typically used in photovoltaic power distribution, solar combiner systems, high-voltage DC switchboards, DC isolation systems and industrial renewable-energy installations." } } ] }
