ABB T7D/PV 1250 4P Fixed Front Terminals DC Switch-Disconnector - 1250 A - 1100 V DC - Stored Energy Operating Mechanism - Photovoltaic

ABB T7D/PV 1250 4P Fixed Front Terminals DC Switch-Disconnector – 1250 A – 1100 V DC – Stored Energy Operating Mechanism – Photovoltaic

ABB T7D/PV 1250 4P Fixed Front Terminals DC Switch-Disconnector – 1250 A – 1100 V DC – Stored Energy Operating Mechanism – Photovoltaic (ABB order code 1SDA069827R1).

SKU: 1SDA069827R1MPN: 1SDA069827R1
Price
List Price £6,831.54 ex VAT
Your Price (ex VAT)
£6,831.54
Manufacturer Lead Time Estimated Delivery 5 weeks
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £6,831.54
Trade pricing is personalised to your account

Manufacturer Lead Time

£6,831.54

ABB 1SDA069827R1 T7D/PV 1250 4-Pole 1100 V DC Switch-Disconnector with Stored-Energy Operating Mechanism

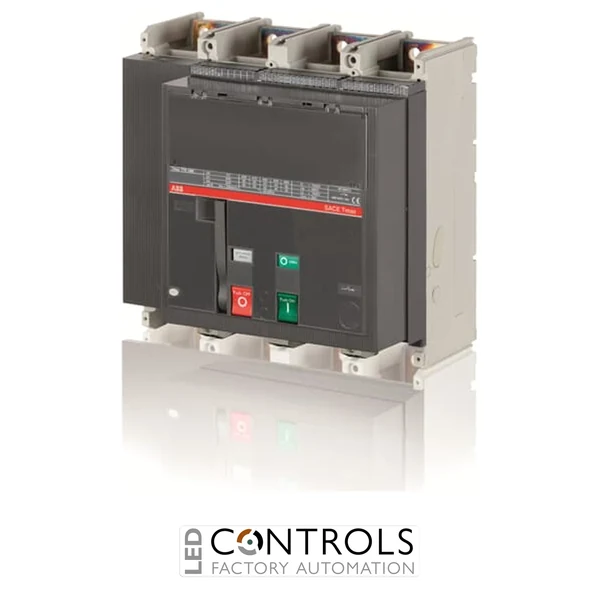

The ABB 1SDA069827R1 is a Tmax T7D/PV 1250 switch-disconnector designed for high-capacity photovoltaic and high-voltage DC electrical installations. This fixed four-pole device provides a rated uninterrupted current of 1250 A and is rated for operation at 1100 V DC.

Featuring front terminals and a stored-energy operating mechanism, the T7D/PV 1250 provides dependable switching and isolation for demanding DC power distribution systems. It has a rated short-time withstand current of 19.2 kA for 1 s, an 8 kV rated impulse withstand voltage and a robust Tmax moulded-case construction.

ABB 1SDA069827R1 is particularly suited to large photovoltaic power installations, solar DC distribution equipment, high-voltage DC switchboards and industrial renewable-energy systems requiring high-current four-pole switching and reliable isolation.

Key Advantages

  • Designed for photovoltaic and high-voltage DC applications up to 1100 V DC
  • 1250 A rated uninterrupted current for high-capacity DC distribution
  • Four-pole configuration for comprehensive circuit isolation
  • Fixed construction with front terminals for practical switchgear integration
  • 19.2 kA rated short-time withstand current for 1 s
  • 8 kV rated impulse withstand voltage
  • Stored-energy operating mechanism for controlled switching operation
  • Robust Tmax T7D/PV construction for demanding electrical installations
  • Manufactured in accordance with IEC 60947 requirements
  • RoHS compliant

Key Features

  • Manufacturer: ABB
  • Part number: 1SDA069827R1
  • Product family: Tmax T
  • Type: T7D/PV 1250 4p F F M 1100V DC
  • Device function: switch-disconnector
  • Four-pole configuration
  • Fixed mounting
  • Front terminal connections
  • Stored-energy operating mechanism
  • Rated for photovoltaic DC applications
  • Suitable for high-capacity DC distribution and isolation

Photovoltaic and High-Voltage DC Switching

The ABB T7D/PV 1250 is engineered for high-current switching and isolation within photovoltaic electrical systems operating at 1100 V DC. Its 1250 A current rating makes it suitable for substantial DC power distribution in large-scale solar and industrial renewable-energy installations.

The fixed four-pole configuration with front terminals and a stored-energy operating mechanism enables integration into suitable photovoltaic switchboards, DC distribution assemblies and high-capacity solar electrical equipment. ABB's Tmax PV range is designed specifically for DC applications at high operating voltages and provides dedicated solutions for photovoltaic switching and isolation.

Typical Applications

  • Large-scale photovoltaic power distribution
  • Solar PV combiner and DC distribution equipment
  • High-voltage DC switchboards
  • DC isolation and switching systems
  • Solar inverter and DC-side electrical assemblies
  • Industrial DC power distribution
  • Renewable-energy electrical installations

Technical Specifications

Tick the specs you need, then view products that match.

Supply Type DC
Device Type Accessory
Rated uninterrupted current (Iu) 1250 A
Rated operating voltage (Ue) 1100 V DC
Rated insulation voltage (Ui) 1100 V DC
Rated short-time withstand current (Icw) 19.2 kA for 1 s
Rated impulse withstand voltage (Uimp) 8 kV
Number of poles 4
Construction fixed
Terminal position front
Operating mechanism stored-energy mechanism
Power loss 47 W
Degree of protection IP20
Dimensions (H × W × D) 268 × 280 × 178 mm
Weight 12.5 kg
Standard IEC 60947
EAN 8015644705961
Manufacturer ABB
Series Tmax
Model T7D/PV 1250
Manufacturer part number 1SDA069827R1
Rated current 1250 A
Rated operational voltage 1100 V DC
Product type Moulded case switch-disconnector for PV/DC
Poles 4-pole

FAQs

What is ABB 1SDA069827R1?

ABB 1SDA069827R1 is a Tmax T7D/PV 1250 four-pole fixed switch-disconnector designed for photovoltaic and high-voltage DC applications, featuring a stored-energy operating mechanism.

What is the rated current of ABB 1SDA069827R1?

The ABB 1SDA069827R1 has a rated uninterrupted current of 1250 A.

What voltage is the ABB T7D/PV 1250 rated for?

The ABB T7D/PV 1250 1SDA069827R1 is rated for operation at up to 1100 V DC.

How many poles does ABB 1SDA069827R1 have?

ABB 1SDA069827R1 is a four-pole switch-disconnector with fixed construction, front terminals and a stored-energy operating mechanism.

Where is ABB 1SDA069827R1 typically used?

The device is typically used in large photovoltaic power distribution systems, solar DC switchboards, high-voltage DC distribution equipment, DC isolation systems and industrial renewable-energy installations.

Trusted by Electrical Professionals

ABB 1SDA069827R1 combines the Tmax T7D/PV platform with a 1250 A four-pole switch-disconnector and stored-energy operating mechanism for dependable switching and isolation in 1100 V DC photovoltaic and industrial applications.
