FAQs
What is the ABB 1SDA070448R1?

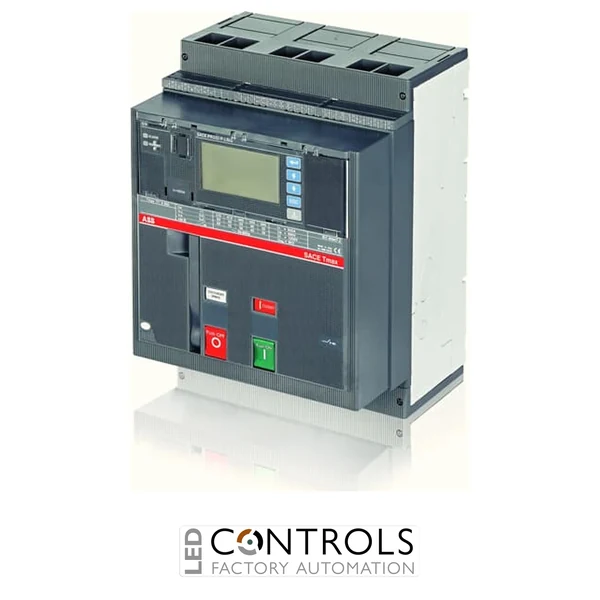

The ABB 1SDA070448R1 is a T7N-D/PV 1000 MCS UL four-pole fixed switch-disconnector with front terminals and a stored-energy operating mechanism for 1000 V DC applications.
What current is the ABB 1SDA070448R1 rated for?
The ABB 1SDA070448R1 has a rated uninterrupted current of 1000 A.
What voltage can the ABB 1SDA070448R1 handle?
The device has a rated operational voltage and rated insulation voltage of 1000 V DC, with an 8 kV rated impulse withstand voltage.
How many poles does the ABB 1SDA070448R1 have?
The 1SDA070448R1 is a four-pole switch-disconnector in a fixed configuration with front terminals.
Where is the ABB 1SDA070448R1 typically used?
It is intended for photovoltaic power systems, high-power DC distribution, solar inverter installations and other high-current DC switching and isolation applications.
Trusted by Electrical Professionals
ABB Tmax T-D/PV switch-disconnectors provide robust switching and isolation solutions for demanding photovoltaic, renewable-energy and high-power DC electrical installations.
{
"@context": "https://schema.org",
"@type": "Product",
"name": "ABB 1SDA070448R1 T7N-D/PV 1000 MCS UL 4-Pole 1000 V DC Switch-Disconnector",
"brand": {
"@type": "Brand",
"name": "ABB"
},
"mpn": "1SDA070448R1",
"gtin13": "8015644714949",
"description": "ABB 1SDA070448R1 is a T7N-D/PV 1000 MCS UL four-pole fixed switch-disconnector with front terminals and stored-energy operation, rated at 1000 A and 1000 V DC for high-power photovoltaic and DC applications.",
"category": "Switch-Disconnectors",
"additionalProperty": [
{
"@type": "PropertyValue",
"name": "Rated Current",
"value": "1000 A"
},
{
"@type": "PropertyValue",
"name": "Rated Voltage",
"value": "1000 V DC"
},
{
"@type": "PropertyValue",
"name": "Number of Poles",
"value": "4"
},
{
"@type": "PropertyValue",
"name": "Short-Time Withstand Current",
"value": "18 kA for 1 s"
},
{
"@type": "PropertyValue",
"name": "Impulse Withstand Voltage",
"value": "8 kV"
},
{
"@type": "PropertyValue",
"name": "Dimensions",
"value": "268 × 280 × 178 mm"
},
{
"@type": "PropertyValue",
"name": "Weight",
"value": "17.5 kg"
}
]
}
{
