Why Choose the Rittal SV 3076.000 Insert for Busbar Supports?

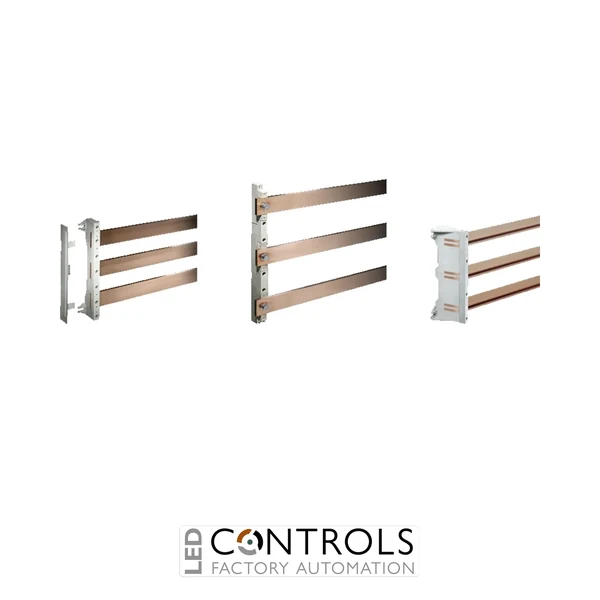

The Rittal SV 3076.000 is a purpose-designed busbar support insert for adapting the Rittal SV 3073.000 busbar support to accept 50 × 10 mm E-Cu copper busbars. As part of the Rittal SV power distribution system, it provides a manufacturer-matched solution for correctly positioning this busbar size within the compatible support.
Manufactured from fibreglass-reinforced thermoplastic polyester (PBT), the SV 3076.000 combines mechanical strength with the insulating properties required for professional power distribution assemblies. The material provides fire protection corresponding to UL 94-V0, while the insert is finished in RAL 7035 to coordinate with compatible Rittal system components.
When installed with the Rittal SV 3073.000 busbar support and 50 × 10 mm E-Cu busbars, the specified configuration supports a rated current of up to 1000 A. The insert adapts the support to a 50 mm busbar width, making it a dedicated accessory for high-current industrial switchgear and power distribution assemblies.
Key Advantages
- Purpose-designed Rittal busbar support insert for professional power distribution systems.
- Designed specifically for the SV 3073.000 busbar support.
- Adapts the support for 50 × 10 mm E-Cu copper busbars.
- Supports a rated current of up to 1000 A in the specified SV 3073.000 configuration.
- Fibreglass-reinforced PBT construction provides durable mechanical and insulating performance.
- UL 94-V0 fire protection characteristics.
- RAL 7035 finish coordinates with compatible Rittal components.
- Dedicated system accessory helps achieve correct busbar positioning within the support.
- Supplied in packs of 24 pieces for panel-building and assembly requirements.
Key Features
- Rittal SV power distribution accessory.
- Insert for adapting busbar dimensions.
- Compatible with SV 3073.000 busbar supports.
- Designed for 50 × 10 mm E-Cu busbars.
- Adapts the support to a 50 mm busbar width.
- Rated current up to 1000 A in the specified configuration.
- Manufactured from fibreglass-reinforced thermoplastic polyester (PBT).
- Fire protection corresponding to UL 94-V0.
- RAL 7035 colour.
- Compact system component for professional busbar assemblies.
- Pack quantity of 24 pieces.
Correct Busbar Adaptation for Rittal Power Distribution Systems
Busbar support inserts allow compatible supports to be configured for specific conductor dimensions while maintaining the intended positioning and support of the copper bars. The Rittal SV 3076.000 is specifically designed to adapt the SV 3073.000 for 50 × 10 mm E-Cu busbars, providing a coordinated solution using components from the Rittal SV system.
With a specified rated current of up to 1000 A for the SV 3073.000 and 50 × 10 mm busbar configuration, the insert is well suited to high-current industrial power distribution assemblies. Its insulating PBT construction and UL 94-V0 fire behaviour make it a practical component for professional switchgear, control panel and distribution system construction.
Typical Applications
- Rittal SV busbar power distribution systems.
- Adapting SV 3073.000 supports for 50 × 10 mm E-Cu busbars.
- Industrial switchboards and distribution panels.
- High-current power distribution assemblies.
- Electrical control panel construction.
- Machine and plant power distribution systems.
- Industrial switchgear assemblies.
- Panel-building and electrical system integration.
