Why Choose the Rittal SV 9340.004 Busbar Support?

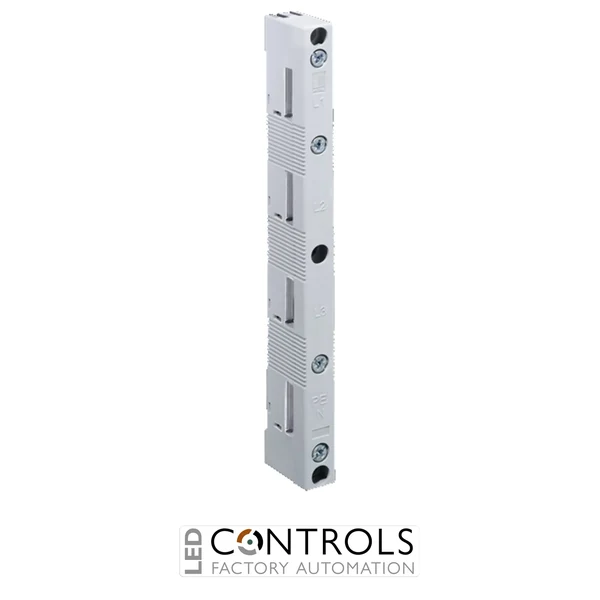

The Rittal SV 9340.004 is a robust 4-pole busbar support designed for Rittal RiLine power distribution systems using flat copper busbars. With a 60 mm bar centre distance, it provides secure and accurately spaced mounting of busbars within industrial switchgear, control panels and electrical distribution assemblies.
Manufactured from durable polyamide with flame-retardant properties in accordance with UL 94-V0, the SV 9340.004 is engineered for dependable mechanical and electrical performance. It supports flat copper busbars from 12 × 5 mm to 30 × 10 mm and is suitable for systems with rated currents up to approximately 800 A.
The support features internal attachment points and a compact RAL 7035 design, allowing straightforward integration into RiLine busbar assemblies. Its 1000 V three-phase rated operating voltage makes it suitable for demanding industrial power distribution installations where reliable insulation, spacing and busbar stability are essential.
Key Advantages
- Purpose-designed 4-pole busbar support for RiLine systems.
- 60 mm centre-to-centre busbar spacing for standardised installations.
- Suitable for flat copper busbars from 12 × 5 mm to 30 × 10 mm.
- Supports busbar systems with rated currents up to approximately 800 A.
- High-quality polyamide construction with UL 94-V0 flame-retardant performance.
- Designed for reliable insulation and mechanical support in industrial switchgear.
Key Features
- Rittal RiLine busbar support.
- 4-pole configuration.
- 60 mm busbar centre distance.
- Compatible with 12 × 5 mm to 30 × 10 mm flat copper busbars.
- 1000 V AC three-phase rated operating voltage.
- Polyamide construction with UL 94-V0 fire protection classification.
- Internal attachment arrangement for secure mounting.
- RAL 7035 finish for integration with Rittal distribution components.
Reliable Busbar Support for Power Distribution
Busbar supports maintain the required spacing, alignment and mechanical stability of conductive bars within electrical distribution assemblies. Correct support is particularly important in higher-current systems, where electromagnetic forces during switching or short-circuit conditions can place substantial mechanical loads on the busbar structure.
The Rittal SV 9340.004 provides a secure mounting platform for four flat copper busbars arranged at a standardised 60 mm pitch. Its insulating polyamide construction and compatibility with multiple busbar cross-sections make it suitable for building compact, modular power distribution systems in industrial enclosures and switchgear.
Typical Applications
- Industrial electrical distribution panels.
- Switchgear and control cabinets.
- Rittal RiLine busbar systems.
- Machine and plant power distribution assemblies.
- Motor control centres and automation panels.
- OEM electrical panel and switchboard construction.
