Why Choose the Rittal SV 9340.010 Busbar Support?

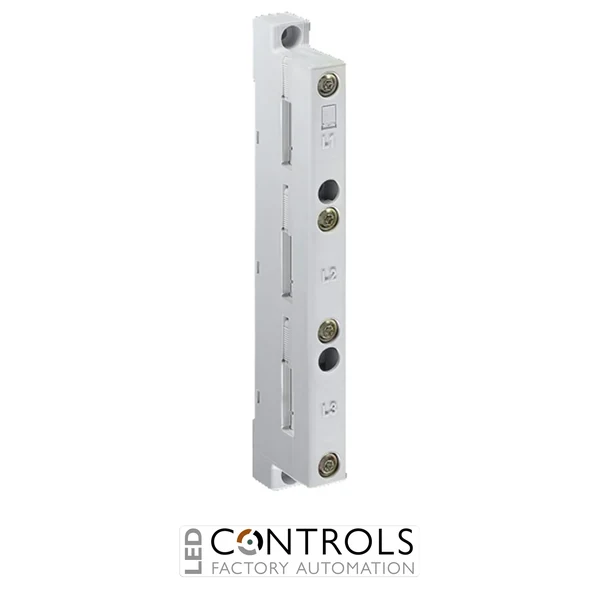

The Rittal SV 9340.010 is a robust 3-pole busbar support designed for flat copper busbars in Rittal RiLine power distribution systems. Featuring a 60 mm bar centre distance and external attachment, it provides secure positioning and consistent spacing of three busbars within industrial switchgear, distribution panels and electrical control assemblies.
Manufactured from durable polyamide with fire protection corresponding to UL 94-V0, the SV 9340.010 provides dependable electrical insulation and mechanical support. It is designed for flat copper busbars from 15 × 5 mm to 30 × 10 mm, while 12 × 5 mm and 12 × 10 mm busbars can also be accommodated when used with the appropriate Rittal SV 9340.090 spacer.
Designed for flat copper busbar systems up to 800 A, the SV 9340.010 has a rated operating voltage of 1000 V, 3~. Its external attachment arrangement and standardised 60 mm busbar spacing make it a practical component for constructing reliable, modular industrial power distribution systems.
Key Advantages
- Purpose-designed 3-pole busbar support for flat copper busbars.
- 60 mm centre-to-centre busbar spacing for standardised power distribution systems.
- Suitable for flat copper busbars from 15 × 5 mm to 30 × 10 mm.
- Can accommodate 12 × 5 mm and 12 × 10 mm busbars with Rittal SV 9340.090 spacers.
- Designed for flat copper busbar systems up to 800 A.
- Durable polyamide construction with UL 94-V0 flame-retardant performance.
- External attachment provides practical installation within distribution assemblies.
Key Features
- Rittal RiLine busbar support.
- 3-pole configuration.
- 60 mm busbar centre distance.
- Designed for 15 × 5 mm to 30 × 10 mm flat copper busbars.
- 1000 V, 3~ rated operating voltage.
- Suitable for busbar systems up to 800 A.
- External attachment design.
- Polyamide construction with fire protection corresponding to UL 94-V0.
- RAL 7035 colour for integration with Rittal power distribution equipment.
Reliable Busbar Support for Industrial Power Distribution
Busbar supports maintain the required alignment, spacing and mechanical stability of conductive bars within electrical distribution systems. Reliable support is particularly important in high-current installations, helping maintain the intended busbar arrangement and providing electrical insulation between the conductors and surrounding assembly.
The Rittal SV 9340.010 securely supports three flat copper busbars at a standardised 60 mm centre distance. Its external attachment configuration simplifies integration into compatible Rittal power distribution assemblies, while the range of supported copper bar dimensions allows panel builders to configure the system according to the required current-carrying capacity.
Typical Applications
- Industrial electrical distribution panels.
- Switchgear and switchboard assemblies.
- Rittal RiLine power distribution systems.
- Motor control centres and automation cabinets.
- Machine and plant power distribution.
- Industrial control panel construction.
- OEM electrical distribution assemblies.
