Why Choose the Rittal SV 9340.050 Busbar Support?

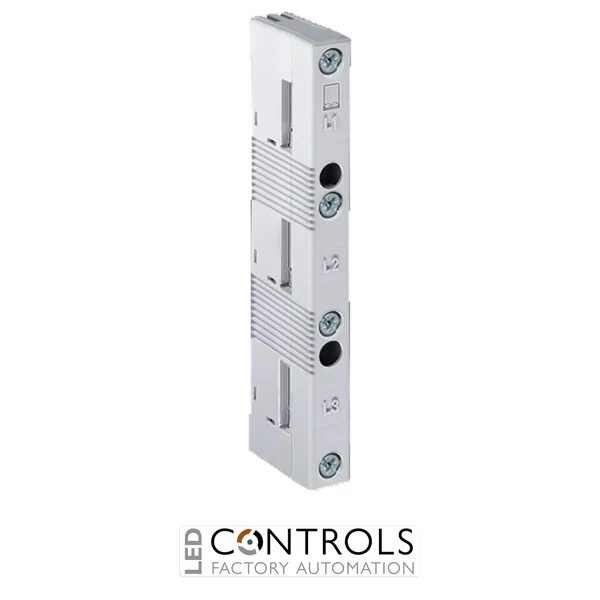

The Rittal SV 9340.050 is a 3-pole UL-certified busbar support designed for flat copper busbars within the Rittal RiLine60 power distribution system. Featuring a standard 60 mm centre-to-centre busbar spacing, it provides secure mechanical support and precise positioning for professional industrial switchgear and power distribution assemblies.
Designed for flat E-Cu busbars from 12 × 5 mm to 30 × 10 mm, the SV 9340.050 supports RiLine60 configurations up to 800 A. Its internal attachment design enables organised installation, while the durable polyamide construction provides electrical insulation and meets UL 94-V0 fire protection requirements.
The support is rated for operating voltages of up to 1,000 V AC, 3-phase and 1,500 V DC. It is also UL + C-UL listed and has published SCCR ratings dependent on busbar dimensions, support spacing and the protective device used, making it suitable for carefully engineered industrial power distribution systems.
Key Advantages
- 3-pole RiLine60 busbar support for professional industrial power distribution.
- Standard 60 mm centre-to-centre spacing for compatible RiLine60 components.
- Accommodates flat copper busbars from 12 × 5 mm to 30 × 10 mm.
- Designed for flat copper busbar systems up to 800 A.
- UL-certified design with UL + C-UL listing.
- Durable polyamide construction with UL 94-V0 fire protection.
Key Features
- Rittal RiLine60 busbar support.
- 3-pole configuration.
- 60 mm busbar centre-to-centre spacing.
- Suitable for busbars from 12 × 5 mm to 30 × 10 mm.
- Internal attachment design.
- 20 mm construction width.
- 190 mm length.
- Manufactured from polyamide.
- RAL 7035 colour.
- UL 94-V0 fire protection.
- Rated operating voltage up to 1,000 V AC, 3-phase.
- Rated operating voltage up to 1,500 V DC.
Secure Busbar Support for RiLine60 Power Distribution
Correct busbar support is essential for maintaining conductor spacing, mechanical stability and the designed short-circuit performance of an electrical distribution assembly. The Rittal SV 9340.050 securely positions three flat copper busbars at a consistent 60 mm centre-to-centre spacing, creating the standardised geometry required by compatible RiLine60 components.
The achievable short-circuit current rating depends on the selected busbar dimensions, support spacing and protective device. Rittal publishes UL SCCR configurations for the SV 9340.050 ranging from 14 kA at 600 V through to 73 kA at 600 V for specified arrangements, allowing designers to select a configuration appropriate to the requirements of the completed switchgear assembly.
Typical Applications
- Rittal RiLine60 power distribution systems.
- Industrial switchgear and distribution panels.
- 3-phase flat copper busbar assemblies.
- Industrial control and automation cabinets.
- Machine and production-line power distribution.
- OEM switchgear and electrical panel building.
