Why Choose the Rittal SV9341.050 PLS 800 UL Busbar Support?

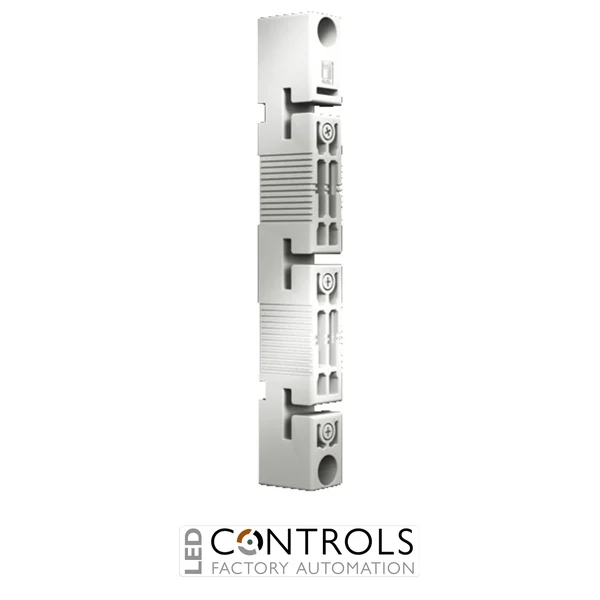

The Rittal SV9341.050 is a high-quality UL-approved busbar support system component designed for secure installation of PLS 800 special busbars within industrial power distribution assemblies. As part of the Rittal RiLine60 busbar system, this 3-pole support provides reliable mechanical positioning, electrical insulation and certified performance for low-voltage switchgear applications.
Designed specifically for PLS 800 special busbars, the SV9341.050 provides secure top mounting and internal attachment within Rittal power distribution systems. Its robust polyamide construction with UL 94-V0 fire protection ensures dependable operation in demanding industrial environments, with UL approval for AC applications when used with the required base tray.
With a 60 mm bar centre distance and compatibility with 3-pole PLS 800 busbar configurations, the Rittal SV9341.050 is ideal for creating safe and organised power distribution solutions requiring UL-certified components.
Key Advantages
- Certified UL design busbar support for Rittal RiLine60 power distribution systems.
- Compatible with PLS 800 special busbars for industrial applications.
- 3-pole configuration with 60 mm bar centre distance.
- Suitable for top mounting with internal attachment.
- Manufactured from durable polyamide with UL 94-V0 fire protection.
- Supports reliable and space-efficient low-voltage power distribution assemblies.
Key Features
- Rittal RiLine60 busbar system component.
- PLS 800 busbar compatibility.
- UL design 3-pole busbar support.
- 60 mm centre-to-centre busbar spacing.
- 1000 V AC rated operating voltage.
- 1500 V DC rated operating voltage.
- UL and C-UL listed approval for AC applications.
- Internal attachment design for secure installation.
- Suitable for PLS 800 and PLS 1600 special busbars.
Reliable Power Distribution with Rittal RiLine60
The Rittal RiLine60 system provides a modular solution for low-voltage power distribution, allowing engineers and panel builders to integrate busbars, supports and connection components efficiently. The SV9341.050 busbar support maintains correct conductor spacing while providing insulation and mechanical stability.
Designed for industrial switchgear manufacturers and automation engineers, this UL design support enables the creation of safe and reliable power distribution systems for applications requiring certified components and dependable electrical performance.
Typical Applications
- UL-compliant low-voltage switchgear assemblies.
- Industrial control panels and electrical cabinets.
- Power distribution boards.
- Machine building and automation systems.
- Rittal RiLine60 busbar installations.
- Industrial energy distribution applications.
