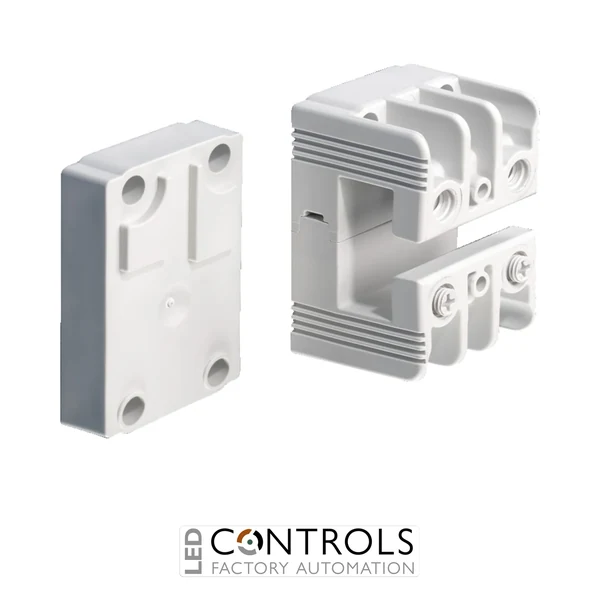

Why Choose the Rittal SV9342.030 RiLine60 Busbar Support PLS 1600 1-Pole?
The Rittal SV9342.030 is a durable RiLine60 PLS 1600 busbar support designed to provide secure mechanical mounting and electrical insulation for high-current power distribution systems. As part of the Rittal SV series, it is specifically developed for PLS 1600 busbars used in industrial switchgear and electrical distribution assemblies.
This single-pole busbar support includes a raised section for stepped configuration of PLS busbars and allows multi-pole systems to be created by baying supports with 60 mm bar centre distance. It is suitable for both AC and DC applications, providing flexible installation options for modern power distribution systems.
Manufactured from polyamide with UL 94-V0 fire protection and finished in RAL 7035, the SV9342.030 provides reliable insulation, mechanical strength and long-term performance within Rittal RiLine60 busbar assemblies.
Key Advantages
- Designed for Rittal RiLine60 PLS 1600 busbar systems.
- Single-pole configuration for flexible power distribution layouts.
- Supports PLS 1600 E-Cu busbars.
- Allows creation of multi-pole systems using bayed supports.
- 60 mm bar centre distance supports standardised RiLine60 configurations.
- High-quality polyamide construction with UL 94-V0 fire protection.
Key Features
- Rittal SV RiLine60 accessory series.
- PLS 1600 busbar support design.
- 1-pole configuration.
- Suitable for AC and DC applications.
- Rated operating voltage: 1000 V AC / 1500 V DC.
- 60 mm busbar centre distance.
- Construction width: 40 mm.
- Includes raised section for stepped PLS busbar arrangement.
Reliable Support for High-Current Power Distribution
The Rittal SV9342.030 busbar support provides the essential mechanical stability and insulation required for professional power distribution systems. It enables secure installation of PLS 1600 busbars while maintaining correct spacing and reliable electrical separation.
Designed for industrial panel builders and switchgear manufacturers, this RiLine60 accessory helps create safe, efficient and maintainable electrical distribution assemblies for demanding applications.
Typical Applications
- Industrial switchgear assemblies.
- High-current power distribution panels.
- Rittal RiLine60 busbar systems.
- Machine building control cabinets.
- Industrial electrical enclosures.
- AC and DC distribution systems.
