Why Choose the Rittal SV 9342.050 PLS 1600 Busbar Support?

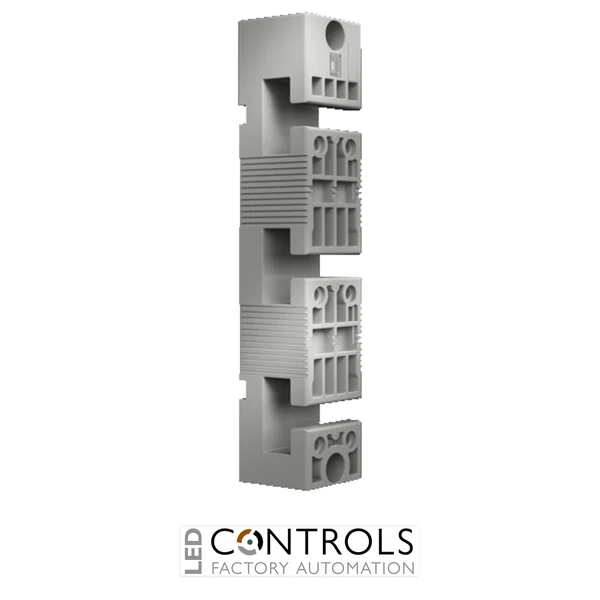

The Rittal SV 9342.050 is a robust 3-pole busbar support designed specifically for Rittal PLS 1600 special busbars within RiLine60 power distribution systems. Featuring a 60 mm bar centre distance and internal attachment, it provides secure mechanical support and precise positioning for high-current busbar assemblies.
Manufactured from durable polyamide with fire protection corresponding to UL 94-V0, the SV 9342.050 is engineered for demanding industrial electrical installations. It supports a rated operating voltage of 1000 V AC, 3-phase and 1500 V DC, subject to the applicable busbar arrangement and system conditions.
The support is designed for top-mounting and is specifically compatible with PLS 1600 special busbars. For UL applications, Rittal specifies that a base tray is required, and the UL approval applies in conjunction with AC applications. Its compact 36 mm construction width and 190 mm length make it suitable for space-efficient industrial power distribution assemblies.
Key Advantages
- Purpose-designed 3-pole busbar support for PLS 1600 special busbars.
- 60 mm centre-to-centre busbar spacing for standardised RiLine60 assemblies.
- Designed for top-mounting within compatible busbar systems.
- Internal attachment provides secure mechanical installation.
- Polyamide construction with UL 94-V0 fire protection.
- 1000 V AC, 3-phase rated operating voltage.
- Supports 1500 V DC applications subject to the busbar arrangement.
- UL and C-UL listed for applicable AC applications.
Key Features
- Rittal RiLine60 PLS busbar support.
- PLS 1600 special busbar compatibility.
- 3-pole configuration.
- 60 mm bar centre distance.
- Top-mounting design.
- Internal attachment.
- 1000 V AC, 3-phase rated operating voltage.
- 1500 V DC rated operating voltage.
- Polyamide construction with UL 94-V0 fire protection.
- 36 mm construction width.
- 190 mm length.
- Compatible with PLS 1600 busbars including Rittal models 3516.000, 3527.000, 3528.000, 3528.010 and 3529.000.
Reliable Support for High-Current Busbar Systems
Busbar supports provide the mechanical positioning and insulation required to build safe and dependable electrical distribution systems. Correct spacing and secure attachment are particularly important in high-current assemblies, where mechanical forces can occur during fault conditions.
The Rittal SV 9342.050 is engineered specifically for PLS 1600 special busbars and maintains a standardised 60 mm centre distance between the three conductors. Its top-mounting design and internal attachment allow the support to be integrated into compatible RiLine60 assemblies, while its insulating polyamide construction provides the required electrical separation.
For installations requiring UL approval, the use of a compatible base tray is compulsory. Rittal also specifies that the UL approval applies only in conjunction with AC applications, making correct system configuration essential when designing an approved installation.
Typical Applications
- Rittal RiLine60 power distribution systems.
- PLS 1600 high-current busbar assemblies.
- Industrial electrical distribution panels.
- Switchgear and switchboard construction.
- Machine and plant power distribution systems.
- Industrial control and automation cabinets.
- High-current OEM electrical distribution assemblies.
- UL-compliant industrial power distribution installations.
