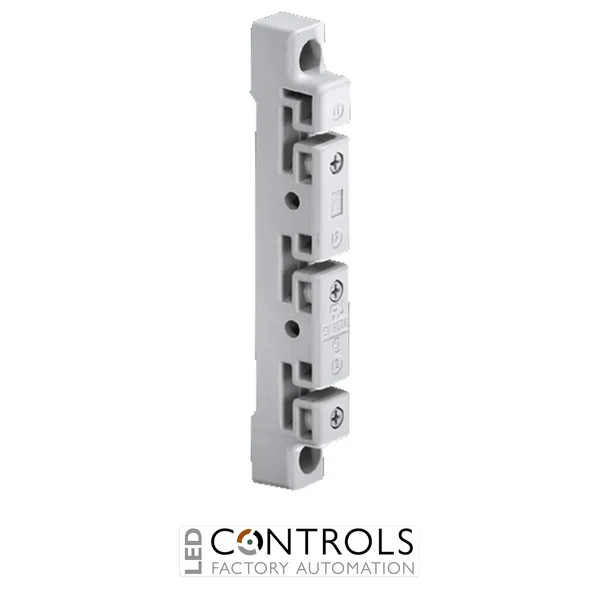

SV9600.000 Rittal Mini-PLS busbar support 3-pole 40mm bar centre distance

SV9600.000 Rittal Mini-PLS busbar support 3-pole 40mm bar centre distance

Rittal SV9600.000 Mini-PLS busbar support, a 3-pole 40 mm bar centre distance support designed for 250 A 690 V AC Mini-PLS power distribution systems.

SKU: SV9600.000Alt SKU: 9600000MPN: SV9600.000
Price
List Price £20.73 ex VAT
Your Price (ex VAT)
£20.73
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £20.73
Trade pricing is personalised to your account

Manufacturer Lead Time

Sold in packs of 4

£20.73

Why Choose the Rittal SV9600.000 Mini-PLS Busbar Support?

The Rittal SV9600.000 is a compact and reliable Mini-PLS busbar support designed for safe installation and insulation of three-phase busbar systems in industrial low-voltage power distribution assemblies. As part of the Rittal SV Mini-PLS power distribution system, it provides secure mechanical support and electrical separation for compact switchgear applications.

This busbar support is designed for 3-pole Mini-PLS busbar systems with 40 mm bar centre distance and enables unrestricted top mounting for simplified installation. Its reinforced polyamide construction provides excellent mechanical stability and reliable insulation performance in demanding industrial environments.

With a rated current capability of 250 A and a 690 V AC rated operating voltage, the SV9600.000 is suitable for compact power distribution systems requiring dependable busbar support and protection.

Key Advantages

  • Compact Mini-PLS busbar support for industrial power distribution.
  • 3-pole design with 40 mm bar centre distance.
  • 250 A rated current capability for compact busbar systems.
  • 690 V AC rated operating voltage for low-voltage applications.
  • Unrestricted top mounting design for flexible installation.
  • High-strength polyamide construction with UL 94-V0 fire protection.

Key Features

  • Rittal SV9600.000 Mini-PLS busbar support.
  • 3-pole busbar support configuration.
  • 40 mm busbar centre distance.
  • Rated current up to 250 A.
  • Rated operating voltage up to 690 V AC.
  • Suitable for Mini-PLS special busbars.
  • Designed for unrestricted top mounting.
  • PA 6.6 polyamide construction reinforced with 30% fibreglass.

Reliable Busbar Support for Industrial Power Distribution

Busbar supports provide essential mechanical stability and electrical insulation within modular power distribution systems. The Rittal SV9600.000 ensures secure positioning of Mini-PLS busbars while maintaining required clearances and insulation performance for safe operation.

Designed for professional panel builders and electrical engineers, this component supports efficient construction of compact switchgear assemblies where reliability, safety and space optimisation are critical.

Typical Applications

  • Industrial low-voltage switchgear assemblies.
  • Compact power distribution panels.
  • Machine control cabinets.
  • Factory automation systems.
  • Energy distribution installations.
  • Mini-PLS busbar systems.

Technical Specifications

Material GRP / Polyester
Accessory Type Busbar System
Manufacturer Rittal
Series SV / Mini-PLS
Model SV9600.000
Product type Mini-PLS busbar support
Number of poles 3-pole
Bar centre distance 40 mm
Rated current 250 A
Rated operating voltage 690 V AC
Frequency 50 / 60 Hz
Mounting type Top mounting
Fire protection UL 94-V0
Colour RAL 7035
Continuous operating temperature 140 °C
Packaging quantity 4 pieces
Net weight approx. 0.212 kg
Gross weight approx. 0.218 kg
EAN 4028177140509

Frequently Asked Questions

What is the Rittal SV9600.000 used for?

The Rittal SV9600.000 is a Mini-PLS busbar support used to mechanically support and electrically insulate three-phase busbar systems.

How many poles does this busbar support have?

The SV9600.000 is designed as a 3-pole busbar support.

What is the bar centre distance?

The busbar support has a 40 mm bar centre distance.

What current rating does the SV9600.000 support?

The SV9600.000 supports Mini-PLS busbar systems up to 250 A.

What mounting method is used?

The SV9600.000 features an unrestricted top mounting design for flexible installation.

Trusted by Industrial Panel Builders Worldwide

Rittal SV Mini-PLS components are widely used by electrical engineers and panel builders to create safe, compact and reliable low-voltage power distribution systems.
