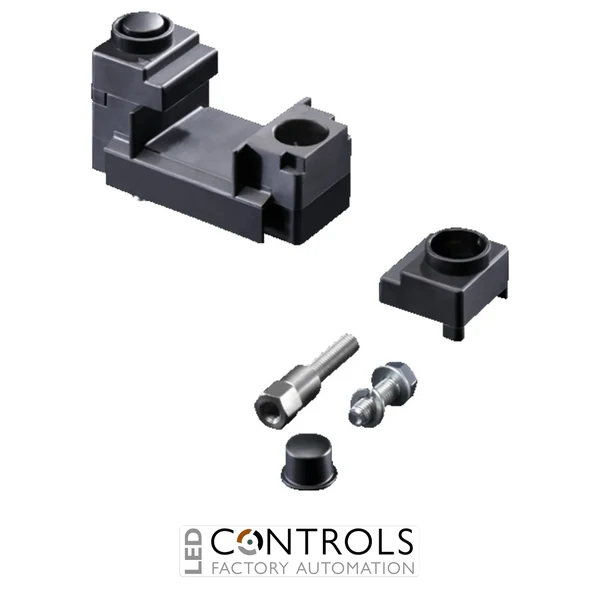

Why Choose the Rittal SV9649.160 Maxi-PLS Busbar Support?
The Rittal SV9649.160 is a robust and reliable Maxi-PLS busbar support designed for secure mounting of high-current busbar systems within industrial switchgear, control cabinets and electrical enclosure assemblies. As part of the Rittal RiLine Maxi-PLS system, it provides a stable mechanical support solution for Maxi-PLS 1600 and Maxi-PLS 2000 busbars.
This busbar support allows Maxi-PLS busbars to be installed by inserting them into the support, providing a reliable mounting arrangement for large-scale power distribution systems. Its design enables efficient enclosure construction while maintaining the required mechanical stability for demanding industrial applications.
Suitable for Maxi-PLS 1600 and Maxi-PLS 2000 systems, the SV9649.160 is manufactured from durable polyamide and provides a compact solution for professional power distribution assemblies.
Key Advantages
- Dedicated busbar support for Rittal Maxi-PLS systems.
- Compatible with Maxi-PLS 1600 and Maxi-PLS 2000 busbars.
- Provides secure mechanical fixing of high-current busbars.
- Suitable for top mounting applications.
- Durable polyamide construction for reliable electrical insulation.
- Compact design for efficient switchgear and enclosure layouts.
Key Features
- Rittal RiLine Maxi-PLS system component.
- Suitable for Maxi-PLS 1600/2000 busbars.
- Top mounting design.
- Busbars installed by inserting into the support.
- Polyamide construction.
- Colour similar to RAL 9011.
- Suitable for industrial low-voltage power distribution systems.
- Supplied as a single support unit.
Reliable Support for High-Current Busbar Systems
Busbar supports provide the mechanical foundation required for safe and reliable industrial power distribution assemblies. The Rittal SV9649.160 helps maintain correct positioning and secure installation of Maxi-PLS busbars inside electrical enclosures.
The Maxi-PLS platform is designed for demanding industrial environments where high current capacity, modular construction and dependable mechanical support are essential for modern switchgear systems.
Typical Applications
- Industrial low-voltage switchgear assemblies.
- High-current power distribution panels.
- Control and automation cabinets.
- Machine building electrical systems.
- OEM electrical enclosures.
- Rittal Ri4Power distribution systems.
