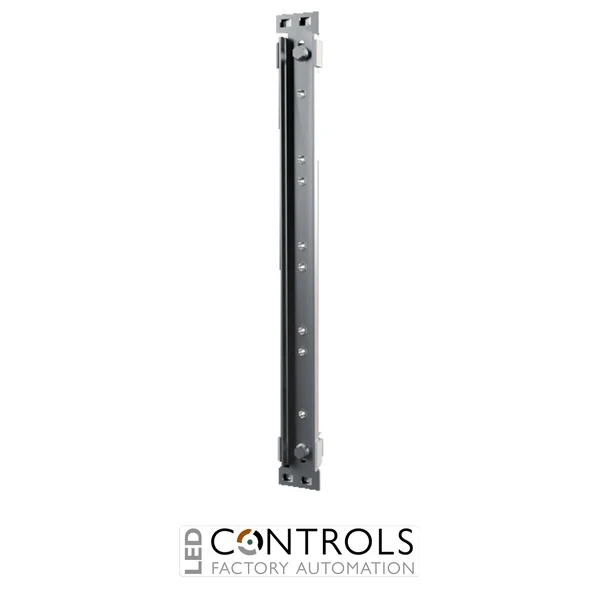

SV9650.100 Rittal System attachment for busbar support 9659000/160 (Maxi-PLS 3200)

Q: Which busbar system is compatible with this attachment?

The SV9650.100 is designed for use with the Rittal Maxi-PLS 3200 system.

Q: What material is the SV9650.100 manufactured from?

The system attachment is manufactured from stainless steel for reliable mechanical support in industrial installations.

Q: Where is the SV9650.100 installed?

The attachment is designed for mounting in the TS 8 enclosure roof or base section with a depth of 600 mm.

Q: How many pieces are supplied in one pack?

The SV9650.100 is supplied as a pack containing 2 pieces.

Rittal SV9650.100 Maxi-PLS system attachment for SV9659000/160 busbar supports designed for Maxi-PLS 3200 power distribution systems with 600 mm enclosure depth.

SKU: SV9650.100Alt SKU: 9650100MPN: SV9650.100

List Price £145.58 ex VAT

Your Price (ex VAT)

£145.58

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £145.58

Trade pricing is personalised to your account

Manufacturer Lead Time

£145.58

Why Choose the Rittal SV9650.100 Maxi-PLS System Attachment?

The Rittal SV9650.100 Maxi-PLS system attachment is a dedicated mounting accessory designed for installing SV9659000/160 busbar supports within Rittal Maxi-PLS 3200 power distribution systems. It provides a secure and reliable mounting solution for integrating high-capacity busbar support assemblies into compatible TS 8 enclosure systems.

Designed for installation in the roof or base section of the enclosure, the SV9650.100 allows busbar supports to be positioned accurately within the electrical assembly. Manufactured from stainless steel, it provides durable mechanical support for demanding industrial power distribution applications.

With a 600 mm enclosure depth compatibility, 150 mm bar centre distance and supplied as a 2 piece pack, the Maxi-PLS system attachment is suitable for professional panel builders creating reliable low-voltage switchgear solutions.

Key Advantages

Designed for Rittal Maxi-PLS 3200 power distribution systems.
Provides secure installation of SV9659000/160 busbar supports.
Manufactured from durable stainless steel.
Suitable for TS 8 enclosure roof and base section mounting.
150 mm bar centre distance supports accurate busbar positioning.
Supplied as a practical 2 piece pack.

Key Features

Rittal Maxi-PLS system attachment.
Compatible with SV9659000/160 busbar supports.
Maxi-PLS 3200 system compatibility.
Stainless steel construction.
Designed for mounting in enclosure roof/base sections.
600 mm enclosure depth compatibility.
Supports modular industrial power distribution assemblies.

Reliable Mounting for Maxi-PLS Power Distribution Systems

The Rittal SV9650.100 system attachment provides the structural connection required for installing Maxi-PLS busbar supports inside industrial electrical enclosures. Its precise design helps maintain correct busbar positioning while supporting the construction of dependable power distribution assemblies.

Used together with compatible Rittal Maxi-PLS components, this accessory enables efficient assembly of scalable switchgear systems for industrial automation, machinery and low-voltage electrical distribution applications.

Typical Applications

Rittal Maxi-PLS 3200 power distribution systems.
TS 8 electrical enclosure installations.
Industrial switchgear assemblies.
Low-voltage power distribution panels.
Machine building control systems.
Industrial automation projects.

Technical Specifications

Material	Stainless Steel
Manufacturer	Rittal
Model	SV9650.100
Product type	System attachment for busbar support
Series	Maxi-PLS
Compatible busbar system	Maxi-PLS 3200
Compatible busbar support	SV9659000/160
Bar centre distance	150 mm
Mounting location	TS 8 roof/base section
Compatible enclosure type	TS 8
Enclosure depth	600 mm
Packaging quantity	2 pcs
Net weight	2.92 kg
Gross weight	3.239 kg
Approvals	UL + C-UL (listed)

Frequently Asked Questions

What is the Rittal SV9650.100 used for?

The SV9650.100 is a system attachment used for installing SV9659000/160 busbar supports in Rittal Maxi-PLS 3200 power distribution systems.

Which busbar system is compatible with this attachment?

The SV9650.100 is designed for use with the Rittal Maxi-PLS 3200 system.

What material is the SV9650.100 manufactured from?

The system attachment is manufactured from stainless steel for reliable mechanical support in industrial installations.

Where is the SV9650.100 installed?

The attachment is designed for mounting in the TS 8 enclosure roof or base section with a depth of 600 mm.

How many pieces are supplied in one pack?

The SV9650.100 is supplied as a pack containing 2 pieces.
