Why Choose the Rittal SV9676.020 Flat-PLS 60 Busbar Support?

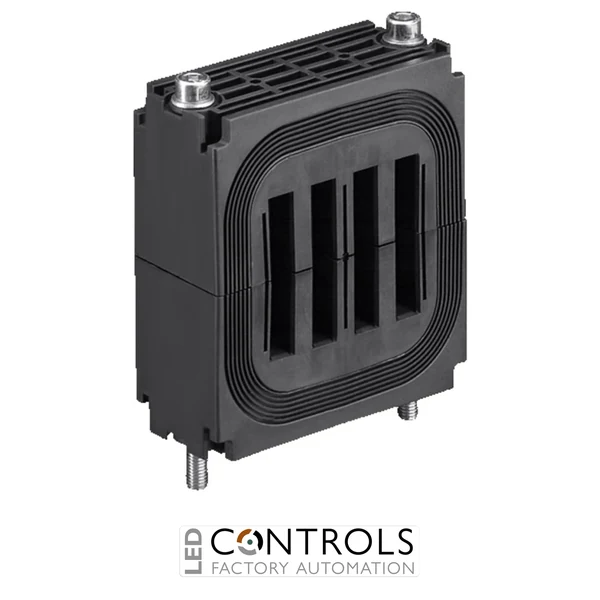

The Rittal SV9676.020 is a busbar support for stabiliser bars designed for the Rittal Flat-PLS 60 busbar system. It is used to configure power distribution systems from flat copper bars where increased short-circuit resistance is required, providing secure mechanical support for demanding industrial switchgear applications.
Designed for 40–60 × 10 mm flat copper busbars, the SV9676.020 can accommodate up to 4 bars. When only one, two or three bars are installed, Rittal specifies that the vacant bar slots should be closed using suitable filler pieces, helping maintain the intended system configuration.
The support is manufactured from durable polyamide with fire protection corresponding to UL 94-V0 and is finished in RAL 9005 black. As part of the coordinated Flat-PLS 60 system, it provides a robust solution for stabilising busbar arrangements in industrial low-voltage distribution assemblies.
Key Advantages
- Purpose-designed stabiliser busbar support for Flat-PLS 60 systems.
- Suitable for 40–60 × 10 mm flat copper busbars.
- Accommodates up to 4 busbars.
- Helps create busbar systems with increased short-circuit resistance.
- Robust polyamide construction for electrical distribution applications.
- Fire protection corresponding to UL 94-V0.
- Integrates with Rittal Flat-PLS 60 stabiliser bars and system components.
Key Features
- Rittal Flat-PLS 60 busbar support.
- Designed specifically for use with a stabiliser bar.
- Suitable for flat copper bars from 40 × 10 mm to 60 × 10 mm.
- Maximum configuration of 4 × 60 × 10 mm busbars.
- 60 mm cross-section class for the Flat-PLS 60 system.
- Manufactured from polyamide.
- Fire behaviour corresponding to UL 94-V0.
- Finished in RAL 9005 black.
- M8 mounting thread.
- 10 Nm rated tightening torque.
Increased Stability for Flat-PLS Busbar Systems
High-current busbar systems require reliable mechanical support, particularly where significant electrodynamic forces may occur during a short circuit. The Rittal SV9676.020 works with the Flat-PLS 60 stabiliser arrangement to provide additional support for flat copper conductors, helping increase the short-circuit resistance of the completed busbar system.
The support accommodates up to four flat copper bars and is suitable for conductor sizes between 40 × 10 mm and 60 × 10 mm. Combined with compatible Rittal stabiliser bars, system attachments and busbar accessories, it forms part of a coordinated solution for constructing robust industrial power distribution assemblies.
Typical Applications
- Rittal Flat-PLS 60 busbar systems.
- Industrial low-voltage switchgear assemblies.
- High-current power distribution systems.
- Busbar installations requiring increased short-circuit resistance.
- Flat copper busbar configurations.
- Industrial distribution cabinets and panels.
- Ri4Power switchgear assemblies.
- OEM switchgear and panel-building applications.
