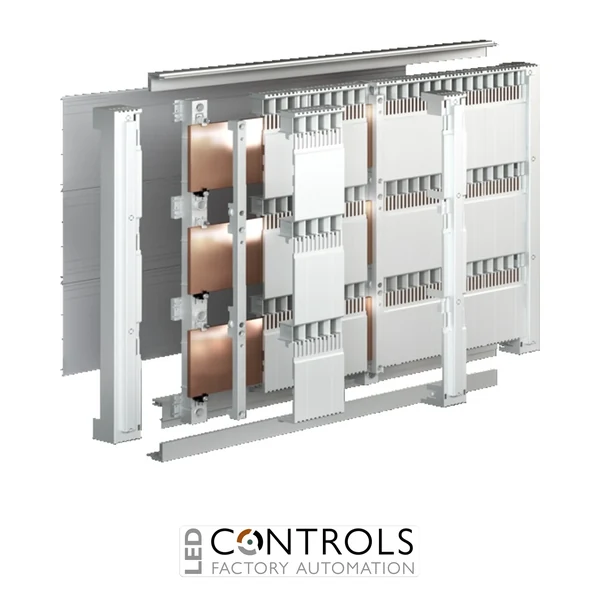

Why Choose the Rittal SV 9677.500 Busbar Support?
The Rittal SV 9677.500 is a robust 3-pole busbar support designed for 185 mm bar centre distance power distribution systems. As part of the Rittal Ri4Power modular busbar system, it provides secure mechanical support and electrical separation for flat copper busbars used in industrial low-voltage switchgear assemblies.
This busbar support is engineered for mounting flat copper bars from 40 × 10 mm to 120 × 10 mm, providing a flexible solution for professional panel builders and electrical engineers. The integrated assembly components for contact hazard protection cover installation help create safe and organised power distribution systems.
Manufactured from durable polyamide with UL 94-V0 fire protection and finished in RAL 7035, the SV 9677.500 delivers reliable insulation and mechanical stability for demanding industrial applications. It supports rated operating voltages up to 1000 V AC and 1500 V DC.
Key Advantages
- 3-pole busbar support for 185 mm bar centre distance systems.
- Suitable for multiple flat copper busbar sizes from 40 × 10 mm to 120 × 10 mm.
- Provides reliable mechanical support and electrical insulation.
- Compatible with Rittal Ri4Power power distribution solutions.
- Includes assembly components for contact hazard protection cover base trays.
- Durable polyamide construction with UL 94-V0 fire protection rating.
Key Features
- Rittal SV 9677.500 busbar support.
- 3-pole configuration with 185 mm bar centre distance.
- Designed for flat copper bars measuring 40/60/80/100/120 × 10 mm.
- Material: Polyamide.
- Fire protection: UL 94-V0.
- Colour: RAL 7035.
- Suitable for AC and DC low-voltage distribution systems.
- Supplied with components for contact hazard protection cover mounting.
Reliable Support for Industrial Power Distribution
Busbar supports are essential components in modular electrical distribution systems, providing accurate positioning, insulation and mechanical stability for copper conductors. The Rittal SV 9677.500 helps create safe and dependable busbar assemblies for industrial switchgear and control panel applications.
Designed for use within Rittal Ri4Power systems, this support component enables flexible configuration of low-voltage distribution assemblies while maintaining professional installation standards and protection requirements.
Typical Applications
- Industrial low-voltage switchgear assemblies.
- Rittal Ri4Power busbar distribution systems.
- Electrical control cabinets and power panels.
- Machine building and OEM electrical installations.
- Industrial automation power distribution systems.
- Energy distribution and switchgear engineering projects.
