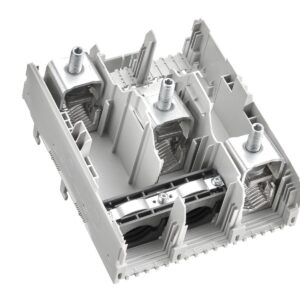

Wöhner 01013 three-pole connection terminal plate for CrossBoard 800 A systems, supporting 95 to 300 mm² copper conductors with top or bottom cable entry and captive screw-clamp terminals.
£100.26
The Wöhner 01013, full part number 01013000A, is a heavy-duty three-pole connection terminal plate designed for secure high-current feeder connections within Wöhner CrossBoard® 800 A power-distribution systems. It provides a robust and space-efficient interface between large copper conductors and the CrossBoard busbar platform.
Suitable for conductor cross-sections from 95 to 300 mm², the Wöhner 01013 uses captive clamping screws to support reliable cable retention and consistent installation. The conductor may be connected from the top or bottom, allowing greater flexibility when routing high-current cables inside switchboards and industrial control panels.
With an IEC rated current of 500 A, a rated operational voltage of 690 V AC and a rated insulation voltage of 1000 V AC, this terminal plate is engineered for demanding industrial power-distribution applications. Clear terminal markings show the nominal conductor cross-section and required tightening torque, helping installers achieve accurate and compliant connections.
The Wöhner 01013 provides a reliable connection point for incoming or outgoing high-current feeder cables on a CrossBoard® 800 A assembly. Its screw-clamp terminals accept large copper conductors and deliver the mechanical strength required for industrial switchgear and power-distribution installations.
Captive clamping screws simplify installation and maintenance, while the clearly marked conductor sizes and tightening torques help reduce assembly errors. The ability to connect cables from either the top or bottom also gives panel builders greater freedom when designing cable routes and enclosure layouts.
| Current | 01013000 A |
|---|---|
| Phase | Three Phase |
| Manufacturer | Wöhner |
| Range | CRITO CrossBoard |
| Model | 01013 |
| Full part number | 01013000A |
| EAN | 4021267010133 |
| Product type | Connection terminal plate |
| Compatible system | CrossBoard® 800 A |
| Number of poles | 3 |
| Rated current IEC | 500 A |
| Rated current UL | 600 A |
| Rated voltage IEC | 690 V AC |
| Rated voltage UL | 600 V AC/DC |
| Rated insulation voltage | 1000 V AC |
| Rated impulse withstand voltage | 6 kV |
| Maximum permitted voltage | 1000 V AC/DC |
| Rated peak withstand current | 80 kA |
| Rated short-time withstand current | 30 kA for 1 second |
| Conductor cross-section | 95 to 300 mm² |
| UL conductor range | 3/0 AWG to 600 kcmil |
| Suitable conductor material | Copper only |
| Terminal type | Screw-clamp connection |
| Screw drive | S8 |
| Wire stripping length | 38 mm |
| Tightening torque | 25 to 26 Nm |
| Connection direction | Top or bottom |
| Front protection rating | IP30 |
| Dimensions | 170.5 x 200 x 118 mm |
| Approximate weight | 1.657 kg |
| Minimum operating temperature | -40°C |
| Material | Halogen-free |
| Standards | IEC 61439-1, IEC 60999-1, IEC 60999-2 and UL 508 |
| HS Code | 85369010 |
| Country of Manufacture | Germany |
The Wöhner 01013 is used to connect large incoming or outgoing copper feeder cables to a Wöhner CrossBoard® 800 A power-distribution system.
It accepts copper conductors with cross-sections from 95 to 300 mm². Under UL requirements, the supported range is approximately 3/0 AWG to 600 kcmil.
The terminal plate has an IEC rated current of 500 A and a UL rated current of 600 A.
Yes. The Wöhner 01013 supports both top and bottom cable connection, providing flexible routing within electrical panels and switchboards.
No. The Wöhner 01013 is designed for copper conductors and is not suitable for aluminium cables.
Wöhner CrossBoard connection products are widely used by panel builders, OEMs and electrical engineers for structured, compact and dependable low-voltage power distribution.
