Flexible laminated copper busbar with 2mm thick insulation, rated for 1777 A and 2 m length. Halogen free and UL approved for feeder circuits above 250V.
£625.34

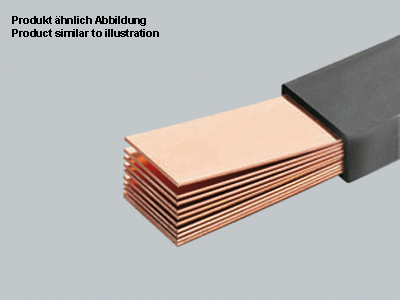

The Wöhner 01061 is a premium flexible laminated copper busbar designed for very high-current industrial power distribution applications. Manufactured from multiple laminated plain copper strips with integrated insulation, it provides a fast, efficient alternative to rigid copper busbars, eliminating the need for specialist bending equipment whilst delivering outstanding electrical performance and installation flexibility.
Featuring a 10 × 80 × 1 mm laminated copper construction, a substantial 800 mm² cross-sectional area and a 2 metre length, the Wöhner 01061 is rated at 1777 A (IEC) and is ideally suited to large switchboards, power distribution equipment, energy systems and OEM machinery requiring dependable high-current connections.
The durable 2 mm halogen-free insulation improves installation safety by removing the need for additional covers in many applications, whilst the flexible laminated construction allows easy routing around equipment without compromising conductivity or reliability.
Unlike conventional rigid copper busbars, laminated flexible busbars consist of multiple thin copper laminations permanently bonded together. This construction significantly reduces bending forces, making installation faster and easier while maintaining excellent electrical conductivity and minimising mechanical stress on terminals and equipment.
The integrated insulation enhances operator safety and simplifies panel construction, making the Wöhner 01061 an ideal choice for modern industrial switchboards, energy distribution systems and high-current electrical installations.
| Item number | 01061 |
|---|---|
| Description | flexible copper busbar, plain, insulated |
| Dimensions (W x H x D) | 84 x 14 x 2000 mm |
| Weight | 1490.0 kg/100 |
| Halogen free | Yes |
| Approval | UL 758 |
| HS Code | 85446010 |
| Country of Manufacture | France |
The Wöhner 01061 is a flexible insulated laminated copper busbar designed for very high-current electrical connections in industrial power distribution systems.
The Wöhner 01061 has an IEC rated current of 1777 A.
The laminated copper conductor has a total cross-sectional area of 800 mm².
No. The factory-fitted 2 mm halogen-free insulation eliminates the need for additional covers in many applications.
The product complies with IEC 61439-1, UL 758 and UL 67 and is suitable for UL feeder circuits above 250 V.
