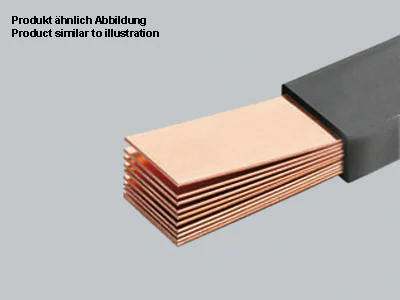

Flexible copper busbar, tin-plated and insulated, designed for efficient electrical connections and protection against aggressive media. Halogen free and UL approved.
£237.73
The Wöhner 01064 is a premium flexible tinned laminated copper busbar engineered for high-current industrial power distribution. Designed as a superior alternative to rigid copper busbars, it combines exceptional electrical conductivity with installation flexibility, making it ideal for switchgear, control panels, motor control centres and OEM electrical equipment.
Manufactured from multiple tin-plated copper laminations with durable halogen-free insulation, the Wöhner 01064 significantly reduces installation time by eliminating the need for specialist busbar bending equipment. The tinned copper construction improves corrosion resistance and minimises preparation work at connection points, making it particularly suitable for demanding industrial environments.
Featuring a 10 × 20 × 1 mm laminated construction, a 200 mm² cross-sectional area, a 2 metre length and an IEC rated current of 640 A, the Wöhner 01064 delivers dependable performance for modern low-voltage power distribution systems.
The Wöhner 01064 uses multiple thin copper laminations to provide excellent flexibility while maintaining a high current-carrying capacity. This construction allows tighter bend radii than conventional solid busbars, reducing mechanical stress on electrical connections and simplifying installation in confined enclosures.
The tin-plated copper finish offers enhanced resistance to oxidation and aggressive industrial environments, ensuring low contact resistance and dependable long-term performance. Integrated insulation further improves safety whilst reducing the need for additional protective components during assembly.
| Item number | 01064 |
|---|---|
| Description | flexible copper busbar, tinned, insulated |
| Dimensions (W x H x D) | 24 x 14 x 2000 mm |
| Weight | 375.0 kg/100 |
| Halogen free | Yes |
| Approval | UL 758 |
| HS Code | 85446010 |
| Country of Manufacture | France |
The Wöhner 01064 is a flexible tinned laminated copper busbar designed for high-current electrical connections in industrial power distribution systems.
The Wöhner 01064 has an IEC rated current of 640 A.
The tin-plated finish improves corrosion resistance, protects against aggressive environments and reduces preparation time when making electrical connections.
The busbar measures 24 × 14 × 2000 mm and has a 200 mm² copper cross-sectional area.
The product complies with IEC 61439-1:2020, UL 758 and UL 67 and is suitable for UL feeder circuits above 250 V.
Wöhner flexible laminated copper busbars are trusted by switchgear manufacturers, panel builders and industrial electrical engineers worldwide for delivering reliable, efficient and space-saving high-current power distribution solutions.{ "@context": "https://schema.org/", "@type": "Product", "name": "Wöhner 01064 Flexible Tinned Laminated Copper Busbar 640 A", "sku": "01064", "mpn": "01064", "brand": { "@type": "Brand", "name": "Wöhner" }, "category": "Busbar Accessories", "description": "Flexible tinned laminated copper busbar with 640 A current rating, 10 × 20 × 1 mm construction, 200 mm² cross-section and 2 metre length.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Current rating", "value": "640 A" }, { "@type": "PropertyValue", "name": "Construction", "value": "10 × 20 × 1 mm" }, { "@type": "PropertyValue", "name": "Cross-sectional area", "value": "200 mm²" }, { "@type": "PropertyValue", "name": "Length", "value": "2 m" }, { "@type": "PropertyValue", "name": "Standards", "value": "IEC 61439-1:2020, UL 758, UL 67" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "mainEntity": [ { "@type": "Question", "name": "What is the Wöhner 01064 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Wöhner 01064 is a flexible tinned laminated copper busbar designed for high-current electrical connections in industrial power distribution systems." } }, { "@type": "Question", "name": "What current is the Wöhner 01064 rated for?", "acceptedAnswer": { "@type": "Answer", "text": "The Wöhner 01064 has an IEC rated current of 640 A." } }, { "@type": "Question", "name": "Why is the copper tin-plated?", "acceptedAnswer": { "@type": "Answer", "text": "The tin-plated finish improves corrosion resistance, protects against aggressive environments and reduces preparation time when making electrical connections." } }, { "@type": "Question", "name": "What are the dimensions of the busbar?", "acceptedAnswer": { "@type": "Answer", "text": "The busbar measures 24 × 14 × 2000 mm and has a 200 mm² copper cross-sectional area." } }, { "@type": "Question", "name": "Which standards does the Wöhner 01064 comply with?", "acceptedAnswer": { "@type": "Answer", "text": "The product complies with IEC 61439-1:2020, UL 758 and UL 67 and is suitable for UL feeder circuits above 250 V." } } ] }
