Brace terminal designed for busbars 30 x 10 mm and section busbars, rated for 1400 A and 600 V AC, compatible with 60Classic and 100Energy systems.
£85.72

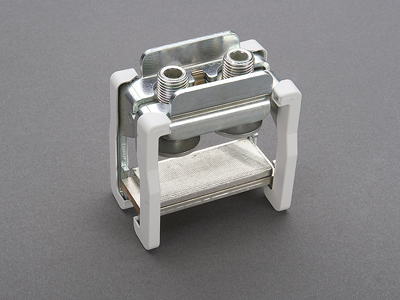

The Wöhner 01070 is a heavy-duty CRITO® brace terminal designed for secure, high-current electrical connections to 30 × 10 mm flat busbars and section busbars. Engineered for industrial switchgear and low-voltage power distribution systems, it provides a robust termination solution for large conductors while ensuring excellent electrical and mechanical performance.
Designed for conductor sizes from 300–1260 mm², the Wöhner 01070 is compatible with the 60Classic, Centre Feed Unit and 100Energy busbar systems. It also supports rigid copper busbars when installed without mechanical tension, offering maximum flexibility for panel builders and OEM manufacturers.
With an IEC rated current of 1600 A, a 690 V AC rated voltage and a generous 68 × 28 mm terminal space, the Wöhner 01070 is ideal for demanding industrial power distribution, energy infrastructure and high-current electrical installations.
The Wöhner 01070 brace terminal is designed to provide secure, low-resistance electrical connections between large conductors and industrial busbar systems. Its robust clamping mechanism delivers consistent contact pressure, ensuring dependable long-term performance even under demanding operating conditions.
The large terminal space accommodates substantial conductors and laminated copper busbars, while compatibility with rigid copper busbars provides additional installation flexibility for modern switchgear and power distribution assemblies.
| Current | 1400 A |
|---|---|
| Item number | 01070 |
| Description | brace terminal |
| Rated current | 1400 A |
| Rated voltage AC | 600 V |
| Rated frequency | 50 / 60 Hz |
| Dimensions (W x H x D) | 85 x 52 x 87 mm |
| Weight | 63.0 kg/100 |
| Halogen free | No |
| Approval | UL 508 |
| HS Code | 85369010 |
| Country of Manufacture | Germany |
The Wöhner 01070 is a heavy-duty brace terminal designed to connect large conductors to 30 × 10 mm flat busbars and section busbars in industrial power distribution systems.
The terminal accepts conductors from 300 mm² to 1260 mm².
The Wöhner 01070 has an IEC rated current of 1600 A.
Yes. Rigid copper busbars can be connected provided they are installed without mechanical tension.
The product complies with IEC 61439-1:2020 and UL 508.
